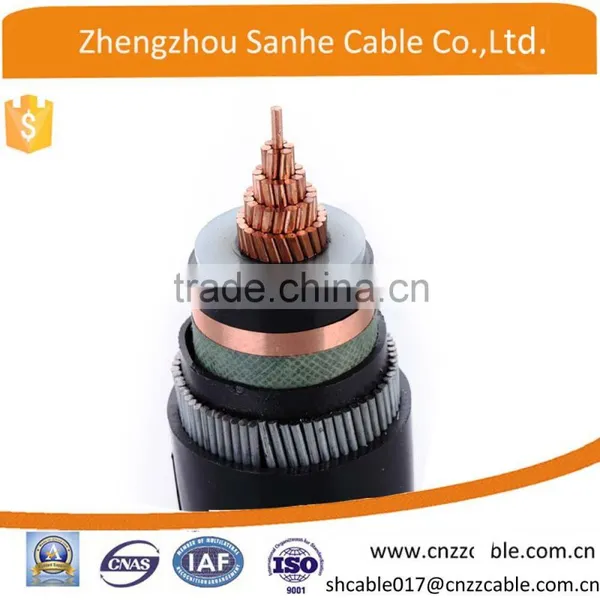

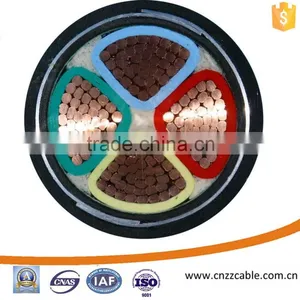

8000 series electric cable/ AVVG cable/copper wire/electric wire/power conductor/ Made in China
PVC/ XLPE insulated cable
The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A.C 50HZ and voltage rating of up to or including 6kV.
1,The long-term permissble operation temperature of conductor shall not be higher than 70℃.
2,Conductor maximum short circuit(not more than 5 seconds) temperature shall not be higher than 160℃.
3,The cable is not limited by drop in level when being laid,and the environment temperature shall not be lower than 0℃.
4,Desctiption
Copper(AL)/PVC/PVC Copper(AL)/XLPE/PVC
Copper(AL)/PVC/SWA/PVC Copper(AL)/XLPE/SWA/PVC
Copper(AL)/PVC/SWT/PVC Copper(AL)/XLPE/SWT/PVC
Copper(AL)/PVC/AWA/PVC Copper(AL)/XLPEAWA/PVC
Copper(AL)/PVC/AWT/PVC Copper(AL)/XLPE/AWT/PVC
A,Nominal Cross-Section Area of Conductor Core
Main core |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
3+1 |
2.5 |
4 |
6 |
10 |
16 |
16 |
25 |
35 |
50 |
70 |
70 |
95 |
120 |
3+2 |
2.5 |
4 |
6 |
10 |
16 |
16 |
25 |
35 |
50 |
70 |
70 |
95 |
120 |
4+1 |
2.5 |
4 |
6 |
10 |
16 |
16 |
25 |
35 |
50 |
70 |
70 |
95 |
120 |
B,DC Resistance of Conductors
|
Nominal Section Area (mm2) |
Conductor resistance at 20℃≤(Ω/km) |
Nominal Section Area (mm2) |
Conductor resistance at 20℃≤(Ω/km) |
||
Copper |
Aluminum |
Copper |
Aluminum |
||
|
4 6 10 16 25 35 |
4.61 3.08 1.83 1.15 0.727 0.524 |
7.41 4.61 3.08 1.91 1.20 0.868 |
50 70 95 120 150 185 |
0.387 0.268 0.193 0.153 0.124 0.0991 |
0.641 0.443 0.320 0.253 0.206 0.164 |
