High Voltage 6/35kv XLPE Insulation PVC Sheathed Power Cable
US$ 0.5 - 1
MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Sanhe, Sanhe
Model Number:
YJV/YJLV
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao pr Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IEC Strandard 0.6/1kv XLPE Insulated Power CableUS$ 0.3 - 0.5MOQ: 5000 Meters -
Single-core XLPE Insulated Al Armoured and Copper Shied Power CableUS$ 0.3 - 20MOQ: 5000 Meters
-
0.6/1kV Covered Line Reckliness Wire/aluminum Conductor Cable 6AWG/4AWG/2AWG, 1/0AWG,2/0AWG,3/0AWGUS$ 1 - 10MOQ: 1000 Meters
-
Aluminum Conductor XLPE Insulation Overhead Electrical ABC Cable 4*95mm2US$ 0.1 - 100MOQ: 500 Meters
-
0.6/1kV 4*120mm2 Copper Conductor Steel Wire Armoured Power Cable CU/XLPE /PVCUS$ 1 - 10MOQ: 500 Meters
Place of Origin
China
Brand Name
Sanhe, Sanhe
Model Number
YJV/YJLV
Insulation Material
XLPE
Type
High Voltage
Application
Construction
Conductor Material
Other, Copper or Aluminum
Jacket
PVC
High Voltage 6/35kv XLPE Insulation PVC Sheathed Power Cable
Product Description
1.Product Strandard:
GB/T 12706.2-12706.3-2002eqv
IEC 60502:1997
2.Usage:
This product is suitable for using rated voltage AC Voltage 6/35kv system transmitting and distributing lines.According to different sheath make ups,they can be used for laying in the air(cable bridegs,indoor wall supports and groove boxes)and in soil(direct burying,cable cenals and pipelines,etc.)
3.Cable Types,Names and Places for Use
| Type | Name | Place for use | |
| CU | AL | ||
| YJV | YJLV | XLPE Insulated,PVC Sheathed power cable | cab be laid in indoor,outdoor,tunnels,cable canala,reinforced concrete pipelines and loose soil. |
| YJV22 | YJLV22 | XLPE Insulated,steel tape armoured and pvc sheathed power cable | laid underground,cable can bear outer machanic force,but should not bear large tractional force. |
| YJV32 | YJLV32 | XLPE Insulated,steel wire armoured and pvc sheathed power cable | laid indoor,tunnels and mines,cable can bear outer mechanic force and fairly large tractional force. |
| YJV42 | YJLV42 | XLPE Insulated,steel wire armoured and pvc sheathed power cable | cable can be laid vertical section, indoor,tunnels and mines. |
4.Cable Scope
| Type | No.of cores | Rated voltage(kv) | |||
| 6/10,8.7/10 | 8.7/15,12/20 | 18/20,21/35,26/35 | |||
| YJV/YJLV32(42) | 1 | 25-630mm2 | 25-400mm2 | 50-500mm2 | cross-section(mm2) |
| YJLV/YJLV32(42) | 1 | 35-630mm2 | 35-300mm2 | 50-630mm2 | |
| YJV22 | 1 | 25-500MM2 | 35-500MM2 | ||
| YJLV22 | 1 | 35-500MM2 | 35-500MM2 | ||
| YJV YJV22 | 3 | 25-300mm2 | 35-300mm2 | 50-300mm2 | |
| YJLV YLV22 | 3 | 35-300mm2 | 35-300mm2 | 50-300mm2 | |
| YJV32 YJLV32 | 3 | 35-300mm2 | 35-300mm2 | 50-300mm2 | |
| YJV42 YJLV42 | 3 | 35-185mm2 | 35-150mm2 | 50-300mm2 |

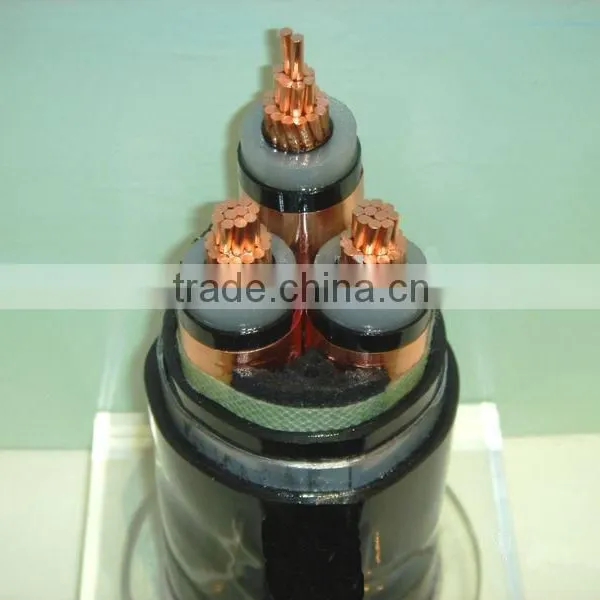

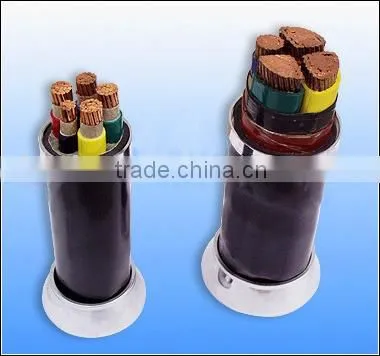

5.Cable product images:
Packaging & Shipping
Packaging:strandard wooden drum
Shipping:by sea normally
