Specifications
1.H05VVH6-F cable2.Iso -9001 quality guarantee
3.Manufacture direct sale,cheap price
4.Small quantity accepted

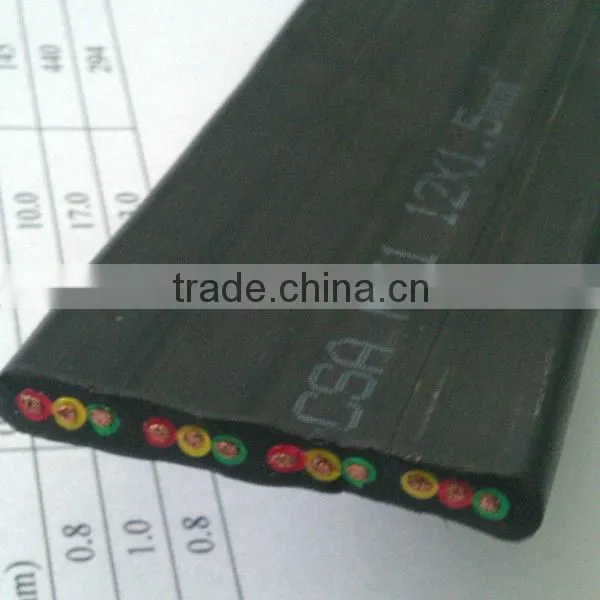

H05VVH6-F cable,power flat cable,PVC flexible cable
Application
H05VVH6-F cables Power and control flat cables can be used on festoon systems on
handling equipments e.g. overhead cranes. Specially designed for indoor and outdoor applications.
Design
1. Conductor : Flexible plain copper class 5
IEC 60228
2. Insulation : PVC, threads are placed in each group of cores to strip the outer sheath.
3. Outer sheath : PVC Colour: black
Cores Identification
in accordance with HD 308 S2
4 cores: black - grey - green/yellow - brown
5 cores: black - grey - green/yellow - brown - blue
>5 cores: black with white printed numbers + green/yellow
Standards
HD 359 S2
IEC 60227 part 6
VDE 0821
Mechanical Properties
| Tensile stress of the conductor | static 15 N/mm2 |
| dynamic 30 N/mm2 | |
| Tests | Bending test |
| Travelling Festoon speed | up to 120 m/min |
Chemical Properties
Oil, acid and alcaline resistant.
For indoor and outdoor applications. Moisture, UV and ozone resistance.
Flame-retardant according to IEC 60 332 part 1.
Electrical and Thermal properties
| Nominal voltage | Uo/U | 350/500 V |
| Maximum operating voltage in AC systems | Um | 500 V |
| Test voltage | 2.5 kV - 50 Hz in AC | |
Max. temperature at the conductor : |
+ 70 °C + 150 °C |
|
| Max. surface temperature : - fixed installation - mobile operation |
- 35 °C up to + 60 °C - 25 °C up to + 60 °C |
|
