BS6724 AWA LSZH Cable IEC 60502 600/1000V

FOB Price

US$ 1.5 - 6 / Meter

500 Meters(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	sanhe
Type	Insulated	Application	Underground
Conductor Material	Copper	Conductor Type	Solid
Insulation Material	Other, XLPE

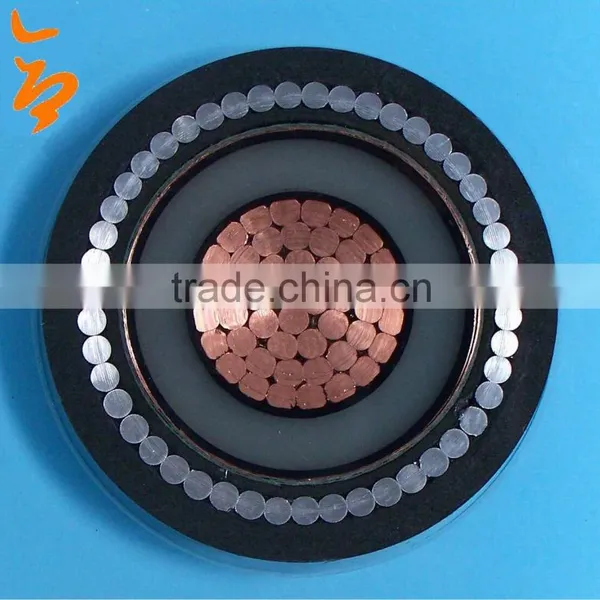

Product Description

Specifications

Conductors: Plain annealed stranded copper
Insulation: XLPE (Cross linked polyethylene)
Bedding: PVC (Polyvinyl-Chloride)

Specification:

1.Applications: Power cable suitable for power networks, direct burial, outdoors, indoors and in cable ducts
2.Conductors: Plain annealed stranded copper
3.Conductor stranding: Class 2 – Stranded circular or circular compacted
4.Conductor identification: Brown
5.Insulation: XLPE (Cross linked polyethylene)
6.Core identification: Brown
7.Bedding: PVC (Polyvinyl-Chloride)
8.Armour/Protection: AWA (Aluminium wire armour) non-magnetic
9.Sheath/Jacket: PVC (Polyvinyl-Chloride)
10.Colour: Black
11.Voltage: 600/1000v
12.Operating temperature Maximum 90°C, Minimum bending 0°C
13.Minimum bending radius: 6 x overall diameter
(Wherever possible, larger installation radius should be used)
14.Standards: BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of
600/1000V and 1900/3300V. IEC 60502: Power cables with extruded insulation and
their accessories for rated voltages from 1kV to 30kV. Flame Propagation Test to BS
EN 60332-1-2 for single cable.

If you are considering installing in high UV exposure and/or high/low ambient
temperatures i.e. desert/arctic conditions then special sheathing may be required

Size Sq.mm	Max Diameter over Conductor mm	RT of Insulation mm	Diameter over core mm	RT of Bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter Over armour mm	Apporx Overall Diameter mm	Weight Kg/km
50	8.90	1.0	10.9	0.8	12.6	0.9	14.5	17.5	708
70	10.70	1.0	12.9	14.6	14.6	1.25	17.1	20.2	970
95	12.60	1.1	14.8	16.4	16.4	1.25	19.0	22.3	1240
120	14.21	1.2	16.7	18.4	18.4	1.25	21.0	24.2	1510
150	15.75	1.4	18.6	20.7	20.7	1.6	24.0	27.4	1930
185	17.64	1.6	20.9	23.0	23.0	1.6	26.3	30.0	2330
240	20.25	1.7	23.8	25.9	25.9	1.6	29.2	32.8	2900
300	22.68	1.8	26.4	28.5	28.5	1.6	31.8	35.6	3530
400	25.65	2.0	29.8	32.3	32.3	2.0	36.4	40.4	4690
500	28.80	2.2	33.3	35.8	35.8	2.0	39.9	44.2	5740
630	32.76	2.4	37.7	40.2	40.2	2.0	44.3	48.8	7150
800	37.05	2.6	42.4	45.3	45.3	2.5	50.4	55.4	9070
1000	41.60	2.8	47.3	50.2	50.2	2.5	55.3	60.6	11120
