Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Control Cable

Control Cable

Name: Control Cable
Brand: Sanhe
SKU: 127854341

US$ 300 - 2,000 MOQ: 3 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Sanhe

Model Number:

cu/pvc/pvc

Contact Supplier Request Quote Chat Now

Zhengzhou Sanhe Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Sanhe

Model Number cu/pvc/pvc

Application Industrial

Conductor Material Copper

Jacket PVC

Insulation Material PVC

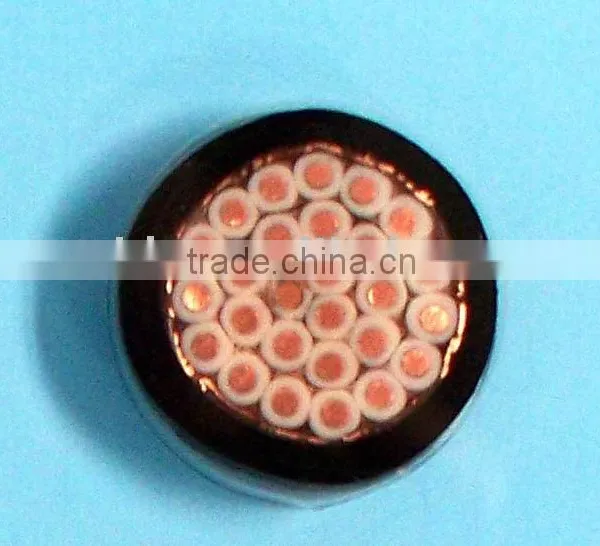

control cable(450/750V copper conductor PVC insulated and sheathed copper wire shielded control cable)

1.Standard

The control cable can be produced according to the standard GB9330-1988,IEC60227(60502),DIN,BS,and the factory can also manufacture the cables in accordance with other standards.

2.Scope of Application

The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

3.Type& Specification(Partly)

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required
KVVRP		1.5 2.5	4-48
KYJV	Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KYJVP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KYJV22	Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
		4 6	4-14
		10	4-10
KYJVP2	Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	4-14
		10	4-10
KYJVR	Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KYJVRP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required
KYJVRP		1.5 2.5	4-48

4.Service Conditions

(1) The long-time working temperature of conductor of PVC insulated cable is 70^oC

The long-time working temperature of conductor of XLPE insulated cable is 90^oC

(2) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D

We are at your service!
