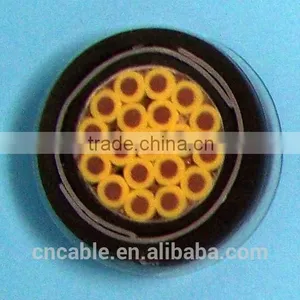

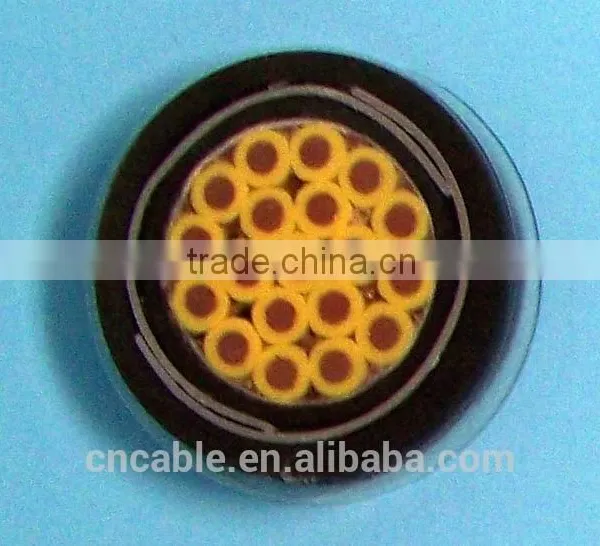

Help CenterCopper Cores Steel-tape Shield Hard Plastic Insulated Flexible Control Cable
Related Products
-
Flame-retardant Steel Tape Wrip PVC Insulated Flexible Control CableUS$ 150 - 5,000MOQ: 5 Kilometers -
XLPE/PVC/PE Insulated PVC Sheathed Flexible Control CableUS$ 100 - 5,000MOQ: 5 Kilometers
-
Construction Copper Plastic Insulated Control CableUS$ 160 - 160MOQ: 5 Kilometers
-
Metal Conductor PE Insulated PVC Sheathed Armored Control CableUS$ 500 - 500MOQ: 5 Kilometers
-
PVC Insulated PVC Sheathed Armored Low Voltage Control CableUS$ 1,200 - 1,200MOQ: 5 Kilometers
This product is suitable for connection of all kinds of electric equipment and instrument in controlling , monitoring and protecting circuits with rated AC . voltage up to 450/750V or below Flame-retardant control cables , fire resistance control cables , low-smoke low halogen or low smoke halogen-free flame retardent control cables and flame-separated flame-retardant control cables are suitable for flame-retadant , fire resistance , low-smoke innocent system.
1. Rated voltage U„/U :450/750V .
2. The max. Long-term permitted operating temperature: 70°c is for PVC insulated cable ; 90°c is for XLPE insulatedcables .
3. Laying temperature of cables should be not less than 0°c .
Type |
Name |
Section Area(mm2) |
No. of Core |
Application Site |
KVV |
Copper Conductor,PVC Insulated and Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP |
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP2 |
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
4-10 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
7-61 |
|||
10 |
4-10 |
|||
KVV22 |
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 |
4-14 |
|||
10 |
4-14 |
|||
KVVR |
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
KVVRP |
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5 2.5 |
4-48 |
|||
KYJV |
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KYJVP |
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KYJV22 |
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVP2 |
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVR |
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
|
KYJVRP
|
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
|
0.5 0.75 1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5 2.5 |
4-48 |
Zhengzhou Sanhe Cable Co.,Ltd. is founded in 2008 . It located in Henan , China .
We specialize in producing and exporting all kinds of wires and cable.
We have professional engineers and advanced technical staff in this line.
We have built favorable bussiness relationship with many customers from different markents .
We product the wire and cable according to many standards such as : GB,IEC,ASTM,DIN,JIS,NF,BS,AS/NZS.
Trade$Market
Our Office
Our factory
Our Exhibition
Packing
Shiping
No. 1, —— How do your products quality? —— Our products are carried out 100% inspection .
No. 2, —— What should we do , if the Product problems occur after we use it ?
—— We have 12 months quality guarantee after delivery .
No. 3, —— What about your company type ? —— manufacturer .
No.4, —— What about your company's engineer ?
—— We have chief engineer over 26 years experience about cables .
