8000 Alloy or AL or CU XLPE Concentrico Cable /concentric Cable

8000 Alloy or AL or CU XLPE concentric screen cable

pecifications

ASTM B801 600volt  ul 854

 Specifications

The concentric cable is mainly used in dry and wet places, directly buried or outdoors.

Concentric power cable

1.)Applications

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.

This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90 ºC and its voltage of service for all the applications is 600 V.

2.)Reference Standards of Concentric cable

ASTM IEC  BS and so on

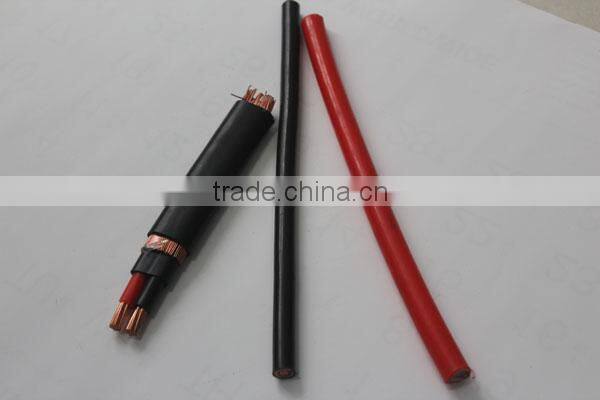

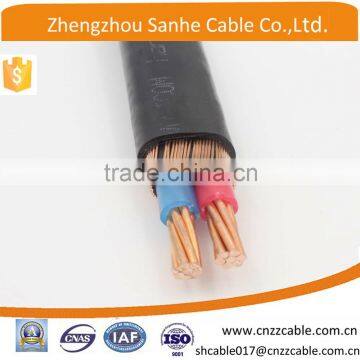

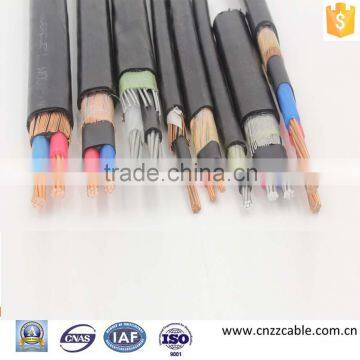

3.)Construction of concentric cable

1.Solid or stranded aluminium conductor or copper or 8000 aluminum

2.Insulation with XLPE or PE or PVC

3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,

4.For three or four conductors cable , parallel conductor or stranded conductor

5.PVC filler

6.Helical mesh of copper wires

7. Wrapping tape

8.Black color jacket of PE or PVC

Other special characteristics: design and manufacture according to customer's requirement

1 x 16 mm²   Stranded Aluminum Concentrique /Concentric Cable

 ASTM B801 copper or aluminum concentric cable

  2. Application

The products can be produce according to the standard IEC 60502. Our factory can also design and manufacture special XLPE cable according to the other standards required by the customers’. They not only have excellent electric conductivity mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90°C. It is convenient for using and they can be laid with no restriction of different elevation.

 3. Technical Data for your reference
