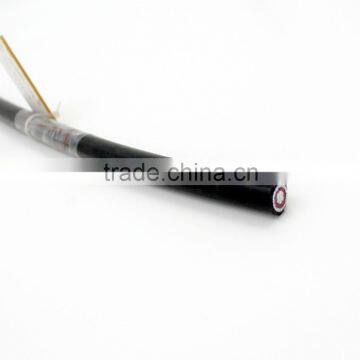

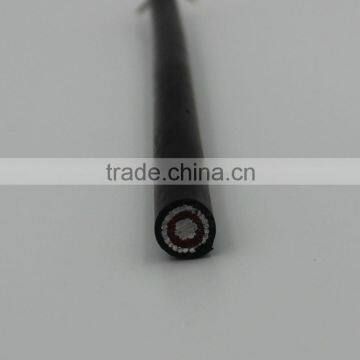

Aluminum Concentric Cable for power system LV
- 5000 Kilometer / Kilometers per Month
- qingdao
- T/T Credit Card
Product Details
| Place of Origin: | Henan, China | Brand Name: | sanhe | Model Number: | concentric cable |
Product Description
Specifications
2.the first concentric cable manufactudrer in Henan Province.
3.supplier of electric power bureau.
Concentric cable
Conductor : copper or aluminum
Insualtion: PVC
Jacket : PVC
Zhengzhou Sanhe Cable is the first cable manuacturer who can produce concentric cables in Henan province.
ASTM 600/1000v | |||||||||
Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||
Conductor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | XLPE | Single wire | UV-PVC | ||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||
1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 |
1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 |
1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 |
1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 |
1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC 60502-1 IEC 60228 600/1000v | |||||||||
Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||
Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | Dia. | PVC | Single wire | UV-PVC | |||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||
10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 |
16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 |
|
|
|
|
|
|
|
|
|
|
16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 |
35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 |
|
|
|
|
|
|
|
|
|
|
