Hi friends, glad to introduce " concentric cable ".
If you have any question, pls don't hesitate to contact with us.
We are all here waiting for you.
Applications:
The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.
Standards of concentric able:
ASTM IEC BS and so on

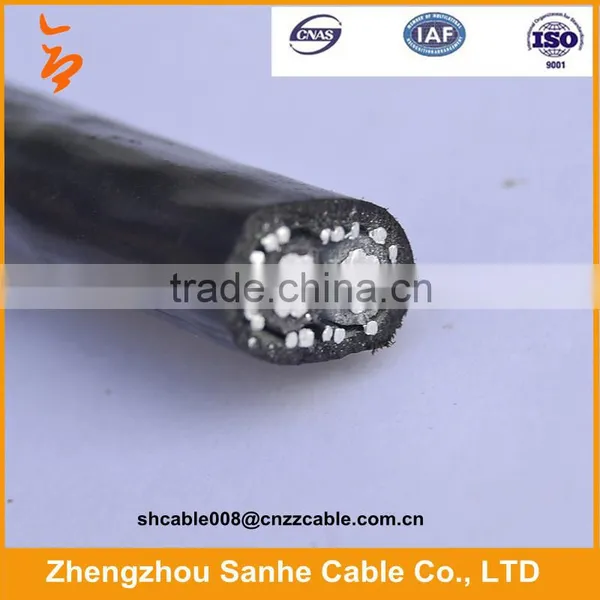

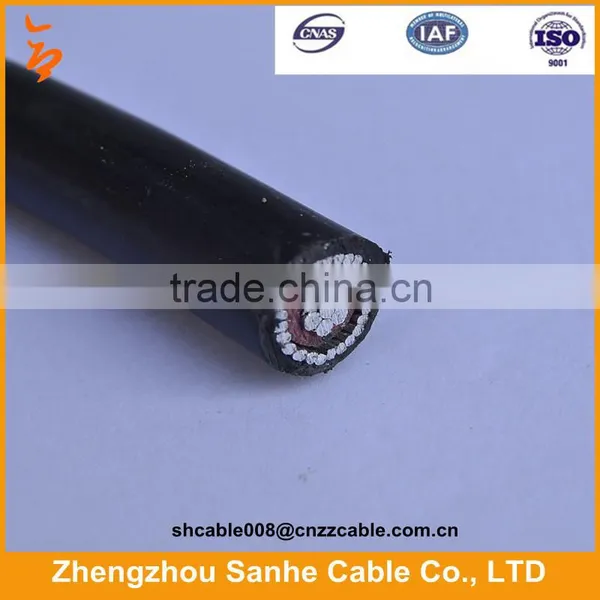

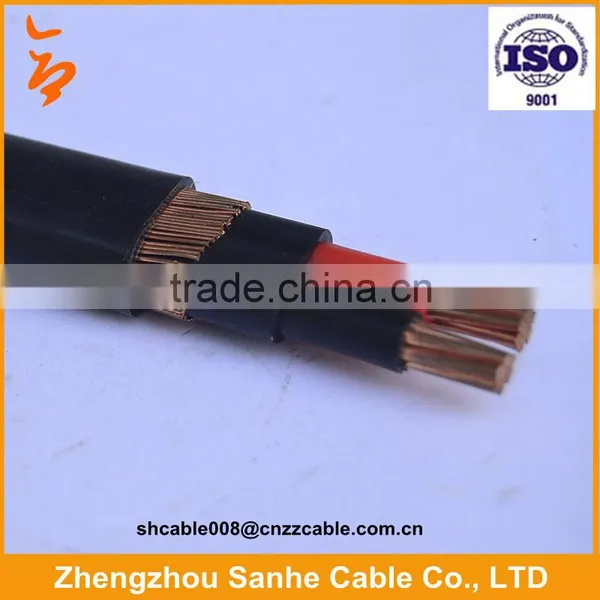

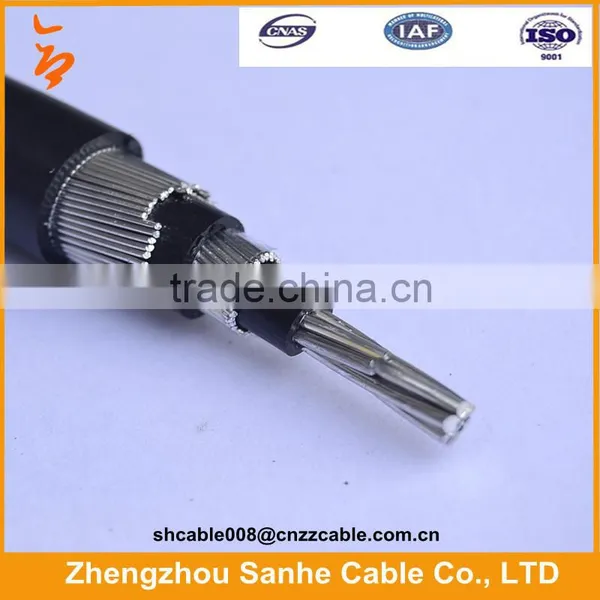

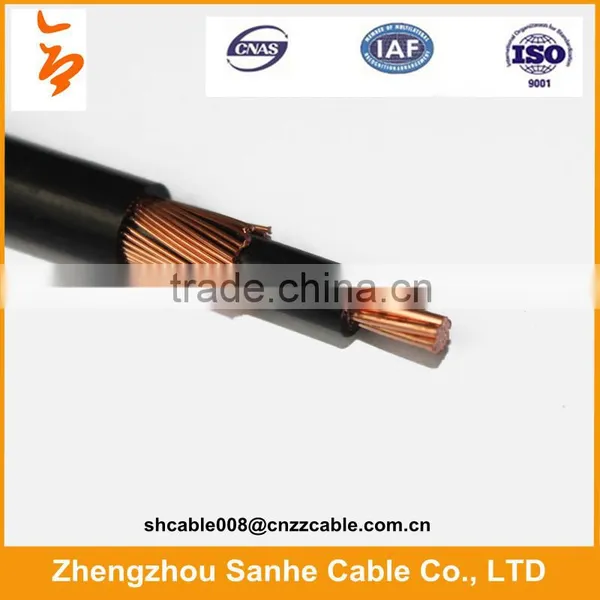

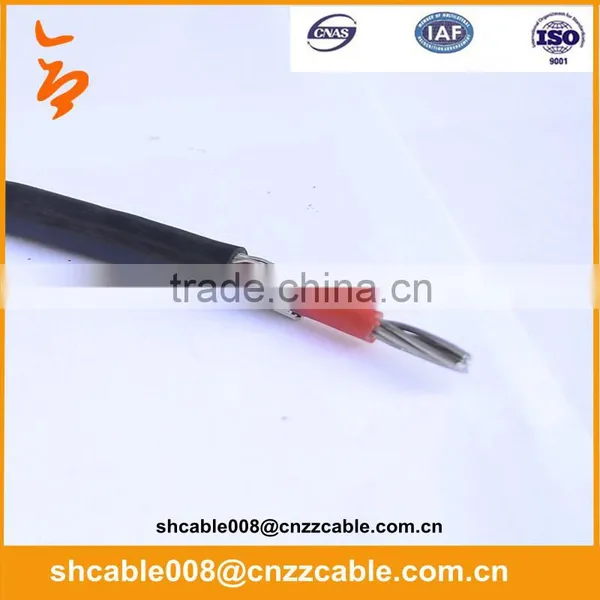

Construction of concentric cable:
1.Solid or stranded aluminium conductor
2.Insulation with XLPE or PE or PVC
3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,
4.For three or four conductors cable , parallel conductor or stranded conductor
5.PVC filler
6.Helical mesh of copper wires
7. Wrapping tape
8.Black color jacket of PE or PVC
Voltage: 600/1000v
Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 70°C

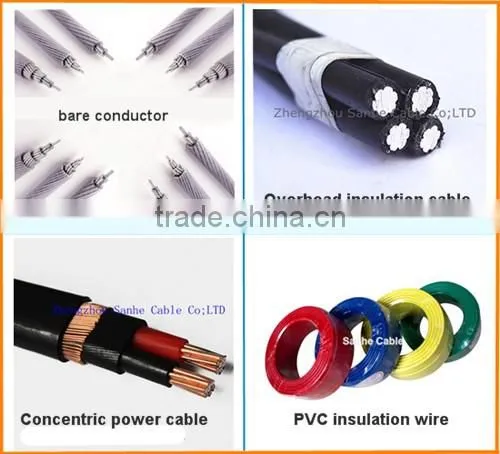

Bare conductor: AAC, AAAC, ACSR, ACAR cable;
ABC cable: duplex,triplex, quardruplex service drop;
Concentric cable: aluminum or copper conductor, one/ two/ multi-core optional;
PVC insulation wire: solid or flexible copper conductor wire;
Power cable: PVC/ XLPE insulated armoured/ non-armoured PVC sheathed, etc.
Friends, if any interest, pls feel free to contact us.
Your most sincere friend Balina is always here waiting for you.
