Help CenterGalvanized Steel ACSR Conductor for Transmission Line
Related Products
-
Selling ACSR Overhead Good Quality CableUS$ 0.2 - 20MOQ: 5000 Meters -
ACSR Bare Panther ConductorUS$ 0.2 - 25MOQ: 5000 Meters
-
ACSR With Compacted Bare ConductorUS$ 0.2 - 20MOQ: 5000 Meters
-
High Voltage Mole ACSR ConductorUS$ 0.2 - 3.6MOQ: 100 Meters
-
Non-insulated Manufactur of Overhead Standard ACSR ConductorUS$ 0.3 - 30MOQ: 5000 Meters
Specifications
ACSR IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182,JIS C3110.We have attained ISO9001 & ISO14001 certification
Certificate:ISO 9001:2000 ISO 14001:2004
Standard:IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182, JIS C3110, NF C34-120,GB/T 1179-2008
Brief Description:
ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).
ACSR CONDUCTOR is available in a wide range of steel varying from as low as 6% to as high as 40 %.
The higher strength ACSR CONDUCTORS are used for river crossings, overhead ground wires,
installations involving extra long spans etc.. Against any given resistance of conductor,
Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR CONDUTOR offers optimal strength for line design. Variable steel core stranding enables
desired strength to be achieved without sacrificing ampacity. ACSR CONDUTORS are used extensively
for overhead ground wires, river crossings etc. These ACSR CONDUTORS are available with us in
various types for meeting the exact requirements of the clients.
Features :
a.High tensile strength b.Long life
c.Light in weigh d.Suitable for high as well as extra high overhead voltage lines

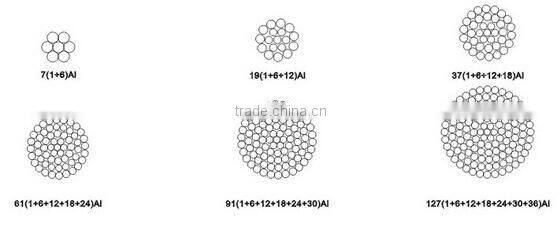

Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded about a steel core.
Core wire for ACSR is available with class A, B,or C galvanizing;
"aluminized" aluminum coated (AZ); or aluminum-clad (AW).
Additional corrosion protection is available through the application of grease to
the core or infusion of the complete cable with grease.
| Size | stranding & wire diameter | Approximate overall diameter | Approximate wight | ||||
| Aluminum | steel | ||||||
| Cmils or AWG | mm2 | Number | mm | Number | mm | mm | Kg/km |
| 3/0 | 85.14 | 6 | 4.25 | 1 | 4.25 | 12.75 | 344.6 |
| 4/0 | 107.2 | 6 | 4.77 | 1 | 4.77 | 14.31 | 434 |
| 1/0 | 53.52 | 6 | 3.37 | 1 | 3.37 | 10.11 | 216.6 |
| 2/0 | 67.32 | 6 | 3.78 | 1 | 3.78 | 11.34 | 272.6 |
| 2 | 33.59 | 6 | 2.67 | 1 | 2.67 | 8.01 | 136 |
| 477000 | 241.65 | 26 | 3.44 | 7 | 2.67 | 21.77 | 975.2 |
| 477000 | 241.27 | 30 | 3.2 | 7 | 3.2 | 22.4 | 1108.1 |
| 795000 | 402.56 | 26 | 4.44 | 7 | 3.45 | 28.11 | 1625.6 |
| 79500 | 402.33 | 24 | 4.62 | 7 | 3.08 | 27.72 | 1520.9 |
Zhengzhou Sanhe Cable Co.,Ltd. It was founded in 2008, which is a professional manufacturer and expoarter of cables for about 8 years, serving overseas clients only.
We have the mature technology,rich experience, good engineers, and establish business relationship with customers all over the world with good quality. Thay are from Asia, Middle East, Latin-America, etc.
We main products, including AAC, AAAC, ACSR, ABC Conductor, Concentric cable,PVC/XLPE/PE insulated Wire,Power cable
and so on.
