Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > ACAR Aluminum Alloy Conductor 12/7 250MCM ASTM B524

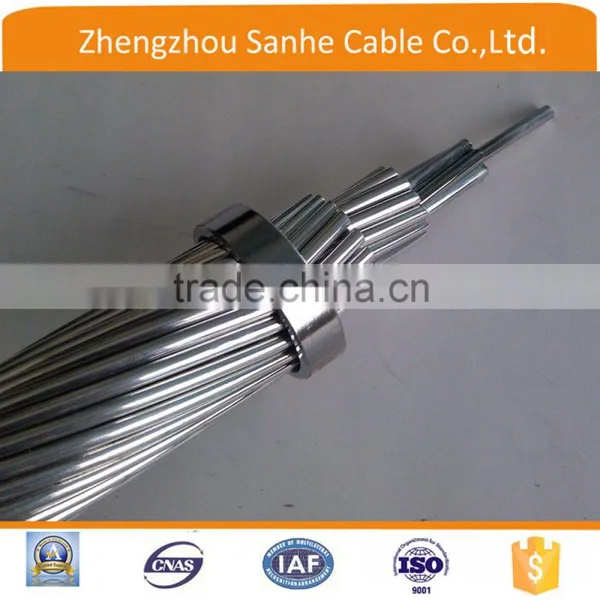

ACAR Aluminum Alloy Conductor 12/7 250MCM ASTM B524

US$ 0.1 - 100 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

OEM

Model Number:

ACAR

Contact Supplier Request Quote Chat Now

Zhengzhou Sanhe Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name OEM

Model Number ACAR

Insulation Material Other, none

Type Other, Low Voltage, ACAR

Application Overhead

Conductor Material Other, Aluminum, Aluminum Aaac Acsr Aac

Jacket Other, none

Product Description

The products is widely used in the overhead power distribution system of the country, and it is one of the main products for forming electrified wire network,

Standard :

ASTM B 524. IEC61089

Size KCMIL/ AWG	Stranding and wire diameter			Overal Diameter	Area	wire diameter	Overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Rated tensile strength
	1350-H19	6201-T81		Overal Diameter	Area	wire diameter	Overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Rated tensile strength
	No./inch			inch	mm2	mm	mm	kg/km	ohm/km	kN
250	12*0.1147		7*0.1147	0.574	127	2.913	14.56	350	0.24	27.5
300	12*0.1257		7*0.1257	0.629	152	3.193	15.96	420	0.2	32.75
350	12*0.1357		7*0.1357	0.679	177	3.447	17.24	490	0.172	37.35
400	12*0.1451		7*0.1451	0.726	203	3.685	18.44	560	0.135	42.3
450	12*0.1539		7*0.1539	0.77	228	3.903	19.55	630	0.133	47.1
500	18*0.1162		19*0.1162	0.813	253	2.951	20.65	700	0.123	58.6
550	18*0.1219		19*0.1219	0.853	279	2.951	21.66	770	0.111	63.95
600	18*0.1273		19*0.1273	0.891	30	3.23	22.63	840	0.102	70.2
650	18*0.1325		19*0.1325	0.928	329	3.36	23.5	910	0.095	76
700	18*0.1357		19*0.1357	0.963	355	3.49	24.46	980	0.088	79.5
750	18*0.1424		19*0.1424	0.997	380	3.62	25.32	1050	0.082	84.4

Functions

1.Applications

Conductor(AAC,AAAC and ACSR, ACAR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

2.Service Performance

(1).The permissible long-time operating temperature for aerial conductor is 70^oC.

(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4).Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.

3.Material Standard

(1).The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2).The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.

(3).Production can be arranged according to customers requirements for material standard,etc.

Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced
