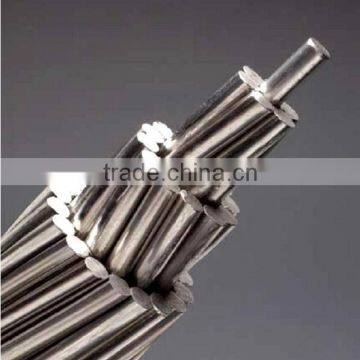

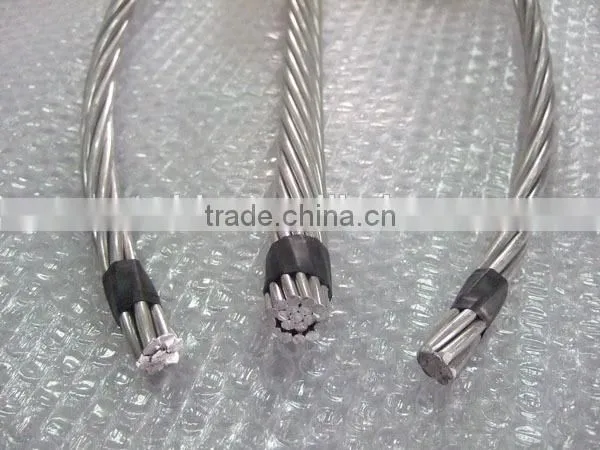

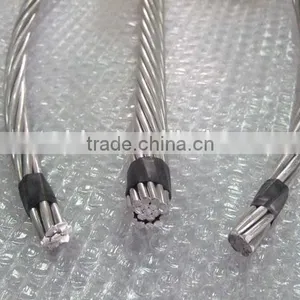

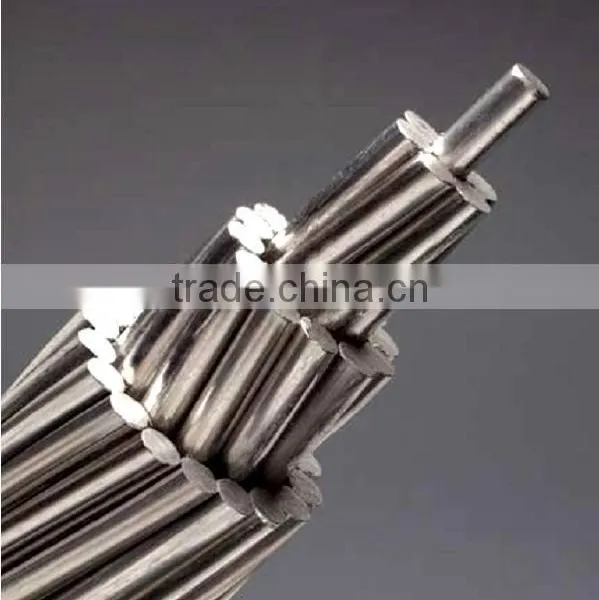

AAC /ASC Fly Conductor Bare Aluminum Wire

Name: AAC /ASC Fly Conductor Bare Aluminum Wire
Brand: Sanhe/OEM
SKU: 127848895
Availability: InStock

AAC /ASC Fly Conductor Bare Aluminum Wire thumbnail-1

AAC /ASC Fly Conductor Bare Aluminum Wire thumbnail-2

AAC /ASC Fly Conductor Bare Aluminum Wire photo-1

AAC /ASC Fly Conductor Bare Aluminum Wire photo-2

US$ 0.9 - 13.1 MOQ: 5 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Sanhe/OEM

Model Number:

AAC /ASC fly conductor bare aluminum wire

Contact Supplier Request Quote Chat Now

Zhengzhou Sanhe Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin or your request

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Sanhe/OEM

Model Number AAC /ASC fly conductor bare aluminum wire

Insulation Material Other, none

Type Low Voltage

Application Overhead

Conductor Material Aluminum

Jacket Other, none

Specifications

AAC /ASC fly conductor bare aluminum wire
best serive for you
factory direct sales
small order can be accepted

Product Description

AAC /ASC fly conductor bare aluminum wire have been widely used in power transmission lines with various voltage levels,because it have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And it is also suitable for laying across rivers valleys and the places where special geographical features exist.

Features:

1. Under the same weight, AAC is with higher DC resistance and lower cost than copper conductor.

2. AAC conductor has been widely used in power transmission lines with various voltage levels, because it has such good characteristics as simple, convenient installation and maintenance, low cost, and large transmission capacity. Moreover, it is also suitable for laying across rivers, valleys and the places where special geographical features exist.

Specification

Code Name	Nominal Aluminum Area	Stranding and Wire Diameter	Sectional Area	Approximate Overall Diameter	Linear Mass	Calculate Breaking Load


	MM²	MM	MM²	MM	kg/km	daM
Midge	22	7/2.06	23.33	6.18	64	399
Aphis	25	7/2.35	26.4	7.2	73	411
Gnat	25	7/2.21	26.8	6.6	73	459
Weevil	30	3/3.36	31.6	7.9	86	486
Mosquito	35	7/2.59	37.0	7.8	101	603
Ladybird	40	7/2.79	42.8	8.37	118	728
Ant	50	7/3.10	52.83	9.30	145	828
Fly	60	7/3.40	63.55	10.20	174	990
Bluebottle	70	7/3.66	73.7	11.0	202	1134
Earwig	75	7/3.78	78.5	11.4	215	1194
Grasshopper	80	7/3.91	84.1	11.7	230	1278
Clegg	90	7/4.17	95.6	12.5	262	1453
Wasp	100	7/4.39	106.0	13.17	290	1600
Beetle	100	19/2.67	106.0	13.4	293	1742
Bee	125	7/4.90	132.0	14.7	361	1994
Cricket	150	7/5.36	157.9	16.1	432	2385
Homet	150	19/3.25	157.6	16.25	434	2570
Caterpillar	175	19/3.53	186	17.7	512	2863
Chafer	200	19/3.78	213.2	18.90	587	3240
Spider	225	19/3.99	236.9	20.0	652	3601
Cockroach	250	19/4.22	265.7	21.10	731	4040
Butterfly	300	19/4.65	322.7	23.25	888	4875
Moth	350	19/5.00	373.2	25.0	1027	5637
Drone	350	37/3.58	373.3	25.1	1029	5745
Locust	400	19/5.36	428.5	26.8	1179	6473

Detailed Image

Packaging & Shipping

workshop

FAQ

Are your company a factory?

Yes, we are a manufacture with rich experience. Our facory are located in zhengzhou,henan province, the center of China. And the transportation is convenient .
