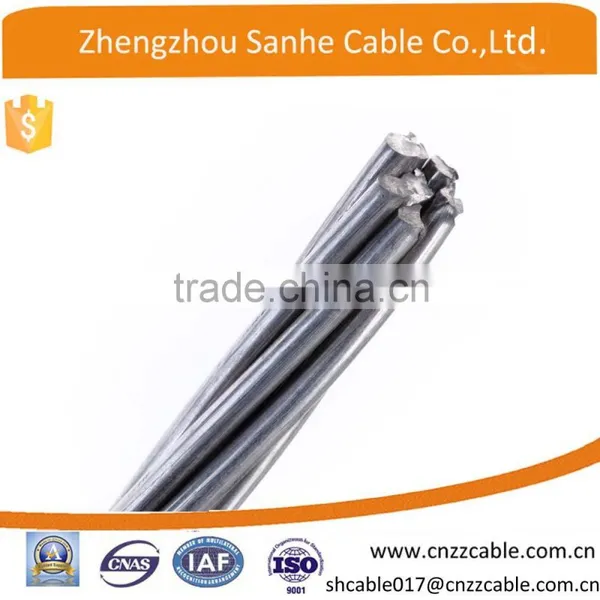

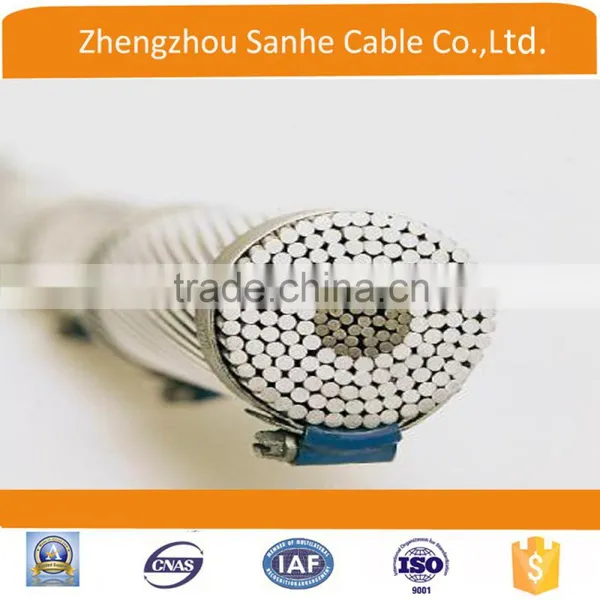

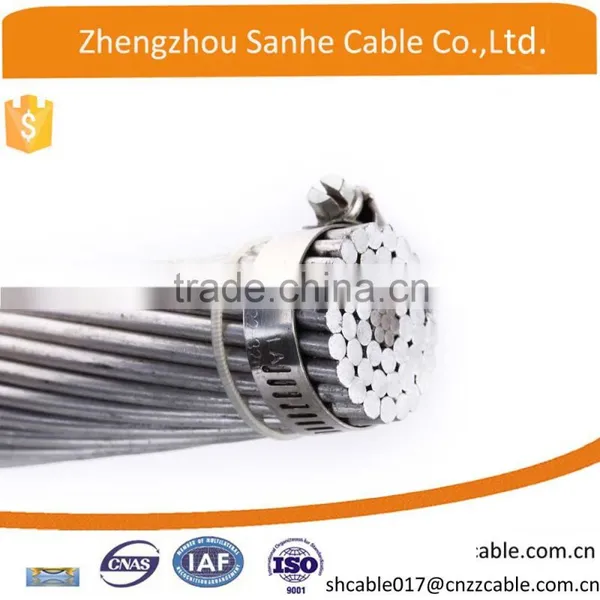

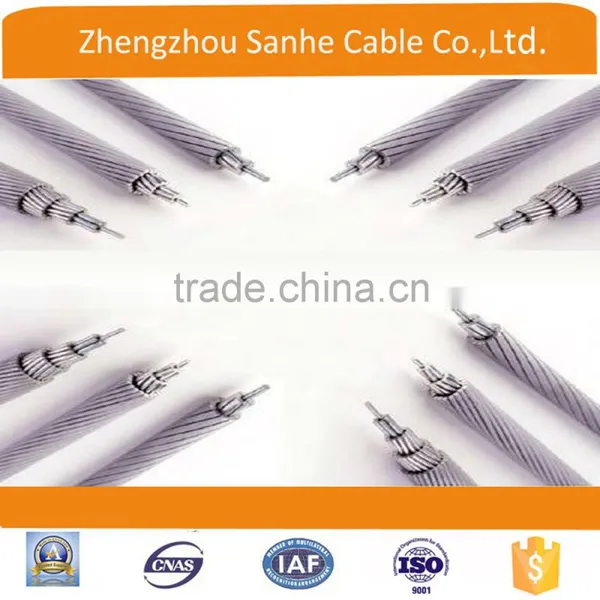

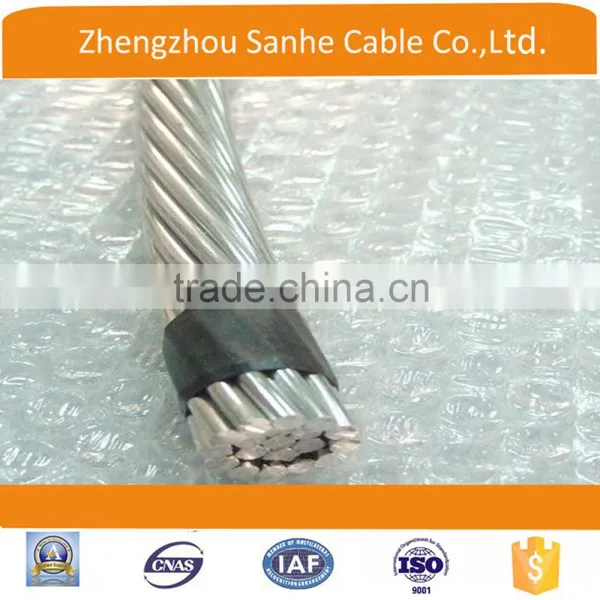

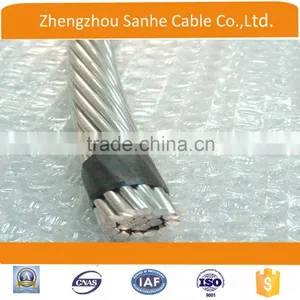

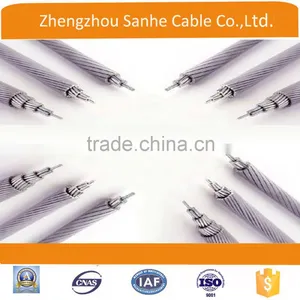

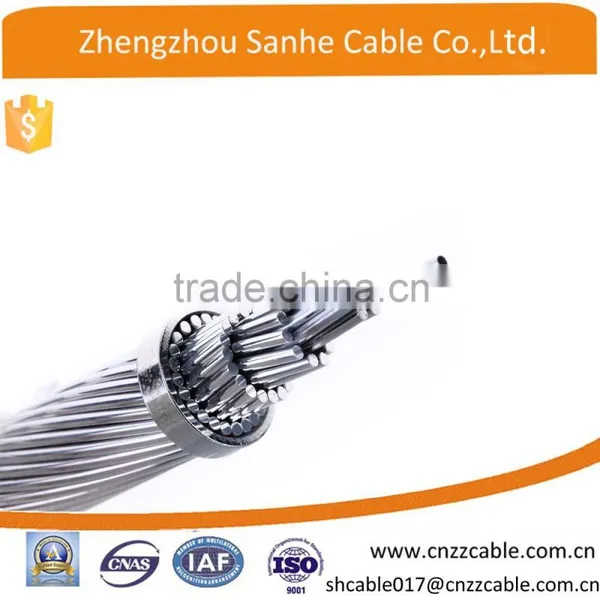

conductor aleacion aluminio1350 H19 calibre # 1/0 AWG,desnudo,Poppy AAC
Product Description
Overhead line Conductor--AAC
Standard: DIN 48201 NIS231 BS215 PART 1:1970
Specification: aac are composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.
Application:
*AAC are used in overhead power transmission and distribution lines with various grade voltages.
*Under the same weight,AAC is with higher DC resistance and lower costthan copper conductor.
*Aluminum is light and is easy to lay.
Manufacturing Standard: ASTM B231 B232, BS 215 , DIN 48201, CSA C49,NFC 34120
We can also manufacture AAC Cable according to customers special requirements.
Stranded 1350 aluminum conductors shown in this section of data are classified, as follows:
Class AA |
For bare conductors usually used in overhead lines. |
Class A |
For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required. |
Class B |
For conductors to be insulated with various materials and for conductors indicated under Class A where greater flexibility is required. |
Class C |
For conductors where greater flexibility is required |
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Note: Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible
AAC bare conductors meet or exceed the following ASTM specifications:
B-230 Aluminum Wire, 1350-H119 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors concentrically stranded.
AAC Technical Characteristics Based on Standard DIN 48201 / DIN EN50182
Technical Characteristics Based on Standard BS 215-1 | |||||||
Code name |
Nominal aluminium area |
Stranding and wire diameter |
Sectional area |
Approx. overall diameter |
Approx. mass |
Calculated D.C. resistance at 20oC |
Calculated breaking load |
mm2 |
No./mm |
mm2 |
mm |
kg/km |
Ω/km |
kN |
|
MIDGE |
22 |
7/2.06 |
23.33 |
6.18 |
64 |
1.227 |
3.99 |
ANT |
50 |
7/3.10 |
52.83 |
9.3 |
145 |
0.5419 |
8.28 |
FLY |
60 |
7/3.40 |
63.55 |
10.2 |
174 |
0.4505 |
9.9 |
WASP |
100 |
7/4.39 |
106 |
13.17 |
290 |
0.2702 |
16 |
HORNET |
150 |
19/3.25 |
157.6 |
16.25 |
434 |
0.1825 |
25.7 |
CHAFER |
200 |
19/3.78 |
213.2 |
18.9 |
587 |
0.1349 |
32.4 |
COCKROACH |
250 |
19/4.22 |
265.7 |
21.1 |
731 |
0.1083 |
40.4 |
BUTTERFLY |
300 |
19/4.65 |
322.7 |
23.25 |
888 |
0.08916 |
48.75 |
