Bare Conductor (AAC) All Aluminum Conductor 10mm2 IEC Strandard

FOB Price

US$ 10 - 15 / Meter

5000 Meters(Min. Order)

Port Qingdao or Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Sanhe
Model Number	AAC	Type	Bare
Application	Overhead	Conductor Material	Aluminum
Conductor Type	Stranded	Insulation Material	Other, none

Product Description

IEC Strandard AAC(All Aluminum Conductor) Bare Conductor

1.Brief descriptions:

conductor:aluminum

insulation:none

voltage:high volt

strandard:IEC 61089

2.Functions:

The products are widely used inthe overhead power distribution system of our country and it is one of the main products for forming electrified wire network.

3.Name and types:

Names	Descriptions	Types
AAC	All Aluminum Conductor	JL
AAAC	ALL Aluminum Alloy Conductor	JLHA1,JLHA2
ACSR	Aluminum Conductor Steel Reinforced	JL/G1A,JL/G2B,JL/G2A,JL/G2B,JL/G3A

4.Technical Parameter:

Nominal	Stranding	Wire Diameter	Overall Diameter	Total Area	Approximate Weight	Breaking Load	DC Resistance at 20℃
mm2	No.	mm	mm	mm2	kg/km	KN
10	7	1.35	4.05	10.0	27.6	1.95	2.8633
16	7	1.71	5.13	16.1	44.2	3.04	1.7896
25	7	2.13	6.39	24.9	68.6	4.50	1.1453
40	7	2.70	8.10	40.1	110.3	6.80	0.7158
63	7	3.39	10.17	63.2	173.9	10.39	0.4545
100	19	2.59	12.95	100.1	275.5	17.00	0.2877

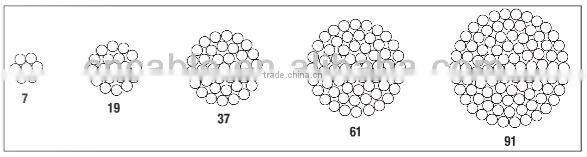

5.Product structure:

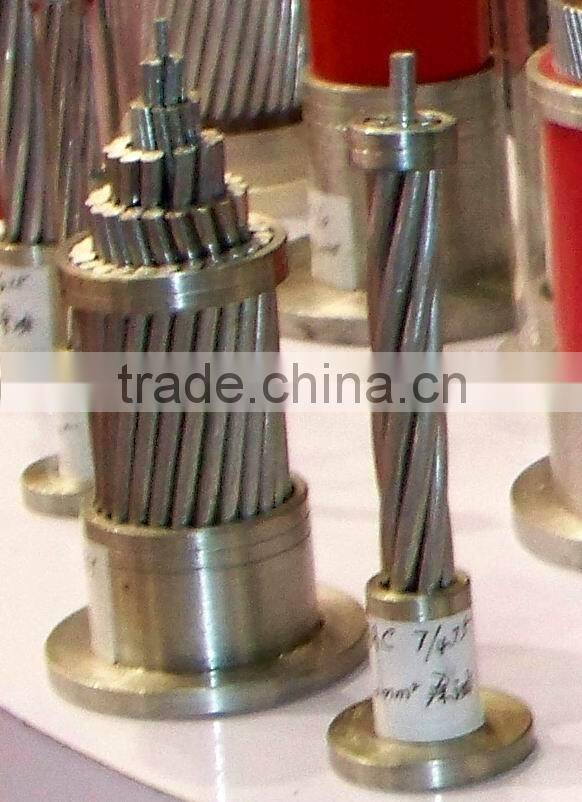

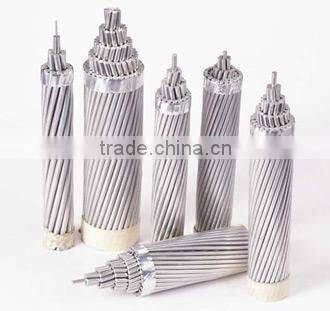

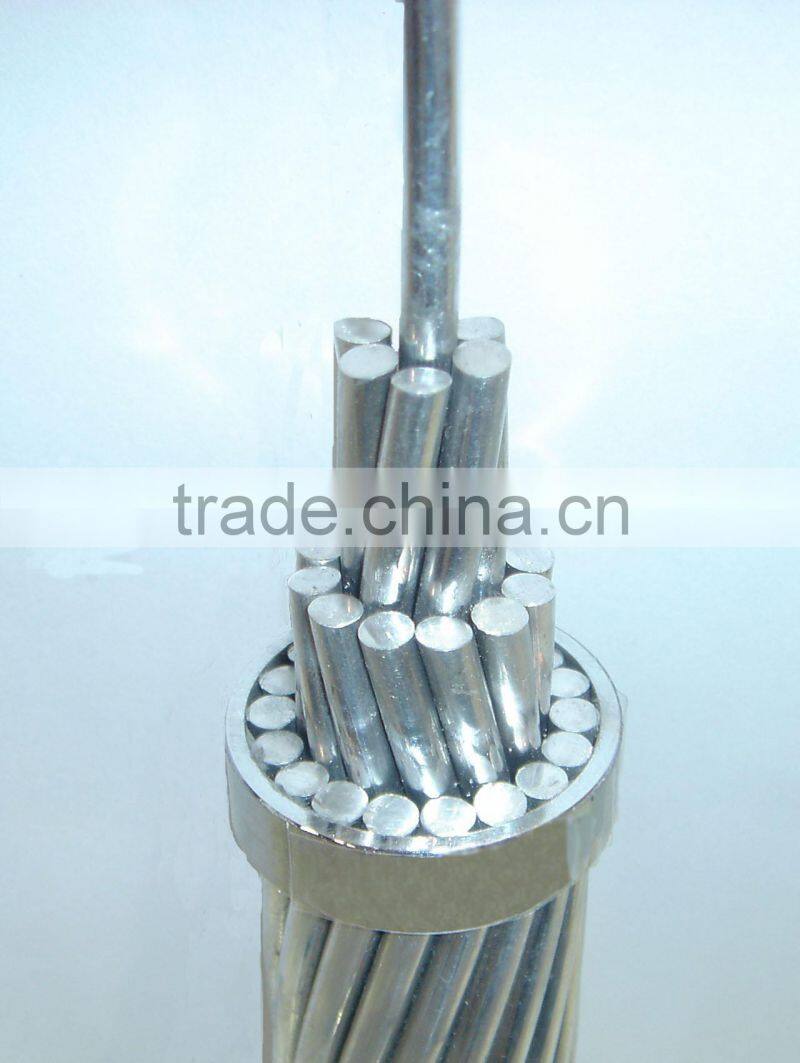

6.Product images:

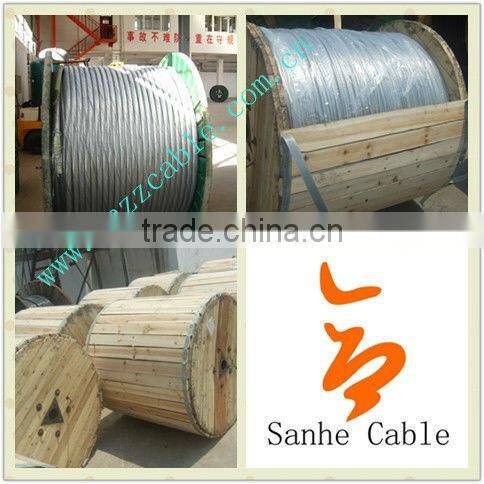

Packaging & Shipping
