Help CenterAAAC ALUMINUM ALLOY CONDUCTOR OAK 100mm2 (7/4.65mm) 19/2.82mm BS 3242
Related Products
-
AAAC ALUMINUM ALLOY CONDUCTOR Alton 4AWG ASTM B 399US$ 0.1 - 100MOQ: 500 Meters -
AAAC ALUMINUM ALLOY CONDUCTOR FLINTUS$ 0.1 - 100MOQ: 500 Meters
-
Bare Aluminum Alloy Conductor/AAC /AAAC/ACSRUS$ 0.1 - 100MOQ: 500 Meters
-
8000 SERIES ALUMINUM ALLOY CONDUCTOR MANUFACTURER PRICEUS$ 1 - 10MOQ: 5 Kilometers
-
ALUMINUM ALLOY CONDUCTORUS$ 1 - 10MOQ: 5 Kilometers
Quick Details
| Place of Origin: | Henan, China (Mainland) |
Brand Name: | sanhe |
Model Number: | AAC , AAAC , ACSR |
| Insulation Material: | Other |
Type: | Low Voltage |
Application: | Overhead |
| Conductor Material: | Aluminum |
Jacket: | NO-SHEATHED |
materials: | aluminum . aluminum alloy |
| conductor type: | stranded |
insulation material: | bare |
lead time: | 2 weeks |
| payment terms: | FOB , CFR , CIF |
| Packaging Details: | wooden drum , wooden-steel drum |
| Delivery Detail: | 20 days after the advanced payment |
| All Aluminum Alloy Conductor | ||||||||
| ASTM B399/B399M-2004 AAAC | ||||||||
| Conductor size | Code Words | AWG | Stranding | Mass | Rated Strength | DC Resistance at 20 ℃ | ||
| cmil | mm² | No. | mm | kg/km | KN | ohm/km | ||
| 740800 | 15.5 | - | 61 | 3.90 | 1999 | 207 | 0.04597 | |
| 927200 | 24.7 | - | 61 | 3.78 | 1878 | 194 | 0.04893 | |
| 1077400 | 39.3 | - | 61 | 3.65 | 1751 | 181 | 0.05248 | |
| 1165100 | 62.5 | - | 61 | 3.51 | 1620 | 167 | 0.05675 | |
| 1259600 | 78.7 | - | 61 | 3.38 | 1502 | 156 | 0.0612 | |
| 1348800 | 99.2 | Greeley | 37 | 4.02 | 1289 | 135 | 0.07133 | |
| 1439200 | 125.1 | Flint | 37 | 3.59 | 1028 | 107 | 0.08944 | |
| 30580 | 158.5 | Elgin | 19 | 4.71 | 908.3 | 97 | 0.1012 | |
| 48690 | 199.9 | Darien | 19 | 4.36 | 778.3 | 83.1 | 0.1181 | |
| 77470 | 235.8 | Cairo | 19 | 3.98 | 648.6 | 69.2 | 0.1417 | |
| 123300 | 283.5 | Canton | 19 | 3.66 | 548.5 | 58.6 | 0.1676 | |
| 155400 | 330.6 | Butte | 19 | 3.26 | 435.1 | 46.5 | 0.2112 | |
| 195700 | 375.4 | Alliance | 0 | 7 | 4.77 | 343.2 | 37.8 | 0.2678 |
| 246900 | 469.8 | Amherst | 0 | 7 | 4.25 | 272.5 | 30 | 0.3373 |
| 312800 | 545.9 | Anaheim | 0 | 7 | 3.78 | 215.6 | 23.8 | 0.4264 |
| 394500 | 590.4 | Azusa | 0 | 7 | 3.37 | 171.3 | 18.9 | 0.5362 |
| 465400 | 638.2 | Ames | 2 | 7 | 2.67 | 107.5 | 12.4 | 0.8547 |
| 559500 | 683.4 | Alton | 4 | 7 | 2.12 | 67.8 | 7.83 | 1.356 |
| 652400 | 729.3 | Akron | 6 | 7 | 1.68 | 42.58 | 4.92 | 2.159 |
1.Applications
Conductor(AAC,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2.Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4).Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.
3.Material Standard
(1).The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
(2).The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
(3).Production can be arranged according to customers requirements for material standard,etc.

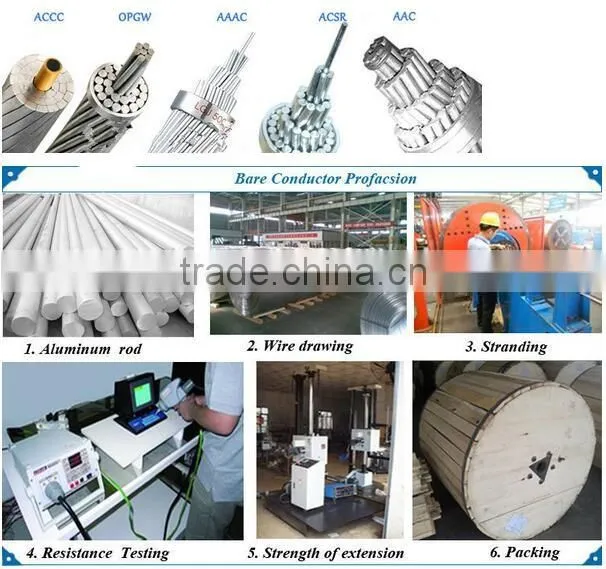

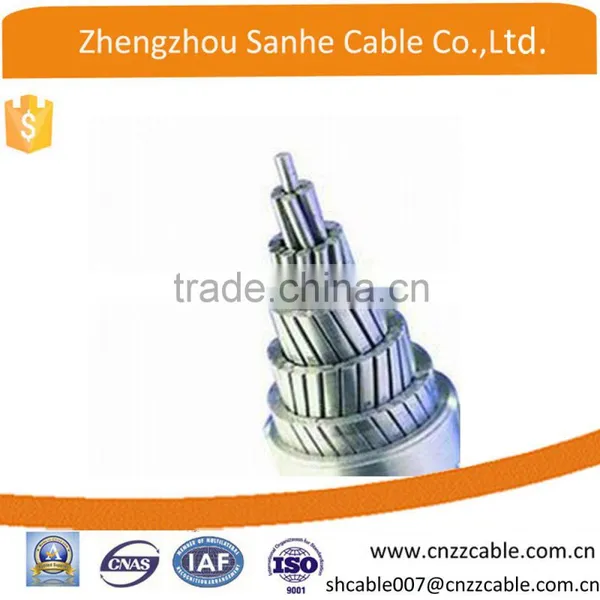

Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced

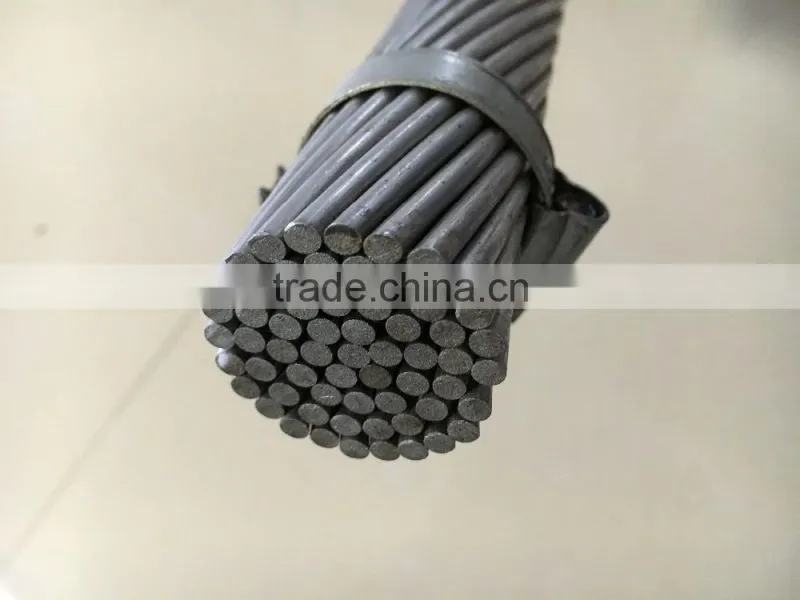

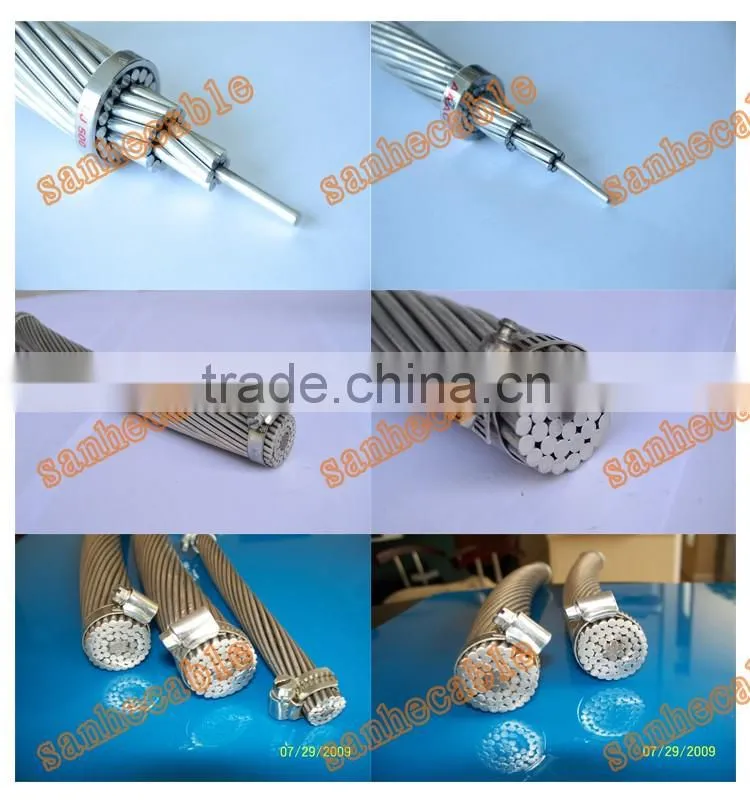

Partial products
paking&shipping
if you have such inquiry, you can contact us freely
---------------------------------
helen wang
business manager
whats app :008613526809309
skype:helenyan851
