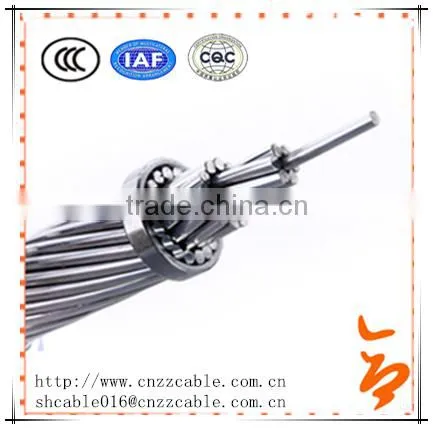

Help CenterOverhead Aluminum Alloy Bare Cable ,AAC/AAAC Conductor Butte 312.8MCM
Related Products
-
Overhead Aluminum Alloy Bare Cable ,AAC/AAAC Conductor 6AWG/4AWG/2AWG/ 1/0AWGUS$ 1 - 100MOQ: 200 Kilometers -
Bare Aluminum Alloy Cable ,AAC/AAAC/ACSR/ACAR 95mm2/120mm2/150mm2/240mm2US$ 1 - 100MOQ: 200 Kilometers
-
Overhead Aluminum Alloy Barec Conductor,AAC/AAAC 16mm2/25mm2/35mm2/50mm2/70mm2US$ 1 - 100MOQ: 200 Kilometers
-
AAAC ALUMINUM ALLOY Bare CONDUCTOR 120mm2/150mm2/185mm2/240mm2US$ 0.1 - 100MOQ: 500 Meters
-
ACSR/AAC/AAAC ALUMINUM ALLOY Bare CONDUCTOR 35mm2/50mm2/70mm2/95mm2US$ 0.1 - 100MOQ: 500 Meters

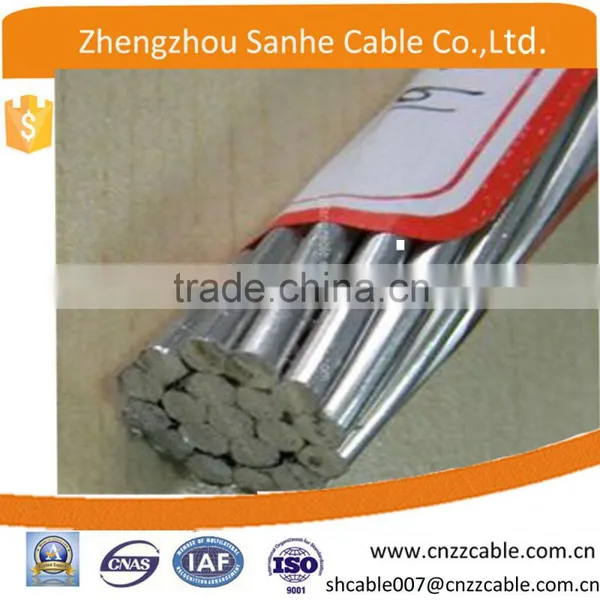

Conductor(AAC,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2.Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4).Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.
3.Material Standard
We manufacture AAC conductor as per following standards:-
- BS EN50183 BS3242
- IEC 60189
- DIN 48201
- ASTM B399
| All Aluminum Alloy Conductor | ||||||||
| ASTM B399/B399M-2004 AAAC | ||||||||
| Conductor size | Code Words | AWG | Stranding | Mass | Rated Strength | DC Resistance at 20 ℃ | ||
| cmil | mm² | No. | mm | kg/km | KN | ohm/km | ||
| 740800 | 15.5 | - | 61 | 3.90 | 1999 | 207 | 0.04597 | |
| 927200 | 24.7 | - | 61 | 3.78 | 1878 | 194 | 0.04893 | |
| 1077400 | 39.3 | - | 61 | 3.65 | 1751 | 181 | 0.05248 | |
| 1165100 | 62.5 | - | 61 | 3.51 | 1620 | 167 | 0.05675 | |
| 1259600 | 78.7 | - | 61 | 3.38 | 1502 | 156 | 0.0612 | |
| 1348800 | 99.2 | Greeley | 37 | 4.02 | 1289 | 135 | 0.07133 | |
| 1439200 | 125.1 | Flint | 37 | 3.59 | 1028 | 107 | 0.08944 | |
| 30580 | 158.5 | Elgin | 19 | 4.71 | 908.3 | 97 | 0.1012 | |
| 48690 | 199.9 | Darien | 19 | 4.36 | 778.3 | 83.1 | 0.1181 | |
| 77470 | 235.8 | Cairo | 19 | 3.98 | 648.6 | 69.2 | 0.1417 | |
| 123300 | 283.5 | Canton | 19 | 3.66 | 548.5 | 58.6 | 0.1676 | |
| 155400 | 330.6 | Butte | 19 | 3.26 | 435.1 | 46.5 | 0.2112 | |
| 195700 | 375.4 | Alliance | 0 | 7 | 4.77 | 343.2 | 37.8 | 0.2678 |
| 246900 | 469.8 | Amherst | 0 | 7 | 4.25 | 272.5 | 30 | 0.3373 |
| 312800 | 545.9 | Anaheim | 0 | 7 | 3.78 | 215.6 | 23.8 | 0.4264 |
| 394500 | 590.4 | Azusa | 0 | 7 | 3.37 | 171.3 | 18.9 | 0.5362 |
| 465400 | 638.2 | Ames | 2 | 7 | 2.67 | 107.5 | 12.4 | 0.8547 |
| 559500 | 683.4 | Alton | 4 | 7 | 2.12 | 67.8 | 7.83 | 1.356 |
| 652400 | 729.3 | Akron | 6 | 7 | 1.68 | 42.58 | 4.92 | 2.159 |
Produproducts
Packing &shipping
if you have such inquiry, you can contact us freely
Helen Wang
---------------------------
business manager
Send Inquiry to This Supplier
