Overhead Bare Conductor ALL Aluminum Alloy Conductor Cable AAAC Cable
Our Experience in Cable Market:
Different Conductor has different strandards as below:
Aluminum Conductor Steel Reinforced(ACSR):BS-215-2-70, BS EN 50182:2001,ASTM B232,DIN 48204-APR 1984
All Aluminum Alloy Conductor(AAAC):ASTM B399/B399M-2004,BS3242,BS EN 50182:2001,DIN 48201 Part6(1981),IEC61089(1991)
All Aluminum Conductor(AAC):BS 215:1970,BS EN 50182:2001,ASTM B231-90,DIN48201-5-81,IEC61089(1991-06)
Technical Parameter:
BS3242
| Nominal area | Code name | Stranding and wire diameter | Overall diameter | Weight | |
| (mm2) | No. | mm | mm | kg/km | |
| 25 | ALMOND | 7 | 2.34 | 7.02 | 82 |
| 30 | CEDAR | 7 | 2.54 | 7.62 | 97 |
| 40 | FIR | 7 | 2.95 | 8.85 | 131 |
| 50 | HAZEL | 7 | 3.3 | 9.90 | 164 |
| 100 | OAK | 7 | 4.65 | 13.95 | 325 |
| 150 | ASH | 19 | 3.48 | 17.40 | 497 |
| 175 | ELM | 19 | 3.76 | 18.80 | 580 |
| 300 | UPAS | 37 | 3.53 | 24.71 | 997 |
| 71.65 | PINE | 7 | 3.61 | 10.83 | 196 |

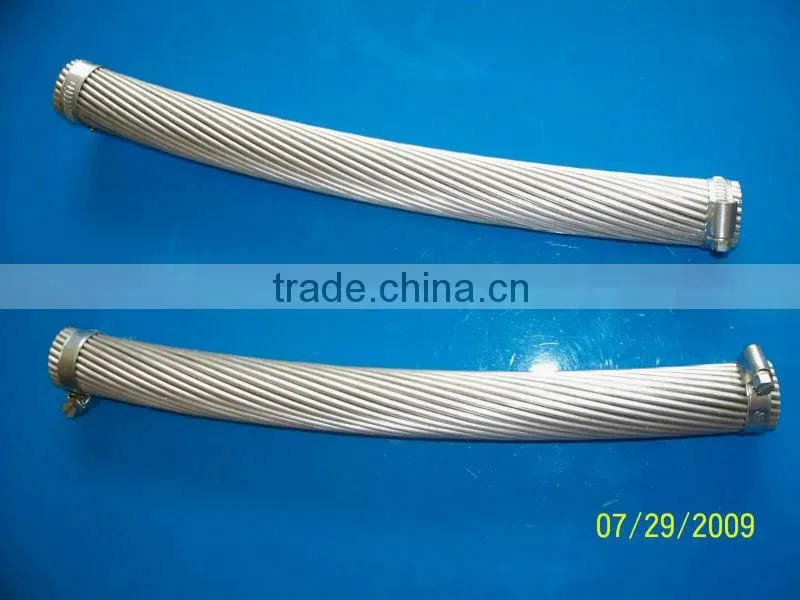

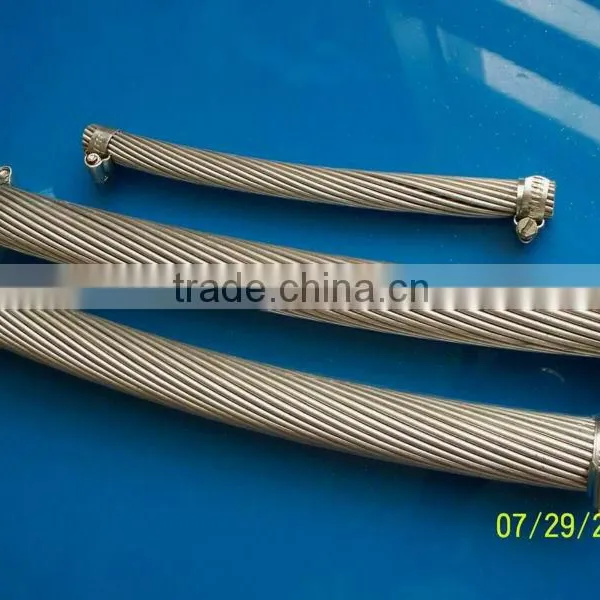

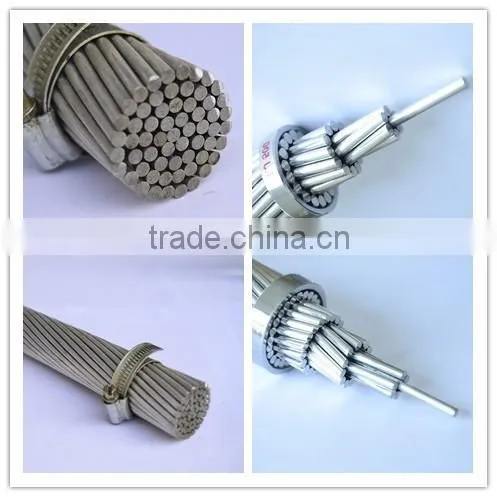

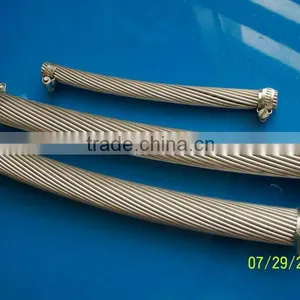

Detailed Images:

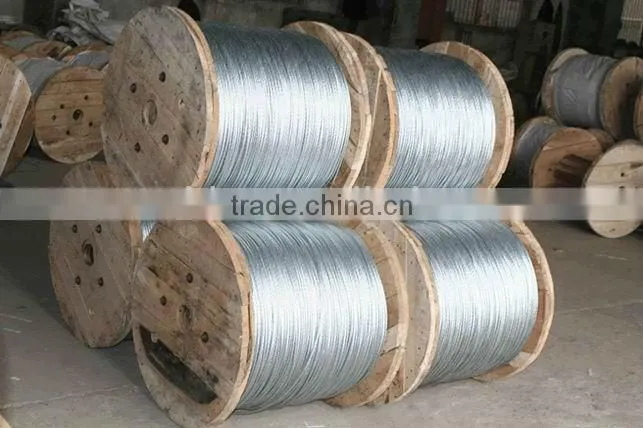

Packaging:Strandard woooden drum or other packing types
Shipping:by sea in common
Do you have any interesting for our products?
If you are interested in cable products ,pls contact me with the below contact ways:
first to consider my email
then my whatsapp:+86 13526519748
my skype:xixi82358
Looking forward to making friends each other in the near future.
Amy Wang
