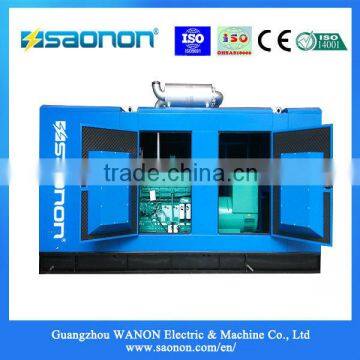

China Manufacture Diesel Generator Set 440kva With High Quality Engine and Alternator

FOB Price

US$ 28,000 - 115,000 / Set

1 Set(Min. Order)

Port Guangzhou /Shenzhen China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SAONON
Model Number	S440CC6S	Output Type	AC Three Phase
Speed	1800RPM	Frequency	60Hz
Rated Power	400kVA	Rated Voltage	220V
Rated Current	1155A

Product Description

Reliable and efficient generating set equipped with world-famous engine, alternator and the world advanced control panel.

Product features:

Base frame is designed with two detachable sections.

High strength base frame material can significantly reduce the vibration during operation.

Marvelous spray coating technology can effectively prevent against rain and noise.

Special sound absorbing material and system can maximally reduce noises to 65 dB (A)/7m.

Application scope:

It is suitable for environment with high requirement for noise reduction, such as residential area, high-end office buildings, hotels, scientific research institutes, hospitals, universities and colleges, etc.

Selection Table

GensetModel	Standbypower		PrimePower		Dimension L×W×H (mm)	Weight (kg)	EngineModel
GensetModel	kVA	kW	kVA	kW	Dimension L×W×H (mm)	Weight (kg)	EngineModel
S115EC6S	113	90	103	82	3200×1133×1766	1997	QSB5-G4
S125EC6S	125	100	113	90	3200×1133×1766	2019	QSB5-G5
S145EC6S	145	116	131	105	3200×1133×1766	2048	QSB5-G6
S188EC6S	188	150	170	136	3200×1133×1766	2342	QSB7-G3
S220EC6S	220	176	200	160	3200×1133×1766	2888	QSB7-G4
S250EC6S	250	200	225	180	3200×1133×1766	2948	QSB7-G5
S288EC6S	288	230	263	210	3200×1133×1766	3094	QSL9-G2
S315EC6S	313	250	284	227	3200×1133×1766	3468	QSL9-G3
S375EC6S	375	300	341	273	3200×1133×1766	3488	QSL9-G5
S500AC6S	500	400	450	360	4800×1683×2200	6165	QSX15-G6
S500AC6S	500	400	450	360	4800×1683×2200	6215	QSX15-G8
S625AC6S	625	500	569	455	4800×1683×2200	6933	KTA19-G4
S275CC6S	275	220	/	/	4300×1483×2145	4120	NT855-GA
S345CC6S	343	275	313	250	4300×1483×2145	4470	NTA855-G1
S375CC6S	375	300	344	275	4300×1483×2145	4470	NTA855-G1B
S375CC6S	375	300	344	275	430014832145	4470	NTA855-G2
S440CC6S	438	350	395	315	4300×1483×2145	4515	NTA855-G3
S500CC6S	500	400	450	360	4800×1683×2200	6440	KTA19-G2
S550CC6S	550	440	500	400	4800×1683×2200	6490	KTA19-G3
S625CC6S	625	500	563	450	4800×1683×2200	6600	KTA19-G3A
S625CC6S	625	500	563	450	4800×1683×2200	6600	KTA19-G4
S688CC6S	688	550	600	480	5000×1983×2371	6720	KTAA19-G5
S750CC6S	750	600	/	/	5000×1983×2371	6800	KTAA19-G6A
S750CC6S	750	600	688	550	5000×1983×2371	6800	QSKTAA19-G5NR2
S25HC6S	24	19	21.9	17.5	2350×1133×1516	1390	4B3.9-G2
S33HC6S	33	26.5	30	24	2350×1133×1516	1390	4B3.9-G2
S40HC6S	40	32	37.5	30	2350×1133×1516	1420	4BT3.9-G2
S45HC6S	45	36	42	34	2350×1133×1516	1420	4BT3.9-G2
S60HC6S	56	45	53	42	2350×1133×1516	1540	4BTA3.9-G2
S70HC6S	70	56	62	50	2350×1133×1516	1540	4BTA3.9-G2
S85HC6S	83	66	75	60	2350×1133×1516	1540	4BTA3.9-G2
S100HC6S	100	80	90	72	2350×1133×1516	1540	4BTA3.9-G11
S115HC6S	115	92	105	84	3200×1133×1766	2059	6BT5.9-G2
S145HC6S	145	116	131	105	3200×1133×1766	2090	6BTA5.9-G2
S165HC6S	165	132	150	120	3200×1133×1766	2178	6BTAA5.9-G2
S180HC6S	180	143	163	130	3200×1133×1766	2430	6BTAA5.9-G12
S195HC6S	195	157	178	143	3600×1333×2040	3050	6CTA8.3-G2
S220HC6S	220	176	200	160	3600×1333×2040	3050	6CTA8.3-G2
S240HC6S	240	192	219	175	3600×1333×2040	3204	6CTAA8.3-G2
S275HC6S	270	215	245	196	3600×1333×2040	3050	6LTAA8.9-G2
S300HC6S	300	240	273	218	3600×1333×2040	3390	6LTAA8.9-G2
S325HC6S	325	260	295	236	3600×1333×2040	3400	6LTAA8.9-G3
S415HC6S	413	330	375	300	5000×1983×2371	6400	6ZTAA13-G3
S460HCS	460	368	438	350	5000×1983×2371	6400	6ZTAA13-G2
S460HCS	460	368	450	360	5000×1983×2371	6400	6ZTAA13-G4
