Product Details

Place of Origin	Guangdong, China	Brand Name	SAONON
Model Number	SC25	Output Type	AC Three Phase
Speed	1500	Frequency	50Hz, 50Hz
Rated Power	20	Rated Voltage	440V

Product Description

25 KVA Diesel Genset

Features and Benefits

Engine: 4B3.9-G2, Alternator: PI144E

24V DC start motor and storage battery
Alternator PMG design, IP23 class 'H'in sulation
DEEP SEA 3110 control panel with auto start function.
40°C radiator as standard, water-cooled.
4-pole MCCB, 24V battery, rack and cable.

FUEL CONSUMPTION	Base output power				Continuous Power
	KVA(KW)				KVA(KW)
Ratings	22.5(18)
Load	25%	50%	75%	100%	25%	50%	75%	100%
g/kw.h	374	275	275	229	N/A	N/A	N/A	N/A
L/hr	2.7	4.0	4.0	6.7	N/A	N/A	N/A	N/A

Engine

	Specification

Engine model	4B3.9-G2
Configuration	4 Cycle; In-line; 4 Cylinder Diesel
Aspiration	Naturally Aspirated
Bore, mm	102
Stroke, mm	120
Rated speed, rpm	1500
Displacement(L)	3.9
Compression ratio	16.5:1
Lube oil capacity, L	11
Speed stability(%)	≤5%
Governor type	Elecctrical
Starting voltage	24 volts DC

Criterion

Generator sets: GB/T2820-1997, ISO8528
Alternator: BS5000, VDE0530, NEMA MG1-32,
IEC34, CSAC22.2-100, AS1359
Diesel Engine: ISO3046, DIN6271.

Alternator

	Specification

Alternator model	PI144E
Voltage	380-440V
Poles	4
Winding connections(standard)	Star-series
Insulation(class)	H
Enclosure(according to IEC-34-5)	IP23
Exciter system	Self-regulating Brushless
Voltage regulator	A.V.R (Electronic)
Steady voltage precision	within±1.5% from no load to full loading with cos =0.8/1

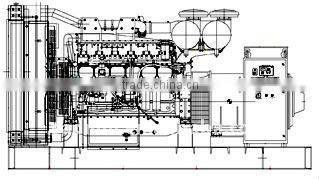

Open type Dimension=1800X670X1217mm
Weight=650kg

Silent type Dimension=mm
Weight=kg
