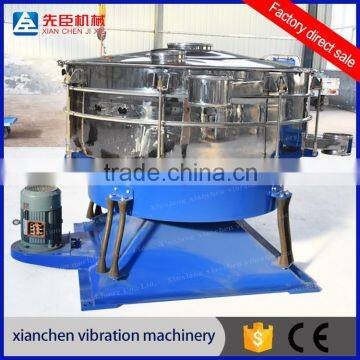

HENAN Xinixang medicine rotary vibrating screen swing vibrating sieve machine

1. Working principle of Swing Screen

Basic rotary motion is similar to hand screening .The eccentricity is adjustable from 25 to 40mm, low-speed V-belt drive is adjustable from 120 to 360rpm.Each product' dwell time can be adjusted in a radial and tangential angle ,towards the drive axis. Therefore, establishing the horizontal and throwing three-dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process. The horizontal and vertical acceleration are increased with the movement of the particles. Then the particles which are close to mesh size will be successfully separated; The larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials.

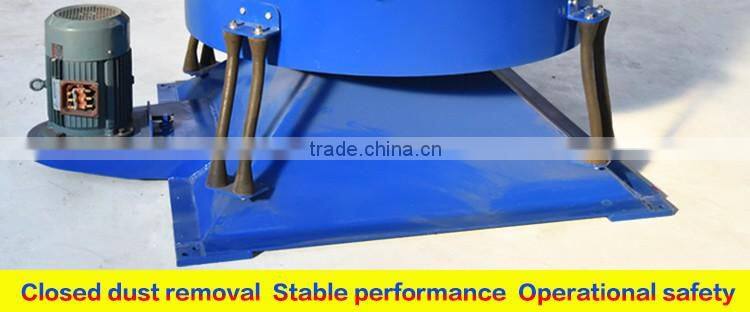

2. Structure details of Swing Screen

3. Advantages of Swing Screen

1.Low frequency, light load, the power system equipment cause little damage to the swing screen and the material
2. Mesh cloth not blocked, closed dustproof, safe operation.
3.Use silicone balls, rubber balls, ultrasonic and drum brush for clearing mesh cloth.
4. 5 times output per unit area than normal vibrating screen.
5. Basic rotary motion is similar to artificial sieving, eccentricity ratio is adjustable from 25 to 40mm, low speed V-belt drive is adjustable from 120 to 360rpm.

4. Technical parameter of Swing Screen

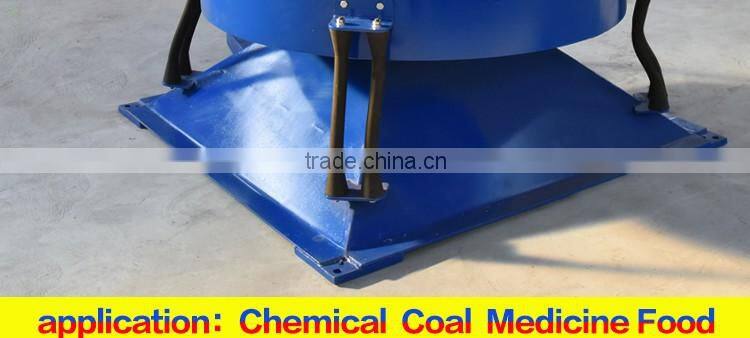

5. Application of Swing Screen

Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
Medicinal industry: all kinds of medicine.
Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.

1). Outer packing is plywood case, which is up to the international standards.
2). Inner packing is moisture-proof and water-proof membrane.
3). All of packages are wrapped by 0.5mm steel belt to further strengthen.

Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.

6. Exhibition & Customers

7. Certification & Honor

Before Sales:
1> Accept customer consultation, according to the customer demand; determine the scale of factory management, providing solutions.
2> For customer training technical personnel;
3> According to customer request, design and manufacture products;
Medium-sales:
1> Acceptance of the product;
2> Assist client protocol construction scheme;
After-sales:
1> On-site training personnel;
2> Appoint special after-sale service staff, arrived at the scene guide clients installation and commissioning;
3> Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

1. How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
This machine also could be customized by clients' specific production line requirement.
