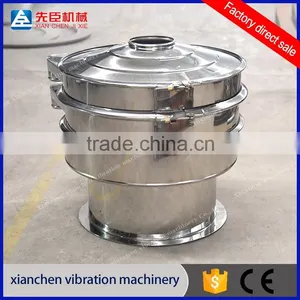

Food grade 800-1s All stainless steel Shaker

Name: Food grade 800-1s All stainless steel Shaker
Brand: xianchen
Availability: InStock

FOB Price

US$ 2,000 - 5,000 / Set

1 Set(Min. Order)

Port shanghai or qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Circular, Circular
Application	Other, Screening classification impurity filtering	Place of Origin	Henan, China
Brand Name	xianchen	Model Number	XC800-1S
Voltage	220V/380V	Power(W)	0.75kw
Dimension(LWH)	As your requirements	Weight	137kg
Certification	CE ISO	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Packaging Details: Can be packed according to the size of the machine.Our standard exporting packing is Fumigation-free wooden case,and 1 set/case.If you have special requipment,please just inform us.

Product Description

We promise 12 months warranty and return cargos if quality problem

Vibrating sieve

Overview---All stainless steel Shaker

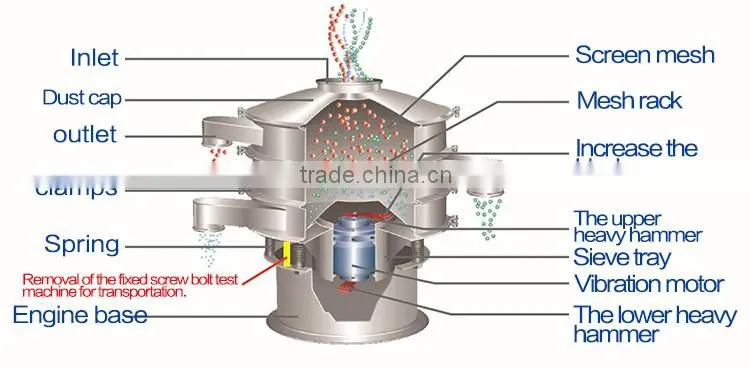

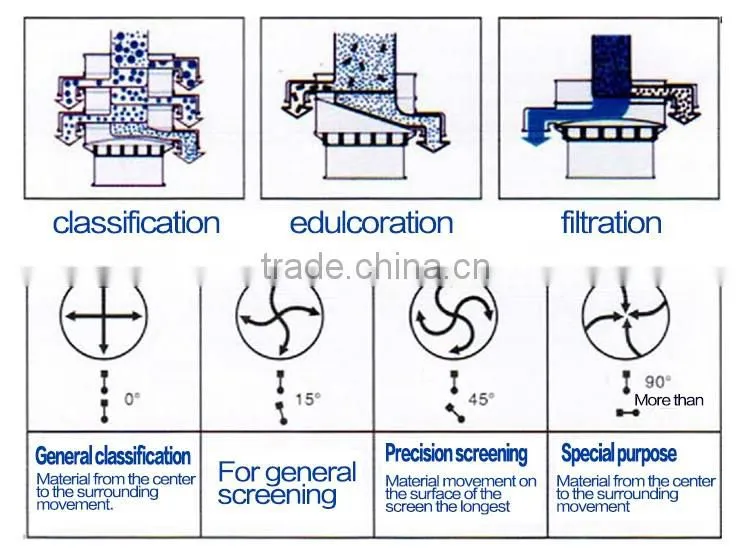

Spin vibration sieve is a kind of high precision fine powder screening machine,the working principle is by upright motor as the source of vibration,the motor is installed at both ends of upper and lower eccentric weight,the motor rotation movement into horizontal, vertical, inclined three dimensional movement, then pass the movement to the screen surface. Adjust the phase angle of the upper and lower ends can change the direction of movement of material on the screen,vibration due to its operation principle, many companies also known as the "three dimensional vibrating screen points filter", according to the shape structure is part of the customer call for a circular screen, from the material divided into standard type rotary vibration sieve and ordinary type rotary vibration sieve, the part in standard type rotary vibration sieve contact with the material is 304 stainless steel material,the base is made of carbon steel,the general type of body for carbon steel material.

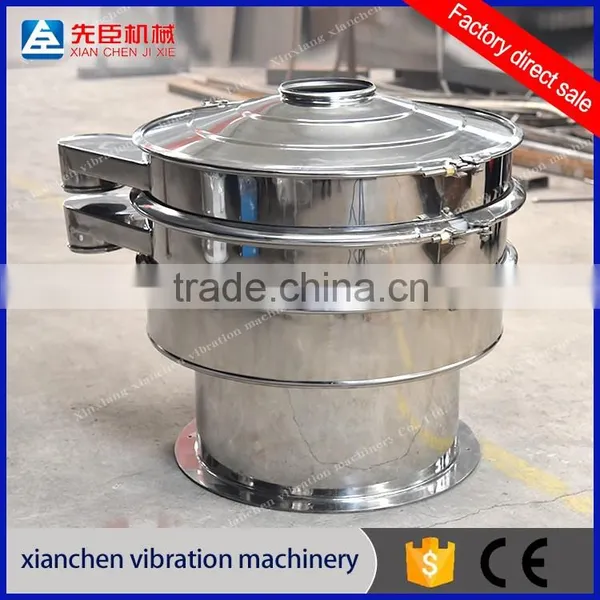

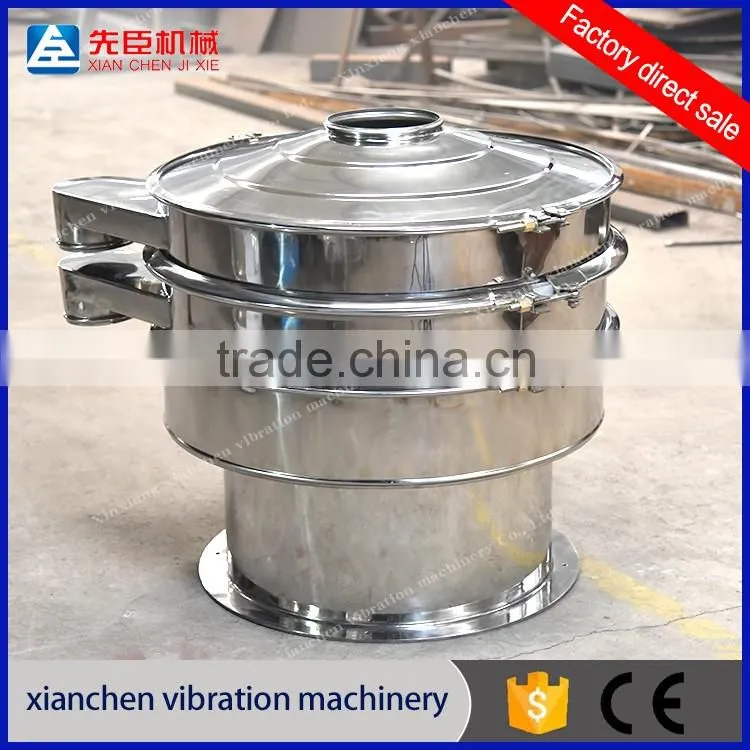

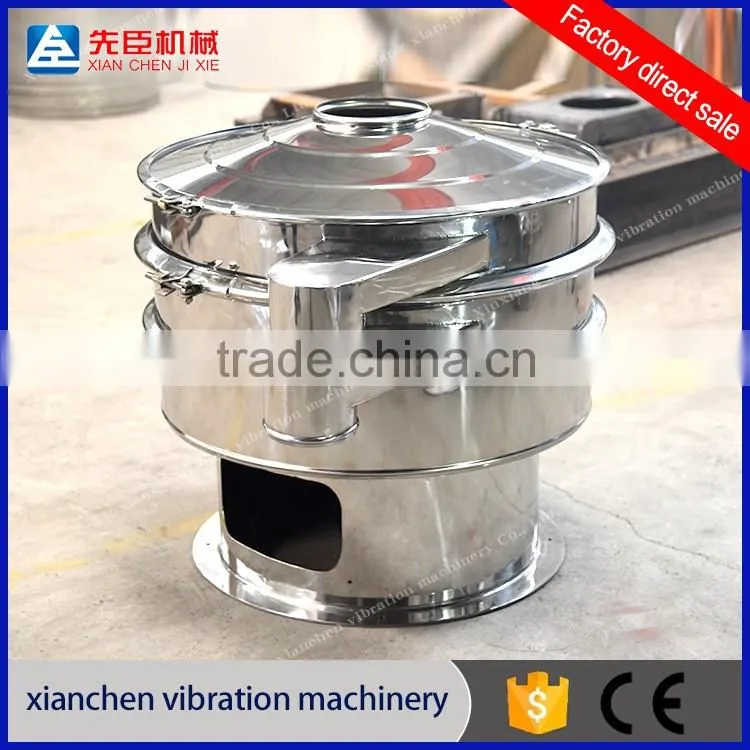

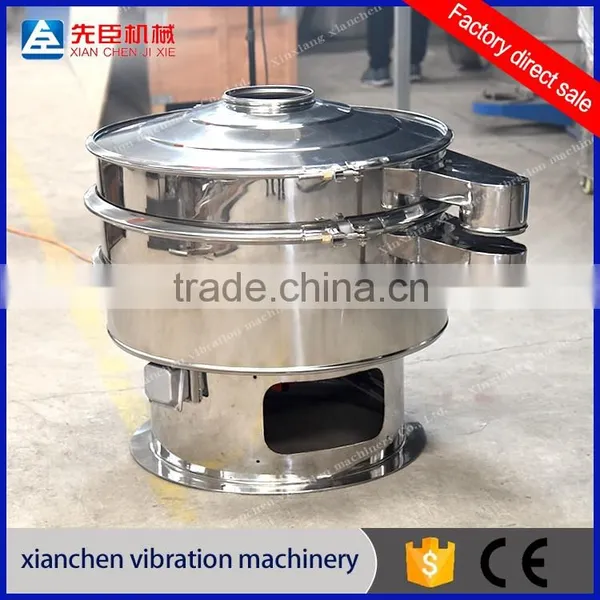

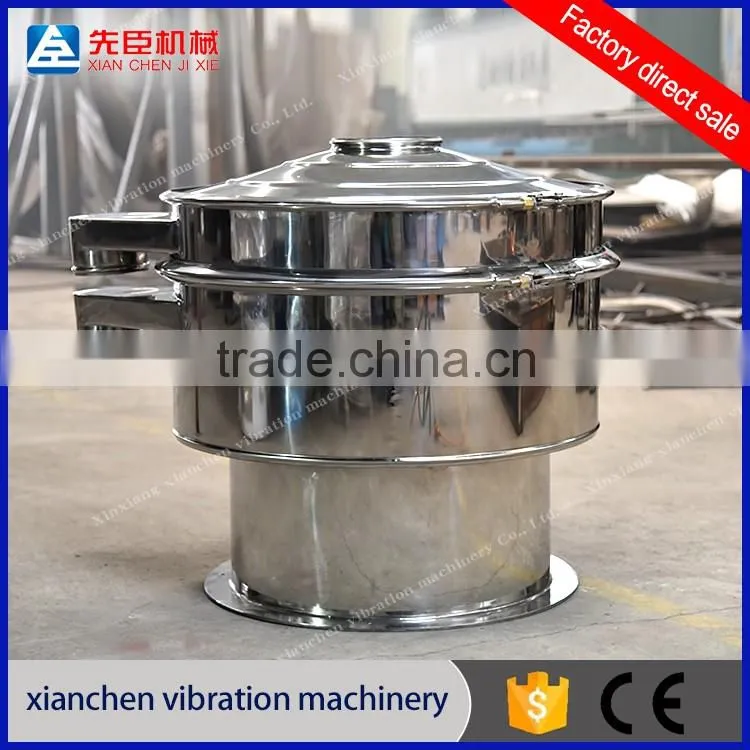

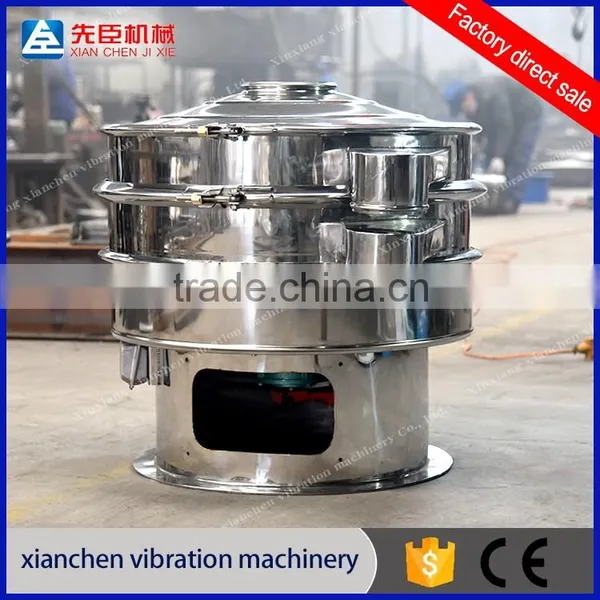

Actual photos---All stainless steel Shakeribratingsieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating

sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve

Pecifications---All stainless steel Shaker

"Xianchen" XC series of three dimensional vibration sieve products, by the customer to use for many years, won a large number of firstline feedbacks and Suggestions, based on the manufacture technology of its own mature sieve machine, Xianchen mechanical engineer to meet customer requirements as the standard, Several technical improvements, the screening effect is more superior, using a "strong" new power vibrator, threedimensional dynamic more prominent, the applicable scope is more extensive, machinery company can according to customer demand design special model, whether the material is dry or wet, is fine or rough, is large proportion or light weight, 0-400 mesh can be screened. regardless of is the liquid or slurry 0_600 mesh can be filtered. spin vibration sieve series of products at the same time equipped with a special screen cleaning device, put blocking net rate to a minimum, over the net rate and processing precision can be effectively improved. "Xianchen" with special types of manufacturing capacity so that customers have more choices for “Xianchen”. sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve vibrating sieve

Application

.Chemical industry: resin, coatings, industrial medicine,cosmetics, paint, Chinese medicine powder and so on.

.The food industry: sugar, starch, salt, Rice noodles, milk powder, Soybean Milk, egg powder, soy sauce, juice and so on.

.The metal, mining and Metallurgy: aluminum powder, lead powder, copper powder ,mineral,alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials,abrasive powder, refractory material, kaolin, lime, alumina, ground limestone,quartz sand and so on.

.Pollution treatment: waste oil, waste water, dyeing wastewater, additives, activated carbon and so on.

1.The efficiency is high, the design is exquisite and durable, any fine kind, the mucus can be screened.
2.Easy to change net, easy to operate, easy to clean.
3.The mesh is not blocked, the powder can not fly, can screen to 500 mesh or 0.028mm.
4.Impurity coarse material automatic discharge, can continuous operation.
5.Unique network frame design, the screen was used for a long time, changing the net fast, only 3-5 minutes.
6.Small size, space saving, easy to move.
7.Screen up to five layers

Workshop Process

Exhibition & Customers

Packaging & Shipping

FQA

1. How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.

2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel

3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.

Welcome your inquiry!
