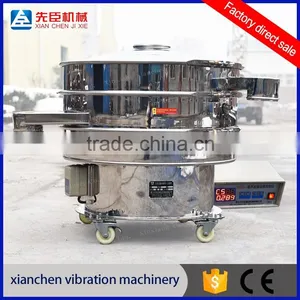

Xianchen Bone Powder Stainless Steel Ultrasonic Vibration Screen
US$ 2,000 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Xianchen
Model Number:
XC800-1s
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality and Precision Yeast Powder Vibrating Screen/ Sifter/ SieveUS$ 1,000 - 5,500MOQ: 1 Set -
Commercial Powdered Sugar Vibrating Screen/milk Powder Shaking Sieve/chili Powder Shaker ScreenUS$ 1,300 - 2,100MOQ: 1 Set
-
New Design High Frequency Powder Vibrating ScreenUS$ 3,000 - 5,000MOQ: 1 Set
-
High Accurency Vibrating Sieve,spin Vibrator Sieve,Xianchen -600 Ultrasonic Vibration ScreenUS$ 1,500 - 7,500MOQ: 1 Set
-
Hot Selling Vibrating Screen Machine for Honey PowderUS$ 1,000 - 5,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Xianchen
Model Number
XC800-1s
Application
Other, Screening/separation/sieve
Type
Other, screen
After-sales Service Provided
Engineers available to service machinery overseas
We promise 12 months warranty and return cargos if quality problem
ultrasonic
Ultrasonic vibrating screen/vibrating sieve/Shaking screen
Product description
What are the main features of circular vibrator screen?
1.All contact parts of circular vibrator screen are made of stainless steel 304 or 316.
2.The sieving process is totally sealed so no powder is spread, no liquid is split and environment is improved.
3.The number of sieves may reach 500 meshes,the finest filtering material may reach 5mm.
This whole circular vibrator screen is easy to dismantle and there is no professional personnel needed.
4.New design of specialized net shelf.
5.From layer 1 to 5, about 1/2 inches to 325 meshes materials may be sieved.
Different machinery parts are perfect without flaw.
In addition, the circular vibrator screen series are suitable for different kinds of screen meshes
(stainless steel,nylon,Teflon,PP net).
6.The circular vibrator screen is small in size,light in weight and easy to be moved.
7.The outlet direction may be adjusted all 360 degrees.All sieved materials will be discharged automatically
making it more suitable for mass production and streamline production.
8.The meshes will not be blocked leading to high efficiency.This circular vibrator screen can be tailored according to your needs in case there are impurified materials inside.
1.All contact parts of circular vibrator screen are made of stainless steel 304 or 316.
2.The sieving process is totally sealed so no powder is spread, no liquid is split and environment is improved.
3.The number of sieves may reach 500 meshes,the finest filtering material may reach 5mm.
This whole circular vibrator screen is easy to dismantle and there is no professional personnel needed.
4.New design of specialized net shelf.
5.From layer 1 to 5, about 1/2 inches to 325 meshes materials may be sieved.
Different machinery parts are perfect without flaw.
In addition, the circular vibrator screen series are suitable for different kinds of screen meshes
(stainless steel,nylon,Teflon,PP net).
6.The circular vibrator screen is small in size,light in weight and easy to be moved.
7.The outlet direction may be adjusted all 360 degrees.All sieved materials will be discharged automatically
making it more suitable for mass production and streamline production.
8.The meshes will not be blocked leading to high efficiency.This circular vibrator screen can be tailored according to your needs in case there are impurified materials inside.
What is the working principle of this machine?
Circular vibrator screen is high quality product made by absorbing strength of different vibrating screen machines home and abroad.The power source is vibration power machine.
Breaking ball(unbalanced) is set on the top and bottom of vibration power machine rotation axis.
The breaking ball converts into three dimensional movements,namely horizontal,vertical and reclined,
under the influence of rotation of vibrating screen.
The circular vibrator screen uses power machine to transport three dimensional movement to
vibrating screen net face via the spring and vibrator of the sieve.The phase angle of the breaking ball on top and
bottom of circular vibrator screen are changed to modify the movement trajectory of materials. Application range: chemical industry,abrasives,porcelain industry,paper industry,metallurgy industry,
pharmaceutical industry and environmental protection industry.

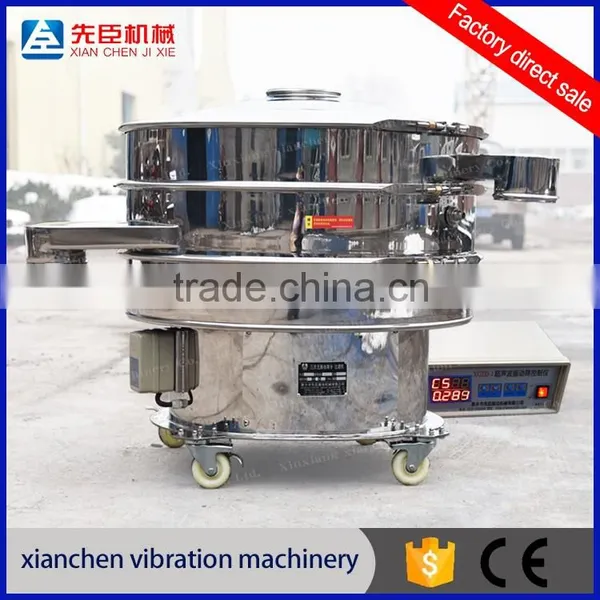

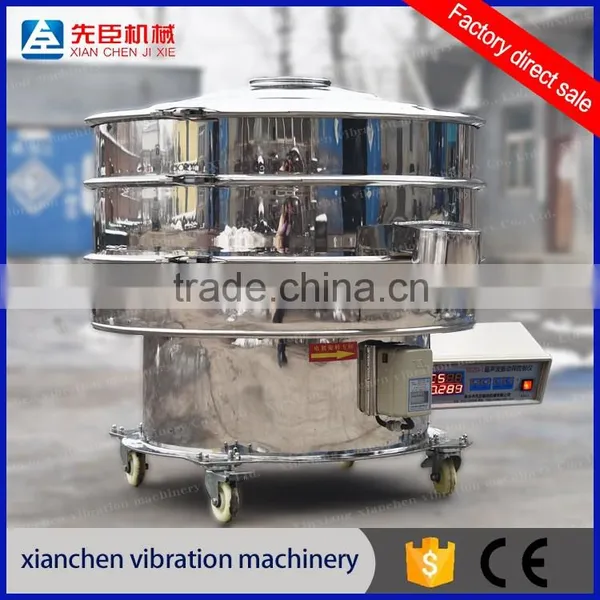

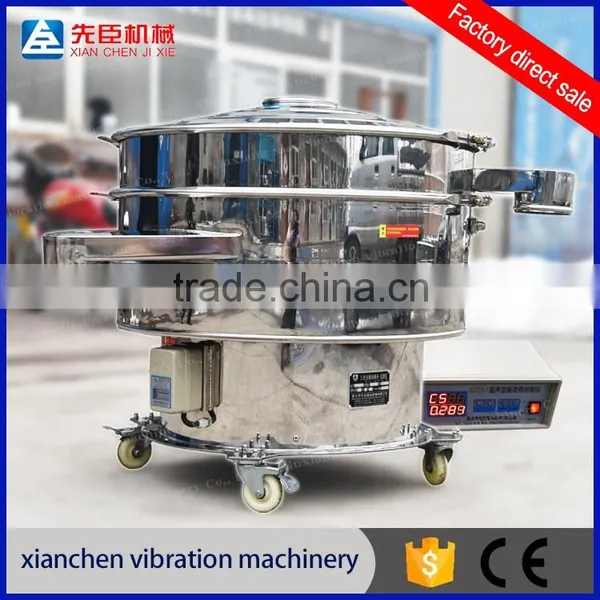

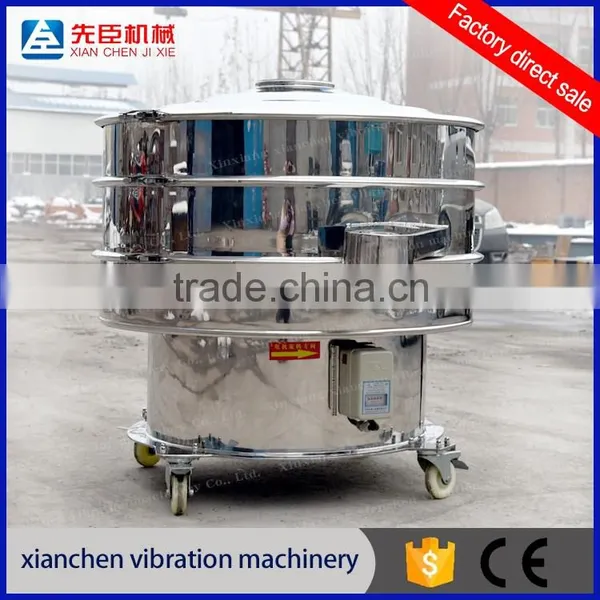

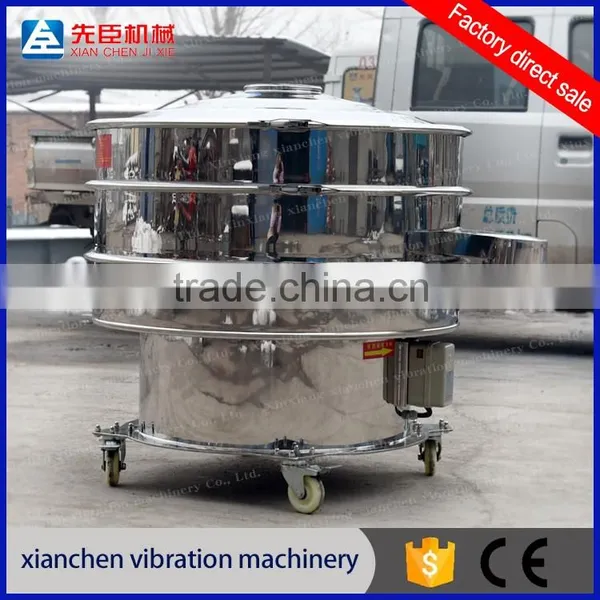

Protuct actual photos
Company introduction
XinXiang Xianchen screening machinery Co.,Ltd is specialized in producing vibrating machinery manufacturers, with well-equipped, strong technical force, detection means complete, high-quality after-sales sevice being perfect cnditions. Advanced product design, production precision, reliable performance, with international advanced level, best-selling country, in the same industry enjoys high reputation and well received by the user's trust. The main products are rotary vibration screen, vertical screen, powder sieve, linear vibrating screen, vibrating sieve mining, cement, sieve, vibration to the hopper, vibrating feeder, conveyor motor vibration level, electrical vibration vertical lifting machine, warehouse wall vibration, vibration motors and screw conveyor and so on.
Ultrasonic product specialty
- Ultrasonic uses integrated circuit board, all closed, aviation special interface; can 12-24 hours of uninterrupted work, no cooling treatment.
- Screening accuracy is improved by 70% ,the amount of processing is 2-10 times the normal screening machine, the difficult screening materials comparison is particularly significant, such as: silicon carbide powder, tungsten carbide powder, coffee powder, etc.
- The sieving mesh can reach 600 , and can completely clean, easy operation and maintenance.
- Really solve the strong adsorption, easy to reunite, high static, high precision, high density, light weight and other screening problems.
- To ensure that the characteristics of the materials are not changed.( Special design of plus nitrogen equipment for afraid of oxide materials.)
- Ultrasonic transducer
- The sealing structure prevents the powder and the liquid entering the structure.

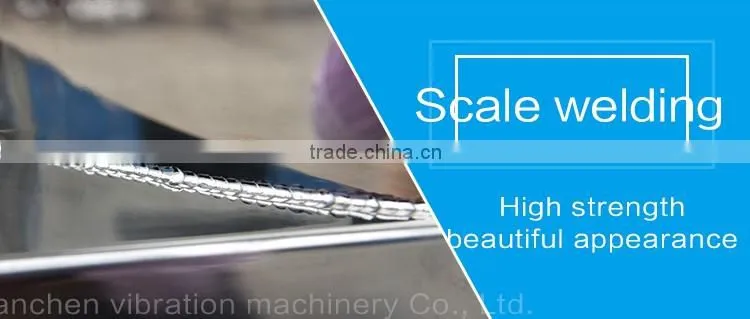

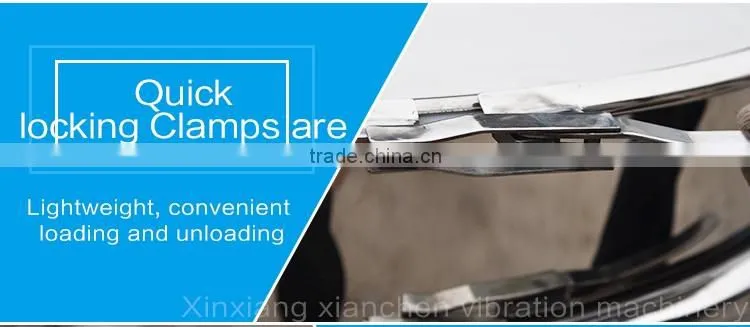

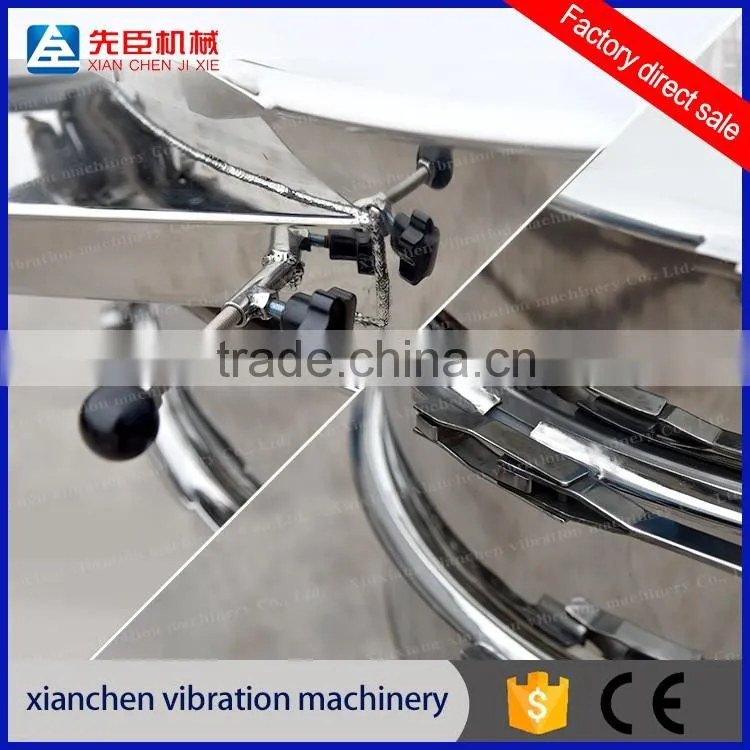

Protuct details
Technical parameters
model |
Sieve surface diameter |
Effective diameter |
power |
Net layer |
Screen specifications |
external dimensions |
XCC400-1S |
400mm |
360mm |
0.18KW |
1---3 |
60-600 |
580*580*560 |
XCC600-1S |
600mm |
520mm |
0.55KW |
1---3 |
60-600 |
800*800*680 |
XCS800-1S |
800mm |
720mm |
0.75KW |
1---3 |
60-600 |
900*900*780 |
XCC1000-1S |
1000mm |
890mm |
1.5KW |
1---3 |
60-600 |
1160*1160*880 |
XCC1200-1S |
1200mm |
1090mm |
1.75KW |
1---3 |
60-600 |
1360*1360*980 |
XCC1500-1S |
1500mm |
1390mm |
2.2KW |
1---3 |
60-600 |
1660*1660*1280 |
In addition to having XC series three dimensional vibration sieve the same specifications, There are also many special design form, screening of special materials, XCC series of ultrasonic vibrating screen have different special design, especially the design of the intelligent vibration ultrasonic controller, Especially targeted intelligent ultrasonic vibration controller design, the structure of the equipment under the protection of the lazy gas,etc.
Application
Have been applied: 400, 500, 600 mesh sieving silicon carbide, alloy powder, molybdenum powder, stainless steel powder, tungsten powder, nickel powder, cobalt powder, carbon powder, powder coating, quartz powder, Ding Michler's ketone powder, malt powder, ribavirin, coffee powder, magnetic powder, anode material, fluorescent powder.
Workshop process
FAQ
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.
Welcome your inquiry!
