XC linear vibrating screen ,
sand vibrating sieve machine

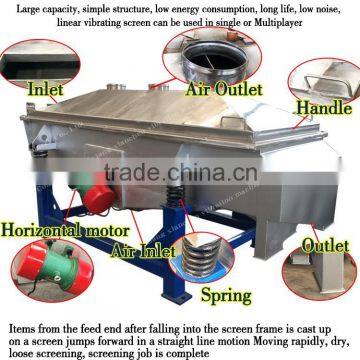

Linear sieve overview:
Xianchen Linear vibrating sieve using vibration motor as vibration source, at the same time the material in the sieve was thrown up and forward for linear motion, material from the feeder evenly into the sieving machine feeding port, generate several kinds of specifications through the multilayer mesh oversize, undersize material were discharged from their exports. With low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust, auto-nesting, more suitable for pipeline operations.
Linear sieve features:
1.Is suitable for the screening and grading, removing impurity particles, filtering, processing capacity.
2.Simple structure, sealing strict, low noise, easy maintenance, low energy consumption.
3.Can add a layer or multi-layer sieve two vibrating motors do excitation power supply, treatment effect is obvious.
4.Power arrangement can be adjusted according to customer needs, to adapt to the respective production conditions.
5.Mainly used in mining, metallurgy, abrasives, ceramics, paint, food, starch, mining.
Technical parameters:
Model |
XC520 |
XC525 |
XC530 |
XC1020 |
XC1025 |
XC1030 |
XC1225 |
|||
Nominal Size |
500×2000 |
500×2500 |
500×3000 |
1000×2000 |
1000×2500 |
1000×3000 |
1200×2500 |
|||
Particle Size(mm) |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
|||
Shake frequency |
960 |
|||||||||
Screen slope |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
|||
Swing |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
|||
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
|||
Power |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-1.1) |
2(1.1-1.5) |
2(0.75-1.5) |
2(0.75-1.5) |
|||
Linear sieve using range:
Widely used in screening chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics, paint, food, mining and other industries in a dry powder or granular material.
Workshop process:
Our services:
Experienced technicians guidance is available on the phone, and on the internet. As per different customers' demand, XianChen develops the best match design, professional technical guide, and premium after sale -service for you,aimming to optimitze you investment,enhance your project efficiency, and increase your profit.
FAQ:
1. What’s the materials to process?
2. What’s the feature of the materials? Like density, moisture degree,input particle size and output particle size.
3. How many layers do you need ? And what’s the screen mesh about each layer?
4. What’s your capacity per hour?
5. What's material for the machine?Stainless steel or contact part stainless steel or carbon steel??
6. Other special requirement.
Have any needs, please contact us!
