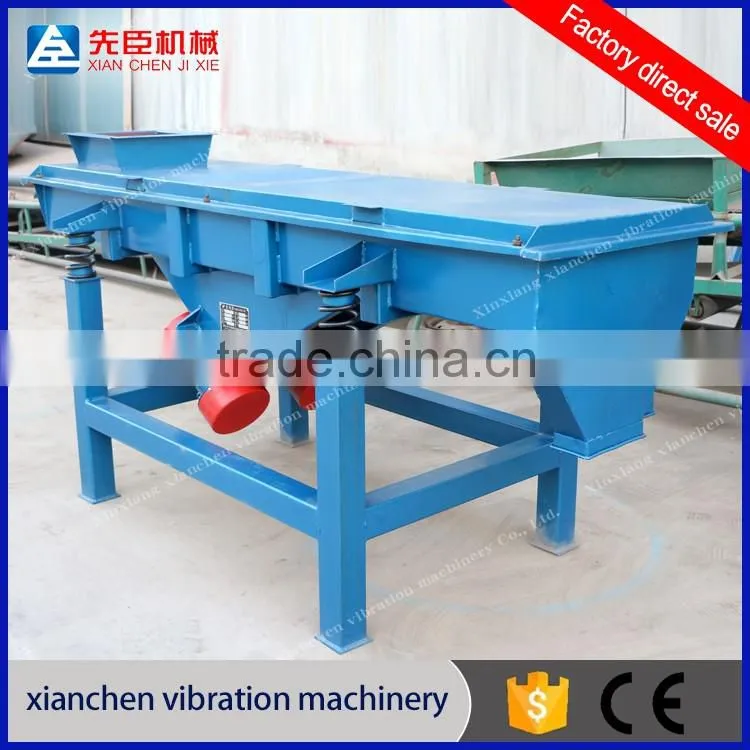

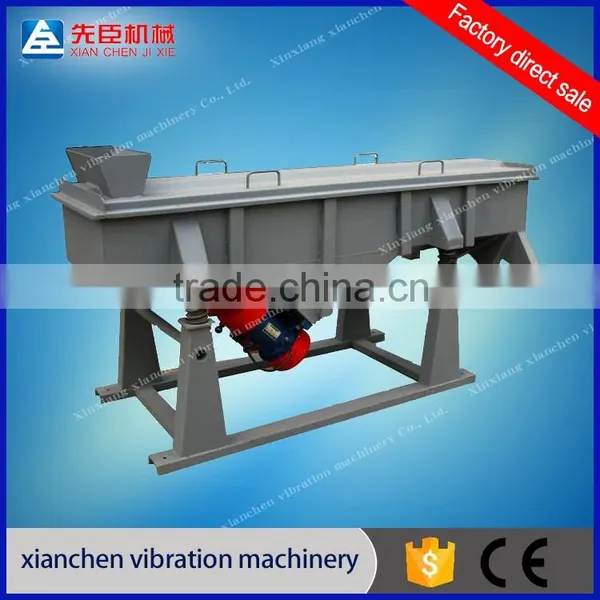

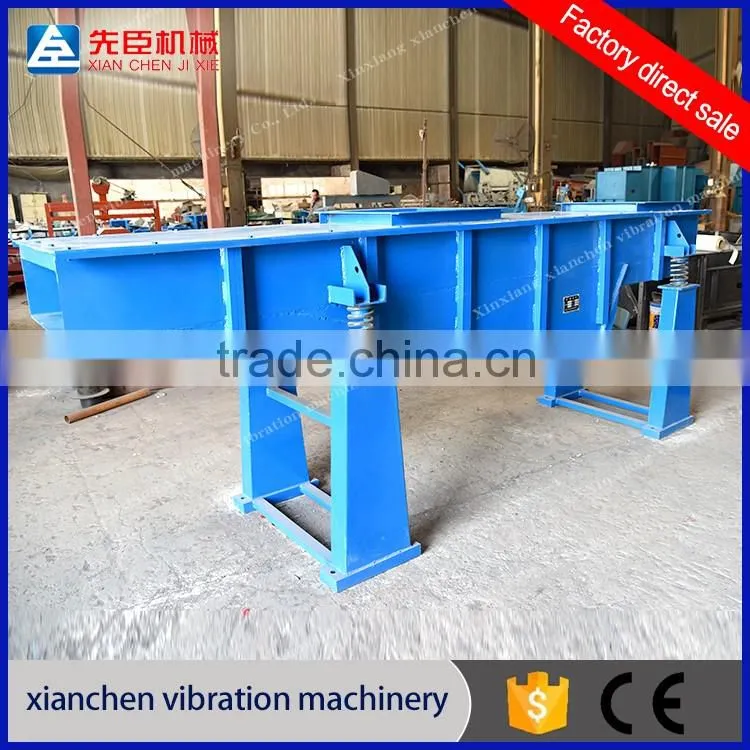

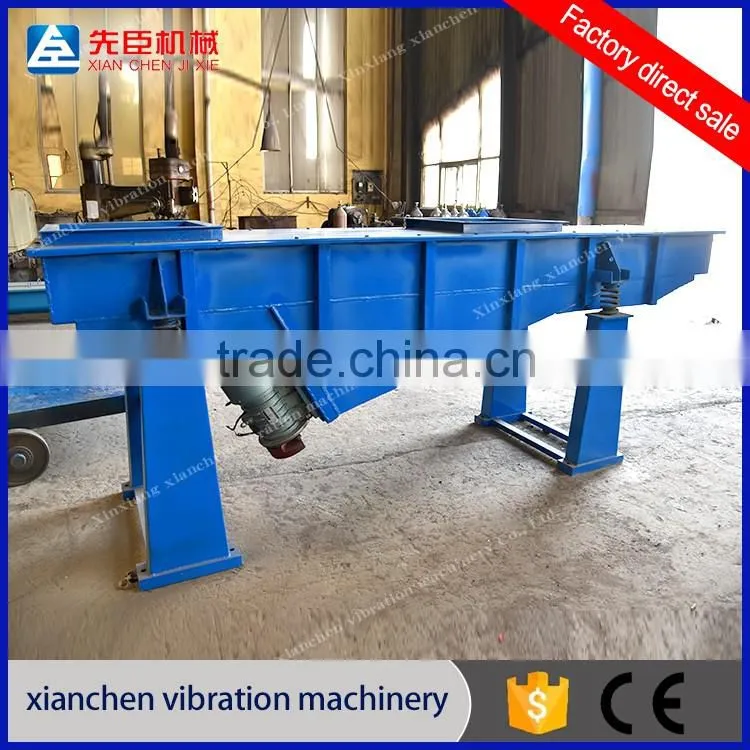

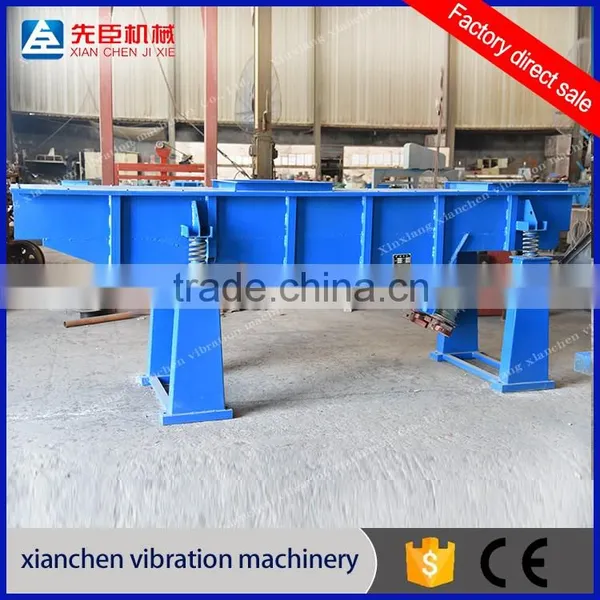

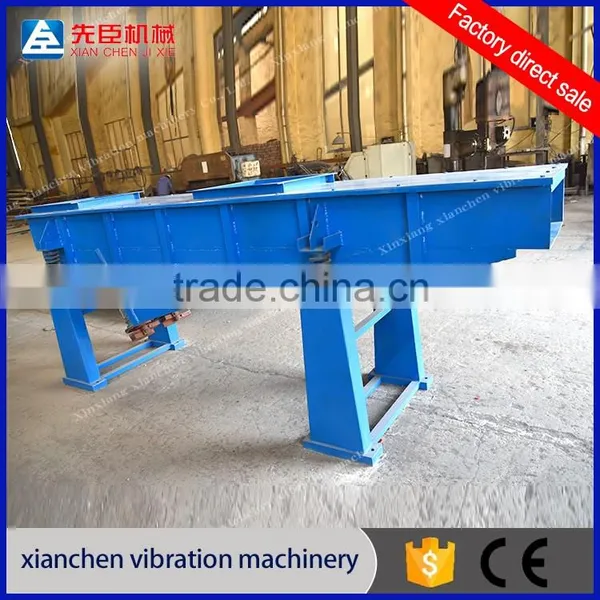

Linear vibrating screen
working principle:
line Linear Vibration Sieve series use centrifugal force generated on the vibration motor machine to obtain exciting force.The exciting force makes the sieve body and materials move up and down repeatedly.After filtered by two layers of net, the materials are divided into three levels according to diameters of the sieves so as to reach ideal goal.
Linear sieve features:
1.Is suitable for the screening and grading, removing impurity particles, filtering, processing capacity.
2.Simple structure, sealing strict, low noise, easy maintenance, low energy consumption.
3.Can add a layer or multi-layer sieve two vibrating motors do excitation power supply, treatment effect is obvious.
4.Power arrangement can be adjusted according to customer needs, to adapt to the respective production conditions.
5.Mainly used in mining, metallurgy, abrasives, ceramics, paint, food, starch, mining.
Technical parameters:
Model |
XC520 |
XC525 |
XC530 |
XC1020 |
XC1025 |
XC1030 |
XC1225 |
|||
Nominal Size |
500×2000 |
500×2500 |
500×3000 |
1000×2000 |
1000×2500 |
1000×3000 |
1200×2500 |
|||
Particle Size(mm) |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
|||
Shake frequency |
960 |
|||||||||
Screen slope |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
|||
Swing |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
|||
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
|||
Power |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-1.1) |
2(1.1-1.5) |
2(0.75-1.5) |
2(0.75-1.5) |
|||
Workshop process:
Exhibition Clients:
Special service:
first, we can design individuation machine for you.
second, we can offer different volt according to your order.
third, we can offer fumigate wooden case certification, certificate of origin, certificate of commercial invoice, certificate of B/L or others.
Have any needs, please contact us!
