Help CenterMesh Belt Continuous Working Processing Oil Filtering Machine
Related Products
Specifications
stainless steel;working stable;| model | WYJ-800 |
| Net width | 780mm |
| flowing capacity | 10t/h |
| total power | 4.6kw |
| size | 1810*1750*1260mm |
| net diamter | 60um |
| pipe diameter | 50mm |

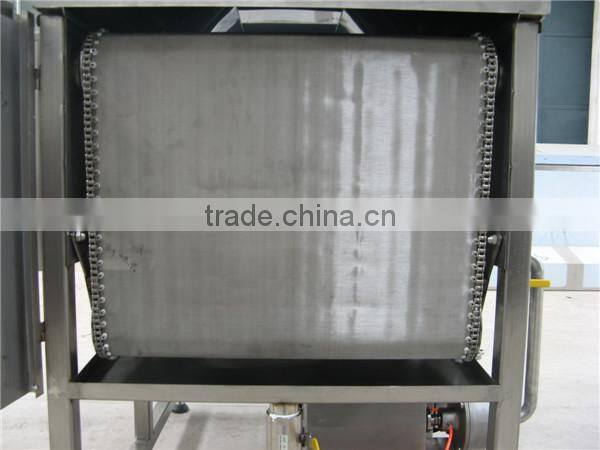

1, The filtering cloth:
The diamter is 60 μm, can filter almost residues, impurites and so on.
it is 304 stainless steel which anti-wear and anti-corrosion and have a long using life.

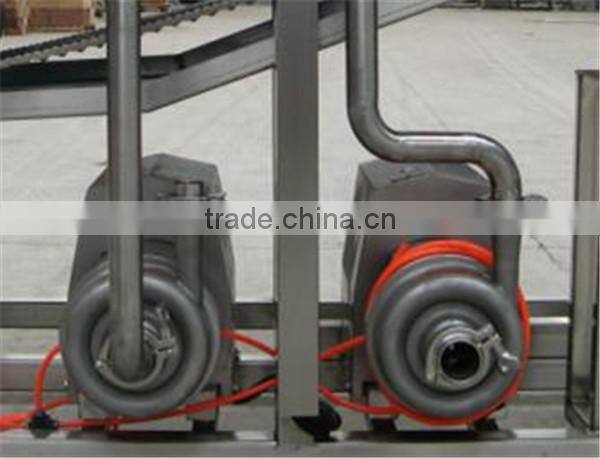

2, The pump
The flowing oil capacity is 10t/h, power is 2.2kw.
3, Limit control system
When the oil reach the largest capacity level, the pump will stop working and when less than the level it will going to work.

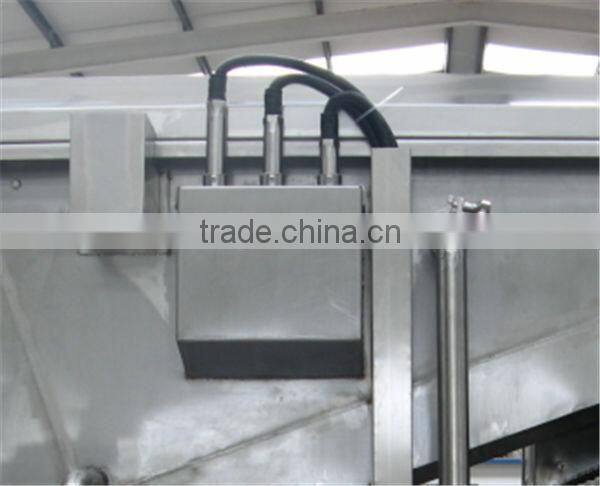

4,Spry nozzle
Make full use of the fanshaped shape and the pump, the oil can be sprayed on the cloth, and filted well.
5, Scrapping system and self-clinching system can scrap the impuries out.
Wooden package
1, Supply all informaton about the machinery to seller if customer require, such as the price list, the operation instruction, the video or other.
2, we will prepare and send all documents before goods reaching destionation port. The documents include sales contract, Immercial invoice, Packing list and other certificate.
3, If customer can not install and operate the machine, we will show clients the install instruction or video. If cusotmer stil can not do it, we will send our engineer to install and teach them to use.
4, One year warranty. Within one year from the signed contract, we can provide free service.
Zhucheng Xinxudong Machinery Co.,Ltd has been in the line of food processing machinery for more than 10 years and have a good reputation in China and word. The main products are following:
1, Various types of fryers: small deep fryers, medium and large continuation frying machine
2, potato chips / Frech Fries processing line
3, Corn flake processing machinery
4, Pet food processing machinery
5, Bean and peanut processing machinery
6, vegetable and fruit processing machinery.
and other food proeessing machinery.
