Product Description
Application: |
Construction, power station, underground etc. |
Rated voltage: |
3kV--35kV |
No. of cores: |
1,3 |
Conductor Size: |
10mm2--800mm2 |
Conductor type: |
IEC Class 2, Stranded |
Shield/Screen: |
copper wire, copper tape |
Armor: |
Steel wire, Steel tape, Aluminum wire(for single core) |
Standard: |
IEC 60502, BS 6622, AS/NZS1429, GB/T12706 etc |
Chinese model: |
YJV22, YJV32 etc |
From a design point of view, medium-voltage cables are of three types:
1. single-core cable, 2. three single-core cables laid-up, 3. three-core cable.
Construction:

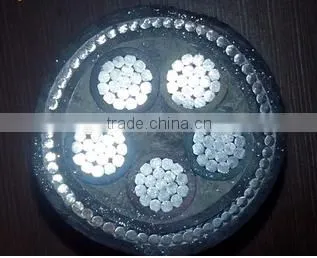

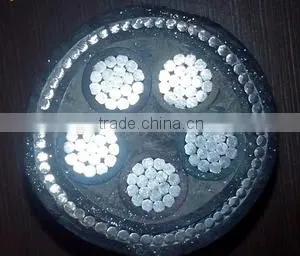

Conductor(copper or aluminium) - conductor screen of semiconducting compound - insulation of cross-linked polyethylen (XLPE) - screen of semiconducting compound - semiconducting swellable tape - screen of copper tape or copper wires+copper tape - separation tape - PVC or PE sheath. *Low smoke Halogen free fire resistant or flame retardant material is available.
Usage Envirnment:
In ground, outdoors, in water, indoors and in cable ducts
Application:
The medium voltage cables with insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U 3.6/6 to 20/35 kV and frequency 50 Hz in urban and district electrical networks and for electrical supply of transformer's substations, small and medium industrial plants. They are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.
Specifications:
Rated Voltage:1.8/3kV(3.6kV), 1.9/3.3kV, 3.5/6kV, 3.6/6kV(7.2kV), 5.8/10kV, 6/10kV(12kV), 6.35/11kV, 8.7/15kV, 11.5/20kV, 12/20kV(24kV), 17.3/30kV, 18/30kV(36kV), 19/33kV(36kV), 21/35kV, 26/35kV
