Solar Water Pumps Irrigation

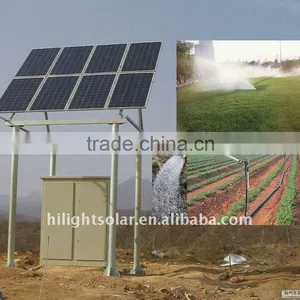

Solar Water Pumps Irrigation thumbnail-1
Solar Water Pumps Irrigation photo-1
US$ 200 - 600 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hilight
Theory:
Centrifugal Pump
Contact Supplier Request Quote Chat Now
Shandong Hilight-Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hilight
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Other, Solar Energy
Standard or Nonstandard Standard
Fuel Other, Solar Energy
Pressure High Pressure
Application Submersible

Specifications

Solar Water Pump for Agriculture
Easy installation
high efficiency and reliability.
Maintenance free
Cost-efficient pump

Features:

1. high efficiency and high reliability.

2. driven by PM,brushless, DC motor

3. Minimum maintenace, long life& without watching

4. environment friendly materials,lubricate withour oil.

Applications:

1. village or family water supply

2. animal drinking water and livestock watering

3. garden/conrtyard irrigation

4. natatorinm/swimming pool

5. water supply for bivouac or camping car

6. water supply for remote ares.

Automatic control:

1. operate automatically and without watching

2. protected from dry operation

3. Maximal power point tracking(MPPT)

4. itelligent management for battery charging&discharging

New technology:

1. applications innovation

The DC PM brusless motor has incresed its efficiency up to 25% in comparison with traditinal small asynchronous motor -25%PV modules could be saved.

2. Technology innovation(patent)

stator and rotor are sealed by environment friendly casting resin. the motor's insulation resistance can be hold higher than 300 MΩ, for more than 10 years. it consumedly increased the security and reliability of the submersible motor.

3. structure novelty

casting resin technology processed stator and rotor as well as the water lubricated bearing make the submersible pump enviroment friendly( no even one glob oil) , easy to install and more reliablity





SOLAR PUMP PERFORMANCE DATA(centrifugal type)
No.  Model Power Flow&Lift Outlet
Watt m3/h (inch)
1 4PSC2-3-27-48/500 500 2m3/27m 1.5m3/30m 1m3/34m 1.5"
2 4PSC4-2-17-48/500 500 5m3/13m 4m3/17m 3m3/22m
3 4PSC2-6-50-72/700 700 2.5m3/50m 2m3/50m 1.5m3/56m
4 4PSC4-4-32-72/700 700 5m3/24m 4m3/32m 3m3/37m
5 4PSC6-3-22-72/700 700 7m3/20m 6m3/22m 5m3/26m
6 4PSC2-11-70-110/1100 1100 2m3/70m 1.5m3/80m 1m3/86m
7 4PSC4-8-46-110/1100 1100 5m3/34m 4m3/46m 3m3/54m
8 4PSC6-6-37-110/1100 1100 7m3/30m 6m3/37m 5m3/42m
9 4PSC8-4-21-110/1100 1100 9m3/18m 8m3/21m 7m3/24m 2"
10 4PSC2-17-110-150/1500 1500 3m3/82m 2m3/110m 1m3/132m 1.5"
11 4PSC3-16-88-150/1500 1500 4m3/62m 3m3/88m 2m3/112m
12 4PSC4-12-72-150/1500 1500 5m3/55m 4m3/72m 3m3/87m
13 4PSC6-8-50-150/1500 1500 7m3/37m 6m3/50m 5m3/55m
14 4PSC8-6-32-150/1500 1500 9m3/27m 8m3/32m 7m3/35m 2"
15 4PSC2-23-140-220/2200 2200 3m3/103m 2m3/140m 1m3/162m 1.5"
16 4PSC3-20-107-220/2200 2200 4m3/52m 3m3/107m 2m3/147m
17 4PSC4-18-97-220/2200 2200 5m3/67m 4m3/97m 3m3/112m
18 4PSC6-10-62-220/2200 2200 7m3/47m 6m3/62m 5m3/70m
19 4PSC8-7-40-220/2200 2200 9m3/35m 8m3/40m 7m3/42m 2"
20 6PSC18-3-22-220/2200 2200 20m3/20m 18m3/22m 16m3/25m 3"
21 4PSC2-26-210-300/3000 3000 3m3/182m 2m3/210m 1m3/252m 1.5"
22 4PSC4-22-100-300/3000 3000 5m3/72m 4m3/100m 3m3/132m
23 4PSC6-14-103-300/3000 3000 7.2m3/82m 6m3/103m 4.8m3/118m
24 4PSC8-11-67-300/3000 3000 10m3/55m 8m3/67m 6m3/77m 2"
25 6PSC17-3-33-300/3000 3000 20m3/28m 17m3/33m 14m3/36m 3"
26 6PSC30-2-22-300/3000 3000 35m3/20m 30m3/22m 25m3/25m
