On Grid PV System 9KW Solar Panel / Inverter

On Grid PV System 9KW Solar Panel / Inverter thumbnail-1
On Grid PV System 9KW Solar Panel / Inverter photo-1
US$ 4,985 - 5,235 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hilight Solar, Hilight Solar
Model Number:
HSPV-250Wp-156-60M
Contact Supplier Request Quote Chat Now
Shandong Hilight-Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hilight Solar, Hilight Solar
Model Number HSPV-250Wp-156-60M
Material Monocrystalline Silicon
Size 1640x992x40 mm
Number of Cells 60PCS
Max. Power 250W Solar Panel

Specifications

1KW-20KW On grid system
1.High quality and Competitive price
2.Solar panel,25 years warranty
3.widely used,easy installation

Alibaba Gold Supplier - Solar Panel 5Wp-310Wp and 1KW-1000KW On-Grid System Manufacturer

Product Description





System capacity 5KW 5.5KW 6KW 9KW
Solar module 250W×20PCS 250W×22PCS 250W×24PCS 250W×36PCS
Maximum power voltage (Vmp)  30.0V
Maximum power current (Imp)   8.33A
Open circult voltage (Voc)    37.4V
Short circult current  (Isc)      8.83A
Temperature range  -40°C~+85°C
Max. Wind Load/Max. Snow Load 2400Pa / 5400Pa
Warranty 10 years at 90% of the minimal rated power output,                              25 years at 80% of the minimal rated power output.
Max.DC Power 5200W 6400W 6400W 10500W
Max.DC Voltage 600V 600V 600V 1000V
Start Voltage 150V 150V 150V 350V
PV voltage range 100V-600V 100V-600V 100V-600V 180V-1000V
MPPT work voltage range/nominal voltage 120V-600V/360V 120V-550V/360V 120V-550V/360V 300V-1000V/600V
Full load DC voltage range 175V-580V 175V-550V 175V-550V 400V-800V
Max input current / per string  15A/15A 15A/15A 15A/15A 20A
Rated AC out put power 5000W 6000W 6000W 10KW
Max.AC Power 5000W 6000VA 6000VA 10KVA
Max.Output current 25A 30A 30A 16A
AC nominal voltage ; range 220V,230V,240V;180V - 280V 3/N/PE,230V/400V;184-275V
AC grid frequency ; rang  50Hz,60Hz;±5Hz 50Hz/60Hz ; 44Hz-55Hz/54-65HZ
Operating temperature range -25°C-60°C
Ac connection Single phase Single phase Single phase Three phase
Max.efficiency 97.9% 97.9% 97.9% 98.0%
Euro-eta 97.4% 97.4% 97.4% 97.5%
MPPT efficiency 99.5% 99.5% 99.5% 99.5%
Self-consumption night <0.5W <0.5W <0.5W <0.5W
Environmenal Protection IP65 IP65 IP65 IP65
Relative Humidity 0-95% 0-95% 0-95% 0-95%
Display LCD
Communication interface RS232/RS485(YES) ; Blutooth/RF/Zigbee/Wi-Fi(OPT)
Protection Devices DC reverse polarity protection;DC switch rating for each MPPT;Out over current protection;Protection-varistor;Output overvoltage;Ground fault monitoring;Grid monitoring;Integrated all-pole sensitive;Leakage current monitoring unit





The Advantage of on-grid system

 On grid PV system 9KW solar panel / inverter

On-Grid Solar Power System means that you connect your home-use solar system to your country's grid, when the power generated by your solar system is not enough, you can buy it from the countries grid.
In other words , if solar power system produce excess power , you can sell excess power to countries grid or the local grid .
Actually,the excess electric power of on-grid system is not wasted.You will be able to sell back surplus electricity at premium prices to the national grid.

On grid PV system 9KW solar panel / inverter


On grid PV system 9KW solar panel / inverter

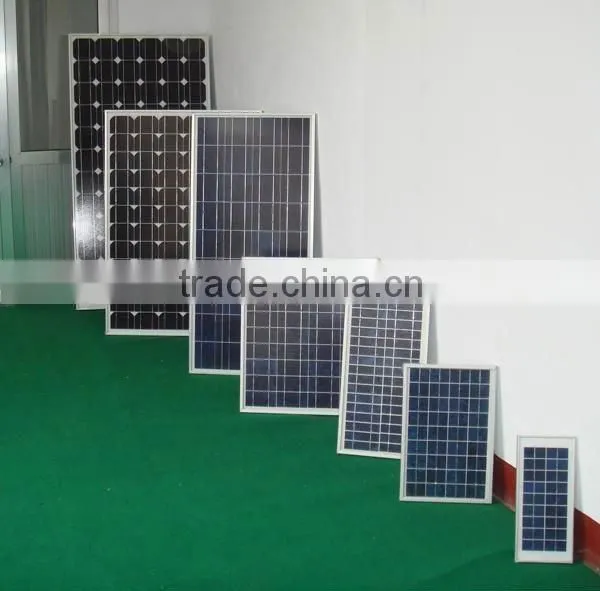

Solar Panel Characteristic

On grid PV system 9KW solar panel / inverter

1. High efficiency solar cells ensure high performance of solar module and create more power in peak hours

2. Bypass diodes to avoid hot-spot effect
3. Pre-cable with fast-connecting systems for convenient installation
4. Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind-pressure and snow load.
5.The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season
6. Hilight PV modules offer industry leading high performance and are designed specifically to meet clients’ demand for residential, commercial and industrial use from small installations to multi-megawatt power plants.

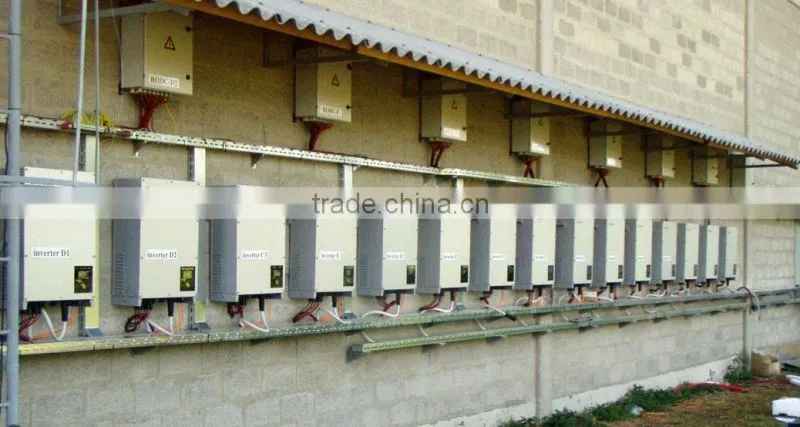

 On-Grid Inverter

On grid PV system 9KW solar panel / inverter

Growatt offers a full line of PV inverters from 1kW to 1MW, together with our smart monitoring systems, which are
completely applicable for residential & commercial roof and ground plants. Growatt 5000TL is honored to be the first
Asian PV inverter with A+ from Photon Lab; Growatt 5000MTL has also perfectly achieved A & A in Photon Lab in Dec.
2012.
Growatt inverters, as the representative of high efficiency, conform to the safety, power level, and grid standards of nearly
20 countries in Europe, Americas, Australia, and Asian. With the sales of RMB 300 million in 2012, Growatt is the top
Chinese inverter manufacturer, being the largest exporter in China for 2 years.

IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE,TUV,CEC,IEC,INMETRO Certifications, also on Australia Clean Energy Council (CEC) list.



Company Information



We are factory specializing in R&D, manufacturing , sales & service of 5Wp-310Wp mono-crystalline and poly-crystalline solar modules. Hilight solar products is widely use for solar power system, solar street light and so on.
Our products are exporting to Europe, South America, Australia, Africa and Southeast Asia countries. Hilight solar modules got TUV, IEC 61215 & 61730, CEC, ISO and CE international certificate. We offer high quality products and sustainable service to our customer, establishing long-term cooperative relationship with them.

Packaging & Shipping





Shipping date: 5-15 days after we received deposit by the first available vessel to your country.

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It take 15-40 days to worldwide,
