Specifications
solar system1.support lighting,TV,computer ect
2.CE TUV certificated
3.Solar controller/inverter/cable ect
4.Good quality
off-grid solar system 3KW/3000W for house use
1. Configuration of off-grid solar system 3KW/3000W

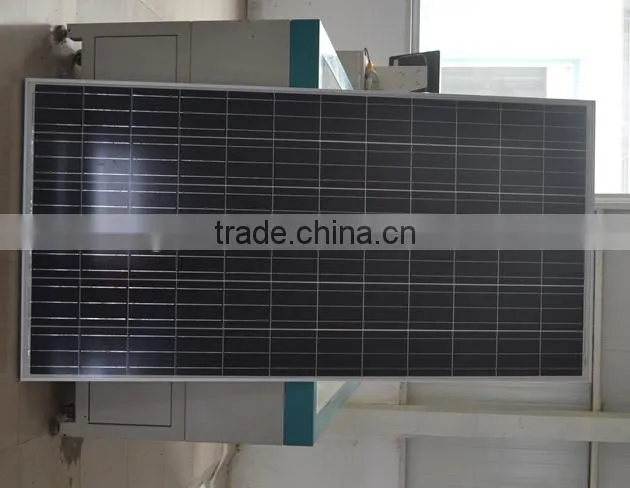

1) solar panel
Maximum power(Pm) : 300W
1. Maximum power voltage (Vmp) : 36.1V
2. Maximum power current (Imp) : 8.31A
3. Open circuit voltage (Voc) : 44.0V
4. Short circuit current (Isc) : 8.97A
5. Component size : 1956*992*50mm
2) PV array box
Applicable for outdoor PV systems
>4/6/8/10 PV string inputs with max current 10-15a
>With PV dedicated high voltage lightning protection device
>Waterproof terminals
>Lighting Protection,it can reduce solar cable.
3) solar controller
48V, 30A, 2PCS are connected in parallel.
1. Micro CPU controlled with MPPT,which can increase PV system efficiency 20~30%
2. Fully automatic operation and protections.
3. Unit size: 280*191*71mm. N.W.: 2.7KG.
4) solar battery
Deep cycle battery 12v-200ah,
span life can reach 8years.
Weight:57KG
Warranty:2years
5) solar inverter
Off grid inverter 48V-3000W
1. Output pure sine wave,100V/110V/120VAC,or 220V/230V/240VAC,50HZ/60HZ
2. Protections: against short-circuit, overload, battery reverse polarity, low-voltage, and over-voltage protection, etc.
3. By pass function--when the battery has not enough power,it will turn to use the city power.
4. Weight: 25kg Size:553*260*523mm
6) solar panel mounting brackets
Pitched roof racking or Ground mounting (optional)
Material:Al6005-T5
Extruded Aluminum Section
High Class Anodized Aluminum
one set brackets can mount 2pcs solar panels
Warranty:10 years
7) solar cable & MC4 connectors
4mm2 solar cable(black,single core)
MC4 connector (male and female,for 4mm2 cable)
2. Features of 3KW solar power system
1) Solar panel rated output power:3000W
2) Suitable for daily power consumption : <24000WH (Better sunshine 8h per day)
3) Allowable max loads power : 3KW
4) Supply power for TV, washer, fan,fridger,computer,lighting ...
5) The system can meet 3 rainy days work.Different types of load such as inductive load and resistive load,
has different starting current. Big power load should use alternately

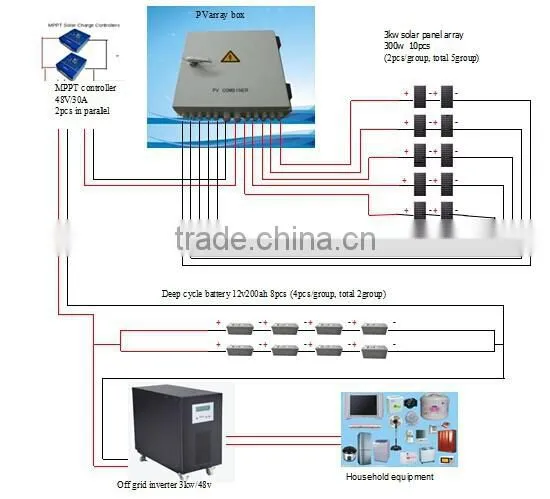

3. Solar system diagram

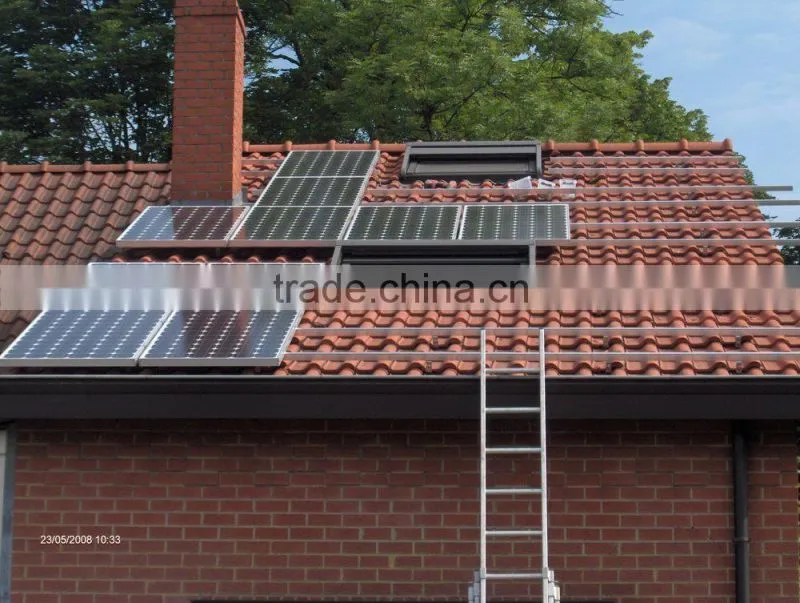

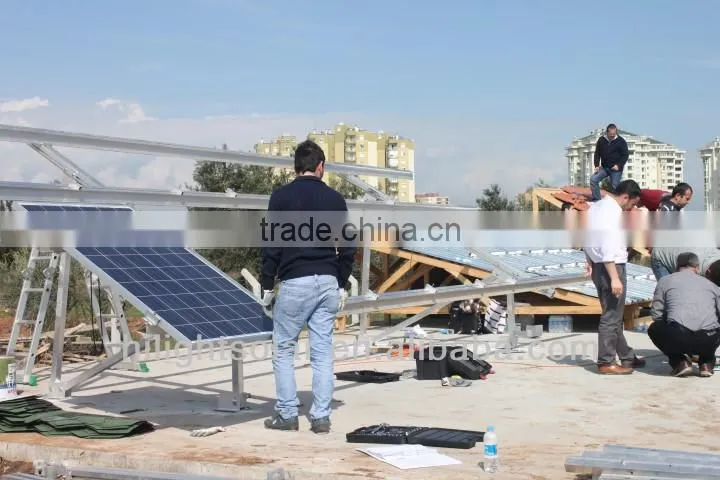

3. Other pictures
