Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Panel Solar Polycristalino 12v 140w for Solar Power System

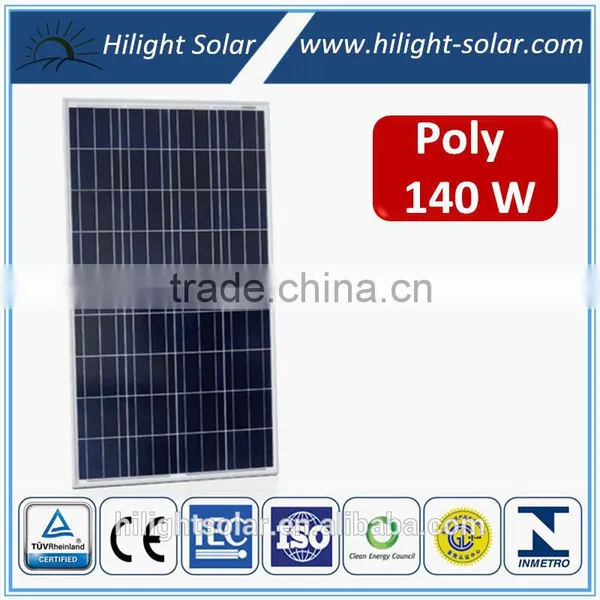

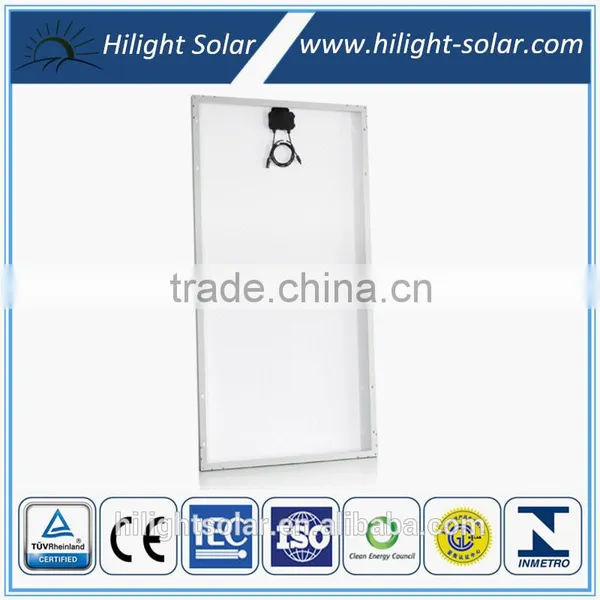

Panel Solar Polycristalino 12v 140w for Solar Power System

Name: Panel Solar Polycristalino 12v 140w for Solar Power System
Brand: Hilight
SKU: 127762429

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-1

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-2

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-3

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-4

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-5

Panel Solar Polycristalino 12v 140w for Solar Power System thumbnail-6

Panel Solar Polycristalino 12v 140w for Solar Power System photo-1

Panel Solar Polycristalino 12v 140w for Solar Power System photo-2

Panel Solar Polycristalino 12v 140w for Solar Power System photo-3

Panel Solar Polycristalino 12v 140w for Solar Power System photo-4

Panel Solar Polycristalino 12v 140w for Solar Power System photo-5

Panel Solar Polycristalino 12v 140w for Solar Power System photo-6

US$ 0.42 - 0.52 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Hilight

Model Number:

HSPV140Wp156-36P

Contact Supplier Request Quote Chat Now

Shandong Hilight-Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Hilight

Model Number HSPV140Wp156-36P

Material Polycrystalline Silicon

Size 1470X680X35 mm

Number of Cells 36PCS(4X9)

Max. Power 140Wp

panel solar polycristalino 12v 140w for solar power system , 12v 140w Poly solar panel in China with CE, CEC, TUV, IEC, ISO certificates

Product description

Module Type	HSPV140Wp156-36P
Maximum power at STC (Pmax)	140w
Maximum power voltage (Vmp)	17.70
Maximum power current (Imp)	7.92
Open circuit voltage (Voc)	22.00
Short circuit current (Isc)	8.48
Nominal Operating Cell Temperature	45 ± 2°C
Temperature coefficients of Isc	+0.049% /°C
Temperature coefficients of Voc	-0.340% /°C
Temperature coefficients of Pmax	-0.430% /°C
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance	0~ +5W

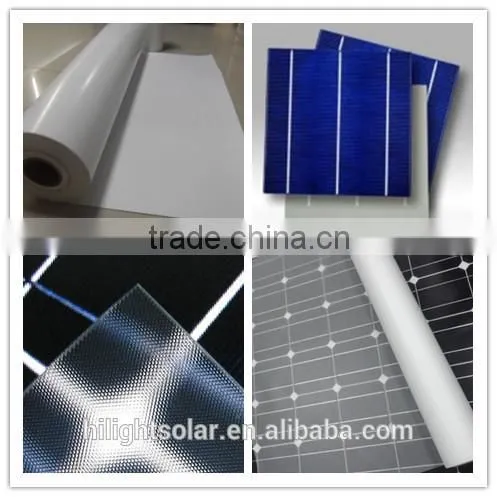

Solar Cell	36(4x9) Poly solar cells 156 x 156 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-PET-Tedlar)
Encapsulant	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0 mm*mm 900mm / MC4 or compatible connectors

Maximum System Voltage	DC1000V (IEC)
Maximum Series Fuse	15 A
Operating Temperature	-40℃~+85℃
Storage Temperature	-40℃~+85℃
Max. Wind Load / Max. Snow Load	2400Pa / 5400Pa
Application Class	Class A
Module Area (m*m)	1m*m
Packing configuration	504 Pcs./ 20 ft, container; 1068 Pcs./ 40 ft, container

Packaging

Customers packing requirement is acceptable.

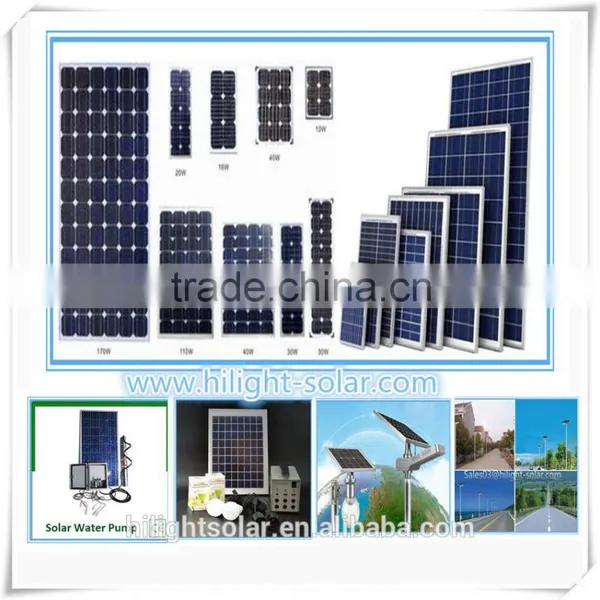

Projects&Application

Shipping & Payment

By Sea	Delivery from Qingdao, Shanghai or Ningbo seaport.
By Air	Departure from Qingdao, Beijing or Shanghai Airport
By Express	Post by DHL,UPS, TNT, FEDEX

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 30,000 usd, we can accept L/C at sight
	Trade Assurance	100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount
	Western Union	Amount lower than 5000usd
	Paypal
Delivery time	10~15days after receiving payment for one container

Warranty

10 years for product defects in materials & workmanship
25 years transferrable power output warranty	10 years at 90% of the minimal rated power output
	25 years at 80% of the minimal rated power output

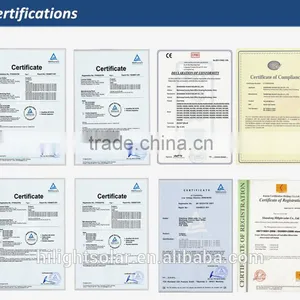

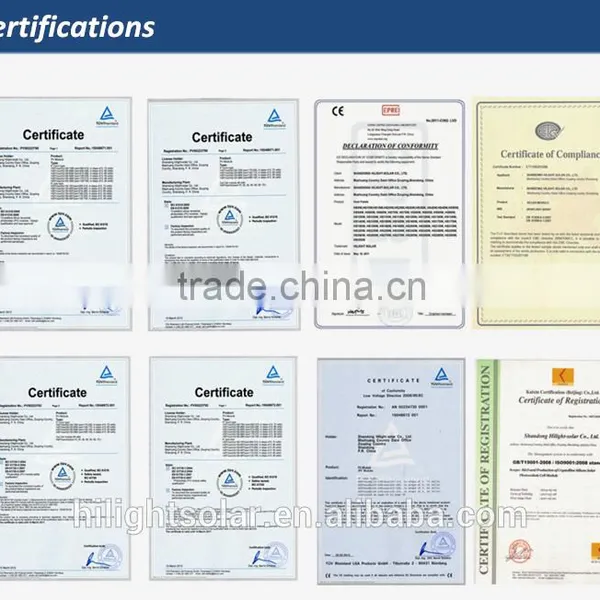

Certifications

Our Team

FAQ

1.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?

Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.

2.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.

3.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.

4.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.

5.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.

Quality is the Soul of an Enterprise

Hilight Solar----Professtional & Reliable Solar Panel Manufacture in China.
