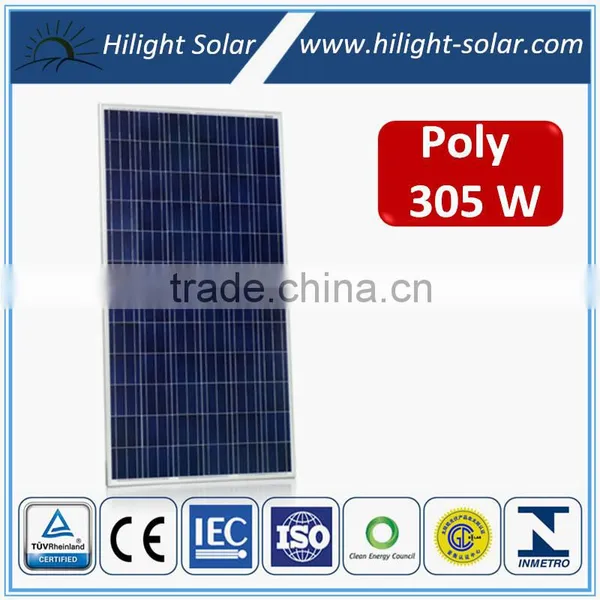

High Efficiency 305W Poly Solar PV Module, PV Solar Panels With CE, CEC, TUV, IEC, ISO Certificates

High Efficiency 305W Poly Solar PV Module, PV Solar Panels With CE, CEC, TUV, IEC, ISO Certificates thumbnail-1
High Efficiency 305W Poly Solar PV Module, PV Solar Panels With CE, CEC, TUV, IEC, ISO Certificates photo-1
US$ 0.42 - 0.52 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hilight Solar
Model Number:
HSPV305Wp156-72P
Contact Supplier Request Quote Chat Now
Shandong Hilight-Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hilight Solar
Model Number HSPV305Wp156-72P
Material Polycrystalline Silicon

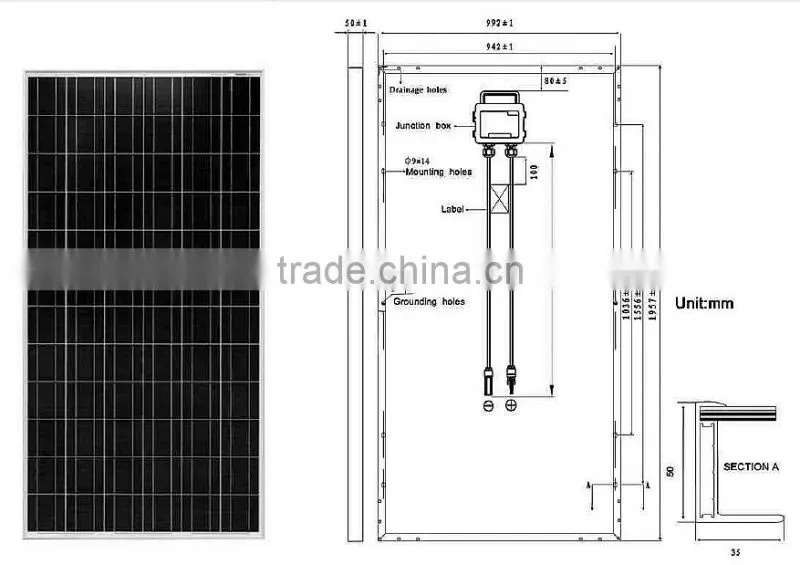

Size 1956*992*50mm
Number of Cells 72
Max. Power 305W

High Efficiency 305W Poly Solar PV Module, PV Solar Panels  with CE, CEC, TUV, IEC, ISO certificates

Product Description

High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates

Module Type                                                                                              HSPV305Wp156-72P
Maximum power at STC (Pmax) 305w
Maximum power voltage (Vmp)  36.2
Maximum power current  (Imp) 8.43
Open circuit voltage (Voc) 44.2
Short circuit current  (Isc)  9.08
Nominal Operating Cell Temperature 45 ± 2°C
Temperature coefficients of Isc  +0.049% /°C
Temperature coefficients of Voc  -0.340% /°C
Temperature coefficients of Pmax  -0.430% /°C
Standard Test Conditions  (STC) Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance 0~ +5W



Solar Cell

72(6x12) Poly solar cells 156 x 156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box  IP65 rated
Cable s/Connectors 4.0 mm*mm 900mm /   MC4 or compatible connectors



Maximum System Voltage                       DC1000V (IEC)
Maximum Series Fuse 15  A
Operating Temperature  -40℃~+85℃
Storage Temperature  -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Module Area (m*m) 1.94m*m
Packing configuration 230 Pcs./ 20 ft, container;  504 Pcs./ 40 ft, container



High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates

High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates



 High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates
Packaging

High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates

Customers packing requirement is acceptable.

Projects&Application

 High Efficiency 305W Poly Solar PV Module, PV Solar Panels with CE, CEC, TUV, IEC, ISO certificates

Shipping & Payment



By Sea Delivery from Qingdao, Shanghai or Ningbo seaport.
By Air Departure from Qingdao, Beijing or Shanghai Airport
By Express Post by DHL,UPS, TNT,  FedEx.

Payment Terms T/T EXW 30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L
CIF
L/C L/C amount above 30,000 usd, we can accept L/C at sight
Trade Assurance

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount
Western Union Amount lower than 5000usd
Paypal
Delivery time 10~15days after receiving payment for one container



Warranty

10 years for product defects in materials & workmanship
25 years transferrable power output warranty 10 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output



Certifications

Our Team





FAQ

1.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?

Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.

2.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.

3.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.


4.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.


5.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.
