120W Poly PV Solar Panel, Mono PV Solar Module

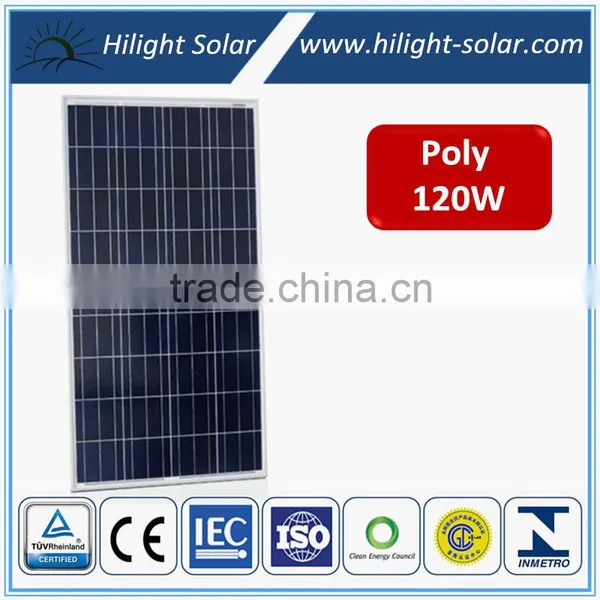

120W Poly PV Solar Panel, Mono PV Solar Module photo-1

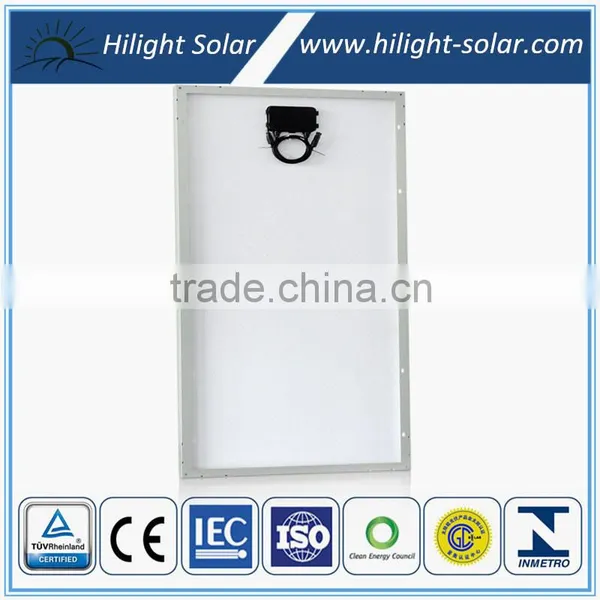

120W Poly PV Solar Panel, Mono PV Solar Module photo-2

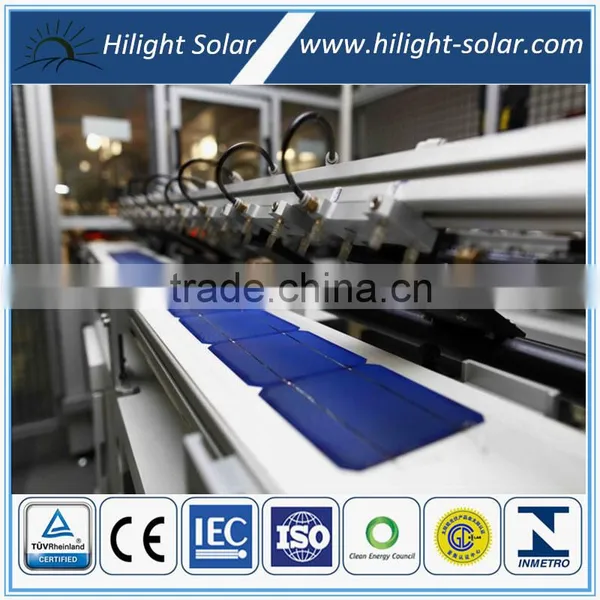

120W Poly PV Solar Panel, Mono PV Solar Module photo-3
120W Poly PV Solar Panel, Mono PV Solar Module photo-4

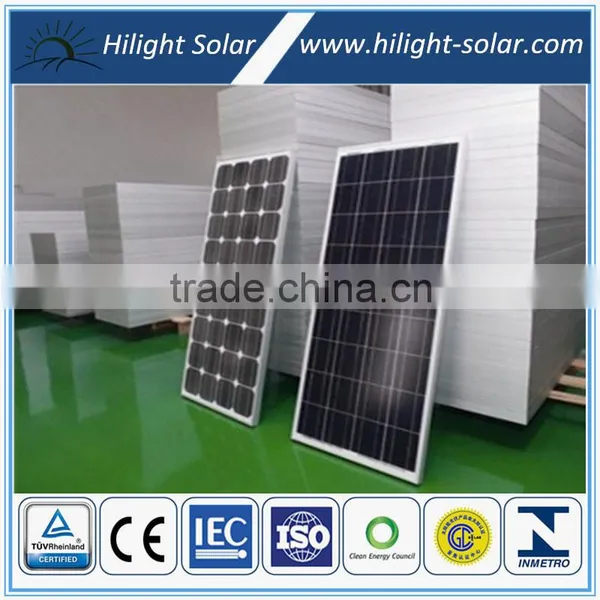

120W Poly PV Solar Panel, Mono PV Solar Module photo-5
120W Poly PV Solar Panel, Mono PV Solar Module photo-6
US$ 0.47 - 0.57 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hilight Solar
Model Number:
HSPV120Wp156-36P
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hilight Solar
Model Number HSPV120Wp156-36P
Material Monocrystalline Silicon

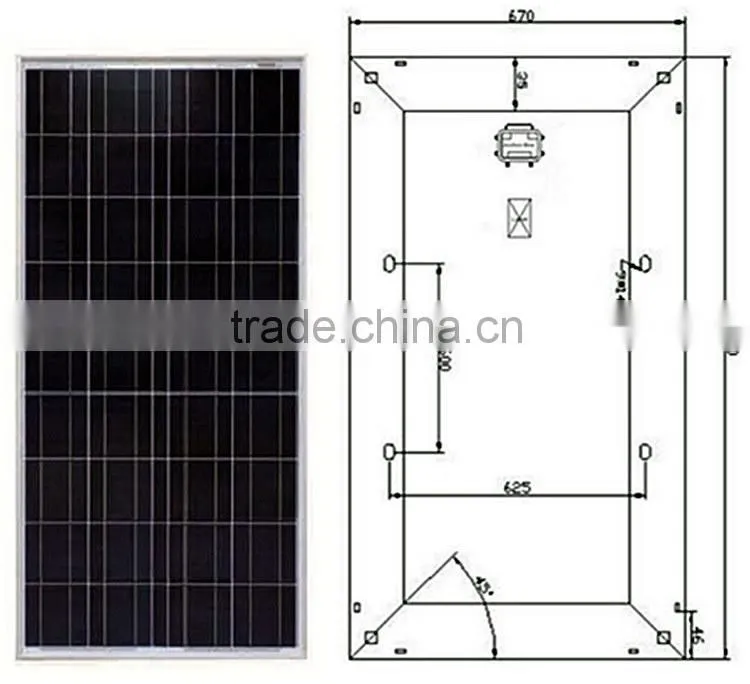

Size 1200*670*30mm
Number of Cells 36 pieces
Max. Power 120Wp

Tuv Certified Solar Pv Panel 120w, Solar Panels, solar module, pv solar panel, solar pv panel, photovoltaic module, panel solar, pv module, solar pv module



Product Description



 120W Poly PV Solar Panel, Mono PV Solar Module



Module Type                                                                                              HSPV120Wp156-36P
Maximum power at STC (Pmax) 120w
Maximum power voltage (Vmp)  17.6
Maximum power current  (Imp) 6.82
Open circuit voltage (Voc) 22.8
Short circuit current  (Isc)  7.34
Nominal Operating Cell Temperature 45 ± 2°C
Temperature coefficients of Isc  +0.049% /°C
Temperature coefficients of Voc  -0.340% /°C
Temperature coefficients of Pmax  -0.430% /°C
Standard Test Conditions  (STC) Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance 0~ +5W



Solar Cell

36(4x9) Mono solar cells 156 x 125 mm

Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box  IP65 rated
Cables/Connectors 4.0 mm*mm 900mm / MC4 or compatible connectors



Maximum System Voltage   DC1000V (IEC)
Maximum Series Fuse 15  A
Operating Temperature  -40℃~+85℃
Storage Temperature  -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Module Area (m*m) 0.68m*m
Packing configuration 35 Pcs./ Pallet



120W Poly PV Solar Panel, Mono PV Solar Module120W Poly PV Solar Panel, Mono PV Solar Module



 120W Poly PV Solar Panel, Mono PV Solar Module
Packaging

120W Poly PV Solar Panel, Mono PV Solar Module

Customers packing requirement is acceptable.

Projects&Application

120W Poly PV Solar Panel, Mono PV Solar Module

Shipping & Payment



By Sea Delivery from Qingdao, Shanghai or Ningbo seaport.
By Air Departure from Qingdao, Beijing or Shanghai Airport
By Express Post by DHL,UPS, TNT,  FedEx.



Payment Terms T/T EXW 30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L
CIF
L/C L/C amount above 30,000 usd, we can accept L/C at sight
Trade Assurance

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Western Union Amount lower than 5000usd
Paypal
Delivery time 10~15days after receiving payment for one container
Warranty

10 years for product defects in materials & workmanship
25 years transferrable power output warranty 10 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output



Certifications



Our Team

FAQ

1.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?

Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.

2.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.

3.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.


4.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.


5.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.
