TUV IEC CE 260Wp PV Polycrystalline Solar Panel

TUV IEC CE 260Wp PV Polycrystalline Solar Panel photo-1
TUV IEC CE 260Wp PV Polycrystalline Solar Panel photo-2
TUV IEC CE 260Wp PV Polycrystalline Solar Panel photo-3
TUV IEC CE 260Wp PV Polycrystalline Solar Panel photo-4
TUV IEC CE 260Wp PV Polycrystalline Solar Panel photo-5
US$ 0.39 - 0.49 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hilight solar
Model Number:
HSPV260Wp156-60P
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hilight solar
Model Number HSPV260Wp156-60P
Material Polycrystalline Silicon

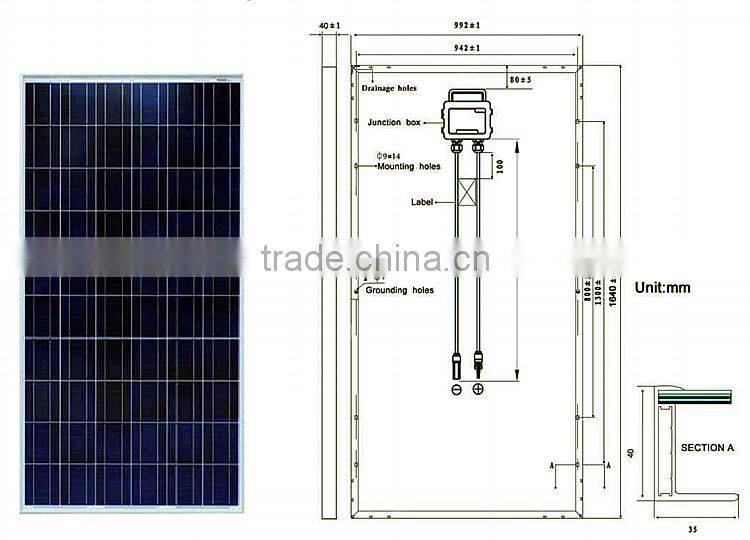

Size 1640 x 992x50mm
Number of Cells 60pcs
Max. Power 260W



TUV IEC CE 260Wp PV Polycrystalline solar panel



Product Description

 TUV IEC CE 260Wp PV Polycrystalline solar panel



Module Type                                                                                             HSPV260Wp156-60P
Maximum power at STC (Pmax)260w
Maximum power voltage (Vmp) 30.2
Maximum power current  (Imp)8.61
Open circuit voltage (Voc)36.7
Short circuit current  (Isc) 9.25
Nominal Operating Cell Temperature45 ± 2°C
Temperature coefficients of Isc +0.049% /°C
Temperature coefficients of Voc -0.340% /°C
Temperature coefficients of Pmax -0.430% /°C
Standard Test Conditions  (STC)Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance0~ +5W

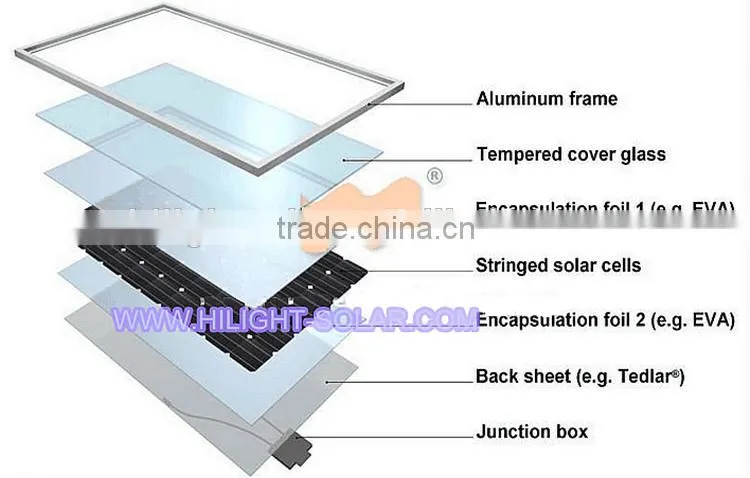

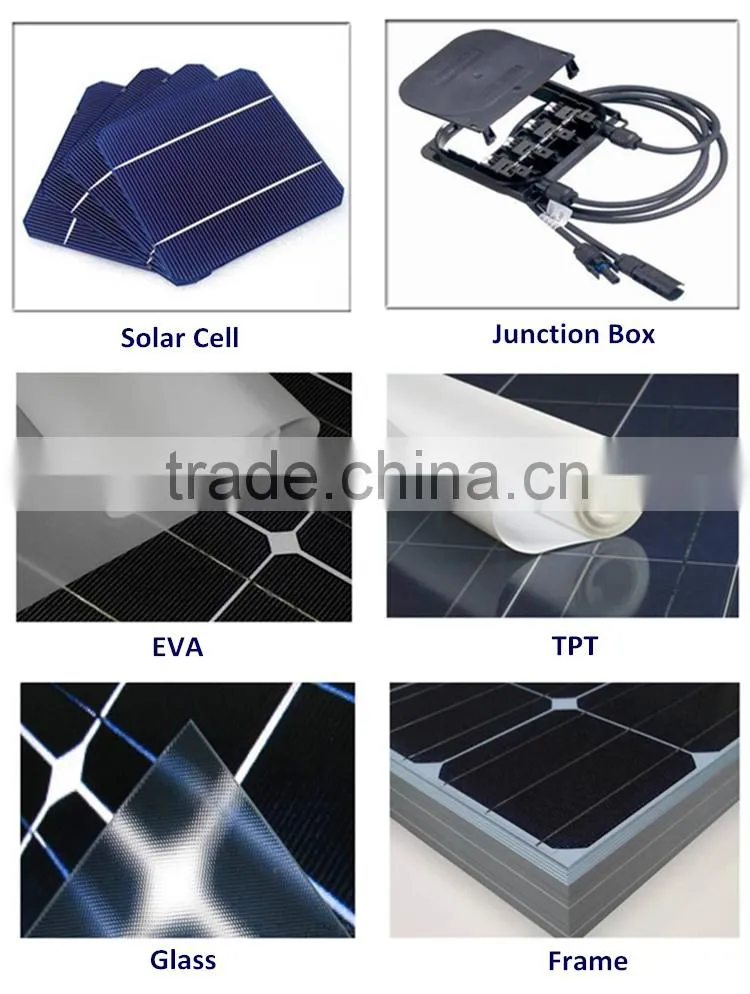

Solar Cell

60(6x10)  Poly solar cells 156 x 156 mm

Front Cover3.2 mm thick, tempered glass
Back CoverTPT (Tedlar-PET-Tedlar)
EncapsulantEVA (ethylene vinyl acetate)
FrameDouble-layer anodized aluminium alloy
Junction Box IP65 rated
Cables / Connectors4.0 mm*mm 900mm /   MC4 or compatible connectors



Maximum System Voltage                   DC1000V (IEC)
Maximum Series Fuse15  A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load2400Pa / 5400Pa
Application ClassClass A
Module Area (m*m)1.63m*m
Packing configuration342 Pcs./ 20 ft, container;  728 Pcs./ 40 ft, container



 TUV IEC CE 260Wp PV Polycrystalline solar panelTUV IEC CE 260Wp PV Polycrystalline solar panel







 TUV IEC CE 260Wp PV Polycrystalline solar panel
Packaging

TUV IEC CE 260Wp PV Polycrystalline solar panel

Customers packing requirement is acceptable.

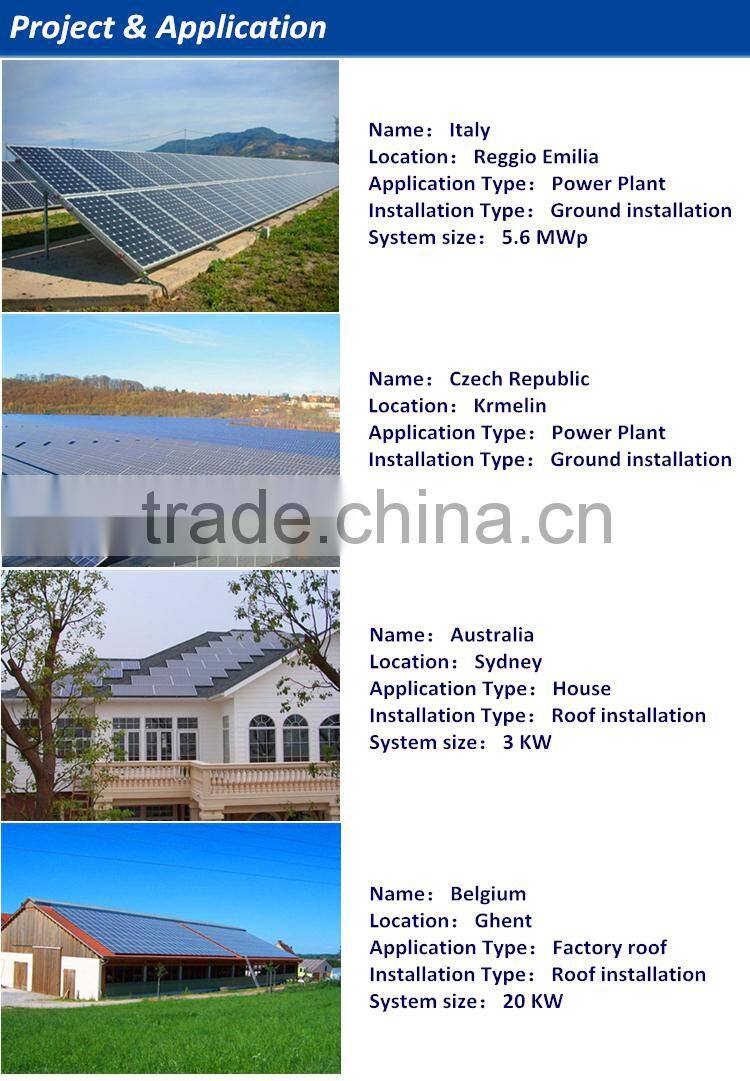

Projects&Application

 TUV IEC CE 260Wp PV Polycrystalline solar panel


Warranty



10 years for product defects in materials & workmanship
25 years transferrable power output warranty10 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output



Shipping & Payment

By SeaDelivery from Qingdao, Shanghai or Ningbo seaport.
By AirDeparture from Qingdao, Beijing or Shanghai Airport
By ExpressPost by DHL,UPS, TNT,  Fedex .



Payment TermsT/TEXW30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)30% T/T in advance, paid the balance against copy of B/L
CIF
L/CL/C amount above 30,000 usd, we can accept L/C at sight
Trade Assurance

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Western UnionAmount lower than 5000usd
Paypal
Delivery time10~15days after receiving payment for one container



Certifications



Our Team





FAQ

1.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?

Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.

2.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.

3.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.


4.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.


5.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.
