Specifications
- Hydraulic Rebar Straightening And Cutting Machine;- High Quality
- Factory direct
- Best Price
- Through ISO9001
Automatic Hydraulic GT4-14 Steel Bar Straightening And Cutting machine Soucing Agent
This kind of Steel Bar/Wire Straightening and Cutting Machine YGT4-14 for Rebar can be used for straightening and cutting Deformed Bar,Wire Rod,Steel Rebar,Round Bar,etc.
If you want to view the working of YGT4-14 Straightening and Cutting Machine,please copy the link here: /watch?v=9JSayFp2DPA
We have also light Type Straightening & Cutting Machine,please click the link to learn more.

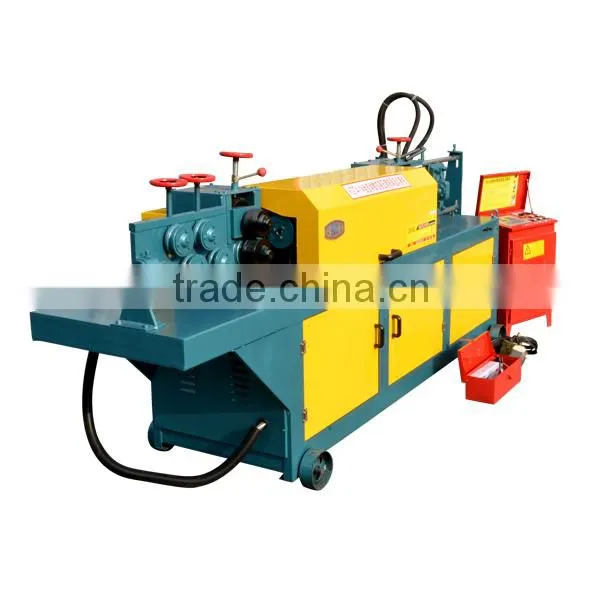

Picture Show:
Technical Parameter:
Model |
YGT4-14 |
Straightening Steel Bar Diameter |
4-14mm |
Cut Length |
650-8500mm |
Motor power |
7.5Kw |
Voltages |
240V,m380V,415V... |
Straightening Speed |
48m/min |
Length of The Bracket |
8m(or longer) |
Net Weight |
1300kg |
Features:
1. Worry-saving: The main components can LAST FOR TEN YEARS which almost cost you nothing for maintenance.
2. Time-saving: TWO TIMES THE CUTTING NUMBER of the normal steel bar cutter.
3. Labor-saving: Cut different sizes of steel bar WITHOUT CHANGING the blade.
4. Easy to operate.
5.Working Place:The most suitable working place should be harden ground.Please laying star tiles,iron plate, wooden plate or something smooth for normal earth.
1. Adopt the TOTALLY ENCLOSED TYPE CASE, featured with high security.
2. The straightening motive power came from the large power motor which can ensure a LONG TIME STABLE OPERATION.
3. The installation of traction and straightening motive power adopt ADJUSTABLE STRUCTURE, which is easy to maintain.
4. Adopt cartridge valve, featured with COMPACT STRUCTURE and CONVENIENT ADJUSTMENT.
5. The oil-way controlling part is hidden under the panel which can RESIST DUST EFFCTIVELY.
6. The feed inlet adopt rotary scuff sleeve, featured with SIMPLE STRUCTURE and EASY CHANGE.
7. Part of the funnel structure was closed which is convenient for DUST-CLEANING.
8. The structure of the cradle is more RESONABLE, as well as new appearance
9. Adopt movable operating button which is EASY TO OPERATE.

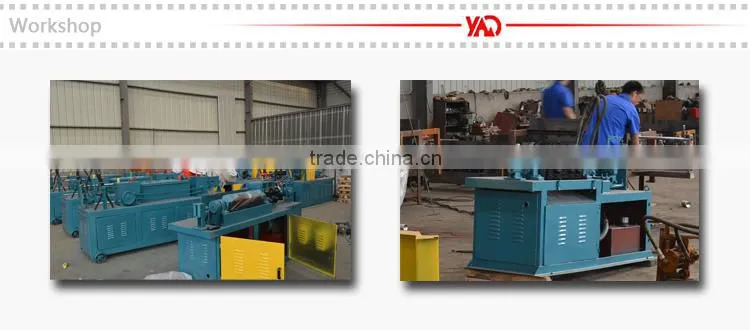

Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
Standard export package,fumigation-free wooden case to protect the machine from long-distance delivery.
Production Capacity:1000 sets/month
Exclusive exhibition of our company can show all the machines and accessories. Sincerely welcome your visit and on-site testing machine.
Standard production, strict and regulate assembly line work, strict quality control and inspection.
Professional sales and after sale service team, timely and efficiently to solve your problem.
Our company has been approved by the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit, consult and negotiate business.
FAQ:

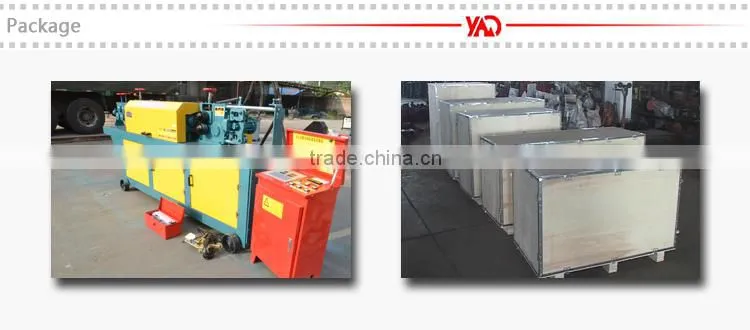

1.Package:
Free-fumigation Safe Export Wood Case.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3.OEM and ODM:
Changing on design or color: acceptable(welcome)
Develop on artwork and sketch: acceptable
4.QC:
Third party inspection:acceptable
1 year guarantee for quality problems.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
7.Available Shipment:
FOB Qingdao
FOB Shanghai
