PZ-7 Electric Dry-Wet Mix Gunite Concrete Spraying Shotcrete Machine Wholesale Price
This is a kind of Dry type Shotcrete Machine, it has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc .
Pictures Show:
Technical Parameter of Pnematic Shotcrete Machine:
Model |
PZ-7 Dry Shotcrete Machine |
Output |
7-9m³/h |
Max. Convey Distance |
Horizontal:200m; Vertical:20m |
Max. Aggregate. Size |
Φ20mm |
Hose Inner Size |
Φ64mm |
Operating Pressure |
0.2-0.6MPa |
Air Consumption |
8-9m³/min |
Air Motor Power |
5.5KW(7.5hp) |
Dimension |
1350mmx750mmx1200mm |
Net Weight |
720KG |
What can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
Another important feature is the long distance transfer,which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20m vertically).

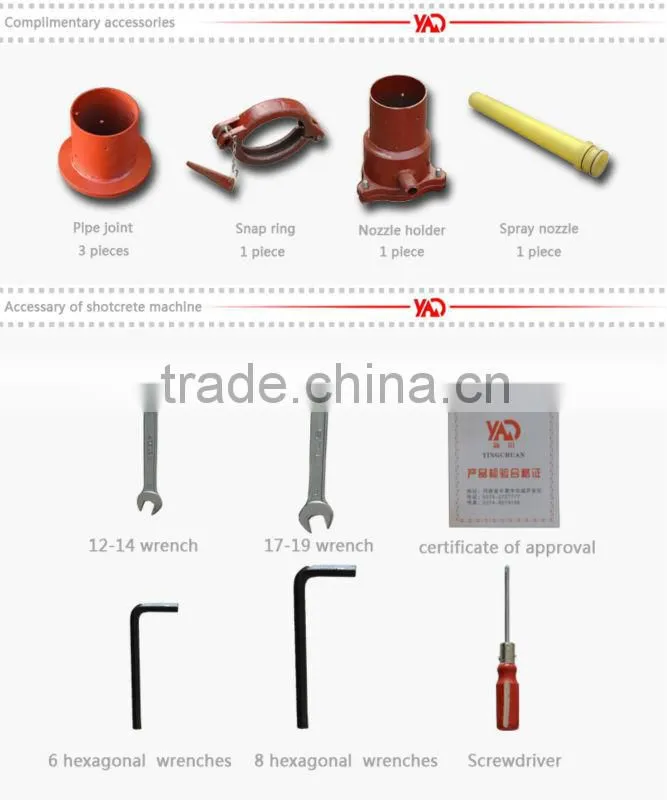

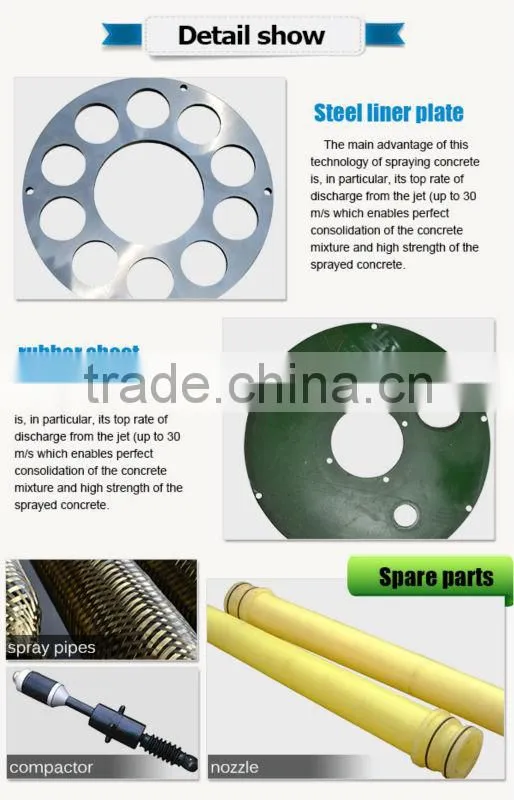

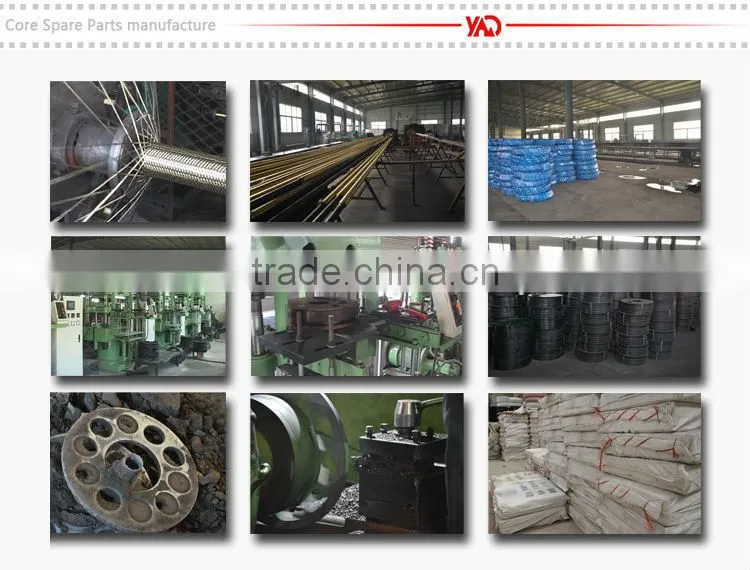

We have the professional production line for the main wearing parts of shotcrete machine:
1.Delivery Rubber Hose: More durable than normal kind of rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.
2.Rubber Sealing Plate: Adopt nature rubber, service life can be up to 400m3.,while the normal one is only 130m3.
3.Rotor Disk: Casting by quality carbide tools, service life is 3-5 times longer than normal kinds,can meet 600-800m3,it's prefect for the rotor type shotcrete machine.
Warm tips: Please prepare some original accessories when purchasing the machine.
Adopt standard export package,fumigation-free wooden case to protect the machine from damage in long-distance transit.

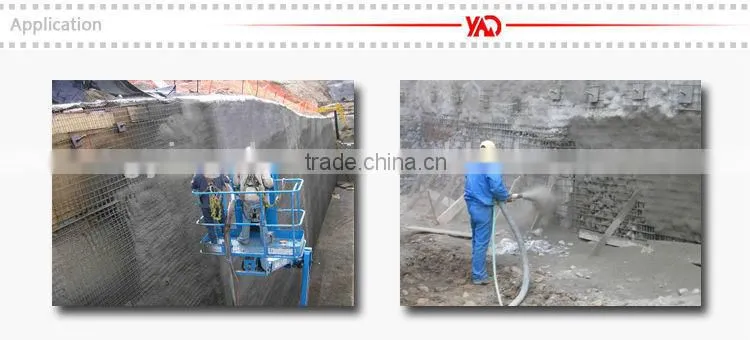

Shotcrete Machine Application:
Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.

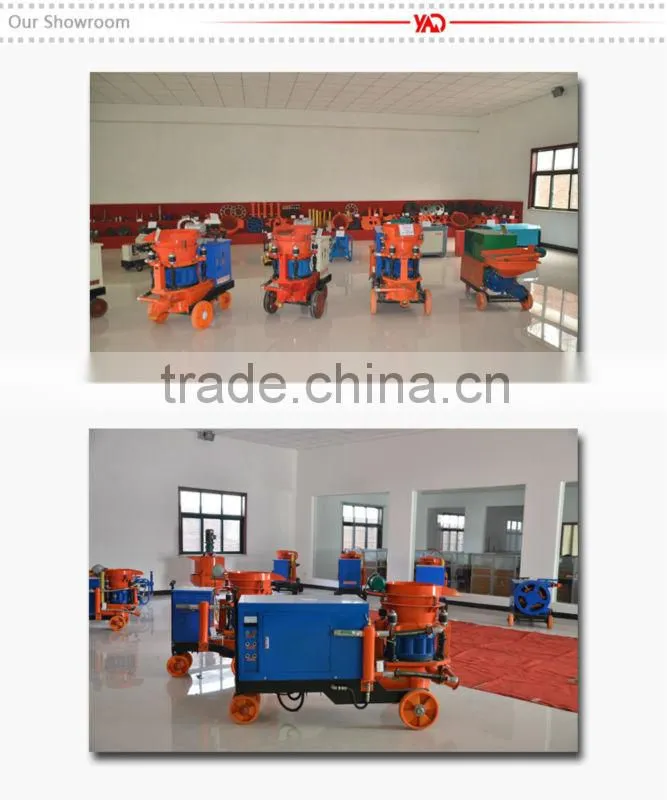

Exclusive exhibition of our company can show all the machines and accessories. Sincerely welcome your visit and on-site testing machine.
Standard production, strict and regular assembly line work, strict quality control and inspection.
Professional sales and after sale service team, timely and efficiently to solve your any problem.
Our company has been approved by the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit, consult and negotiate business.
FAQ:
1.Package:
Free-fumigation Safe Export Wood Case.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3.OEM and ODM:
Changing on design or color: acceptable(welcome) Develop on artwork and sketch : acceptable
4.QC:
Third party inspection:acceptable
1 year guarantee for quality problems
5. Delivery time:
10-15days after order confirmed
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable )100%TT in advance (specially for air shipment or small amount)
7. Available Shipment:
FOB Qingdao
FOB Shanghai
