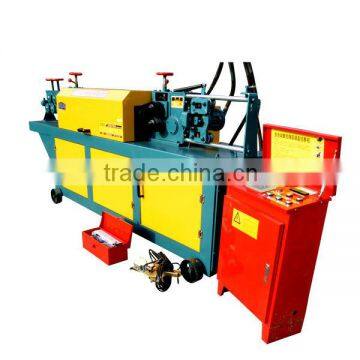

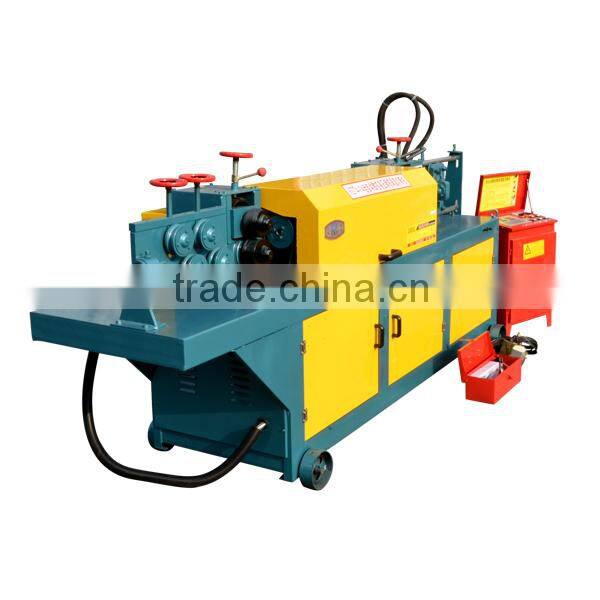

China HOT-SALE Automatic Steel coil wire straightening and cutting machine YGT4-14 machine:
Characteristics:
1. Worry-saving: The main components can LAST FOR TEN YEARS which almost cost you nothing for maintenance.
2. Time-saving: the working effiency is twice higher than normal ones.
3. Labor-saving: Cut different sizes of steel bar WITHOUT CHANGING the blade.
4. Easy operation.
Technical parameters:
model |
YGT4-14 |
Straightening steel bar diameter |
4-14mm |
Tube Cut length |
650-8500mm |
The motor power |
5.5Kw |
Straightening speed |
45m/min |
Length of the bracket |
8m(longer) |
The weight |
1300kg |

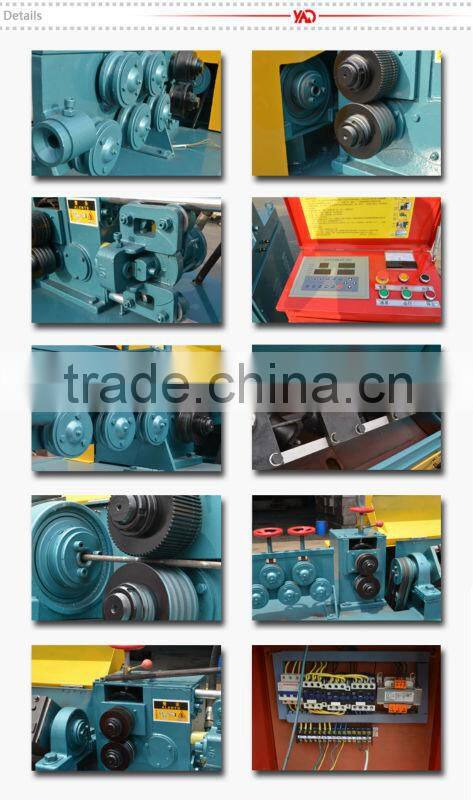

Description of details:
1. Adopt the tatally enclosed type case , featured with high security.
2. The straightening motive power came from the large power motor which can ensure a long time stable operation..
3. The installation of traction and straightening motive power adopt adjuctable structure, which is easy to maintain.
4. Adopt cartridge valve, featured with compact structure and convenient adjustment .
5. The oil-way controlling part is hidden under the panel which can resist dust effctively.
6. The feed inlet adopt rotary scuff sleeve, featured with simple structure and easy change..
7. Part of the funnel structure was closed which is convenient for dust-cleaning.
8. The structure of the cradle is more resonable, as well as new appearance
9. Adopt movable operating button which is easy to operate.

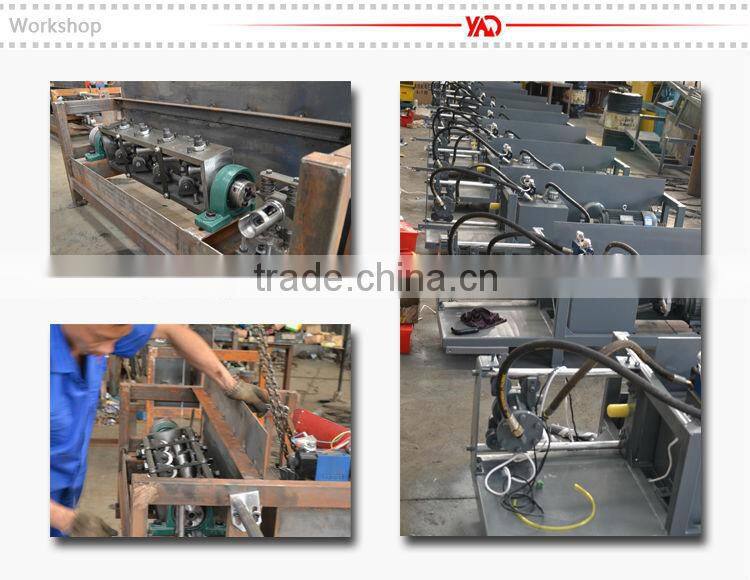

Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
Standard export package,fumigation-free wooden case to protect the machine from long-distance delivery.
Productivity capacity:1000 sets/month
Professional sales and after sale service team, timely and efficiently to solve your problem.
Our company go through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit, consult and negotiate business.
