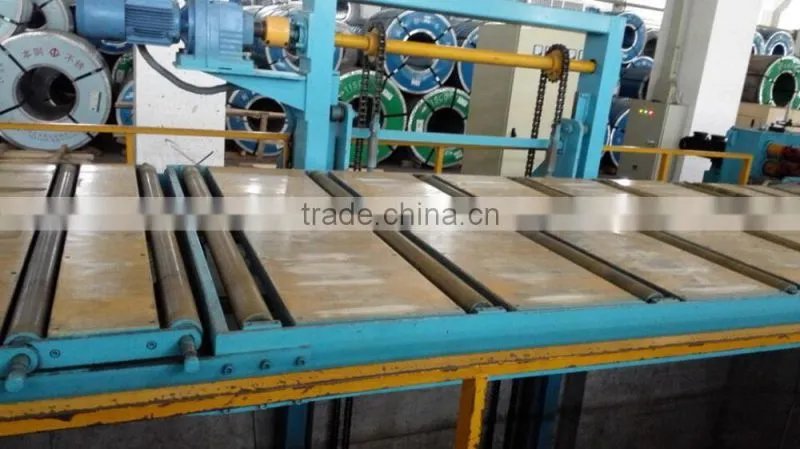

Help CenterCUT TO LENGTH MACHINE LINE, SLITTING LINE,COIL STEEL SLITTER MACHINE 1X1250
Related Products
-
Simple Cutting LineUS$ 60,000 - 70,000MOQ: 1 Set -
Bend Die, Tools Die on Press Brake, Punch BladeUS$ 300 - 2,000MOQ: 1 Set
-
Bend Tooling, Bending Die, Blade on Press Brake, Blade on Bending MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
Bend Tooling, Bending Die, Blade on Press Brake, Top Tooling on Bending MachineUS$ 300 - 400MOQ: 1 Set
-
Bend Tooling, Bending Die, Press Brake Die, Brake Tooling BlockUS$ 300 - 1,000MOQ: 1 Set

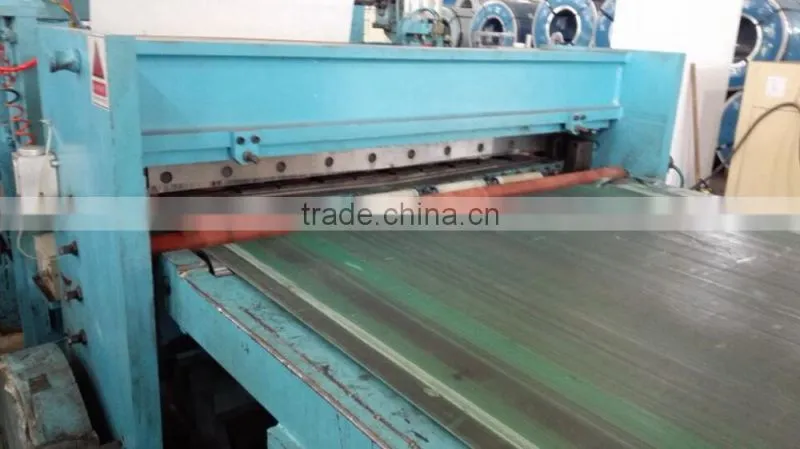

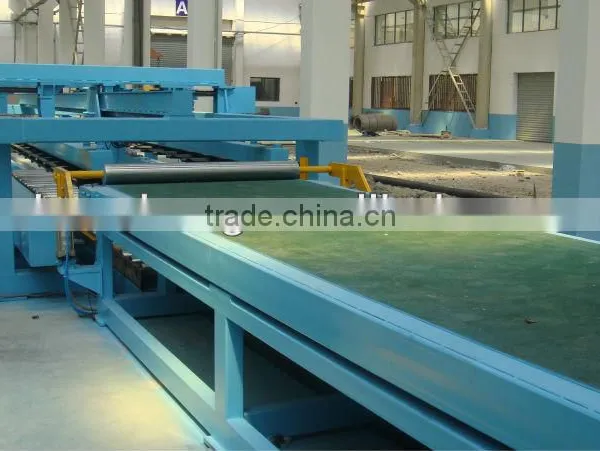

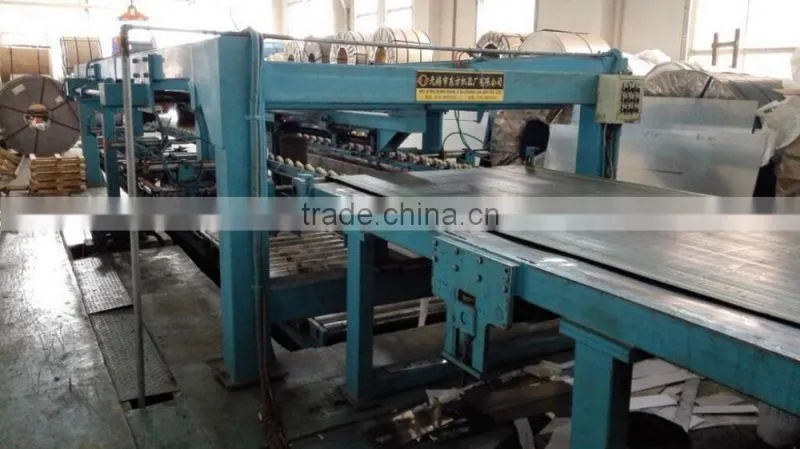

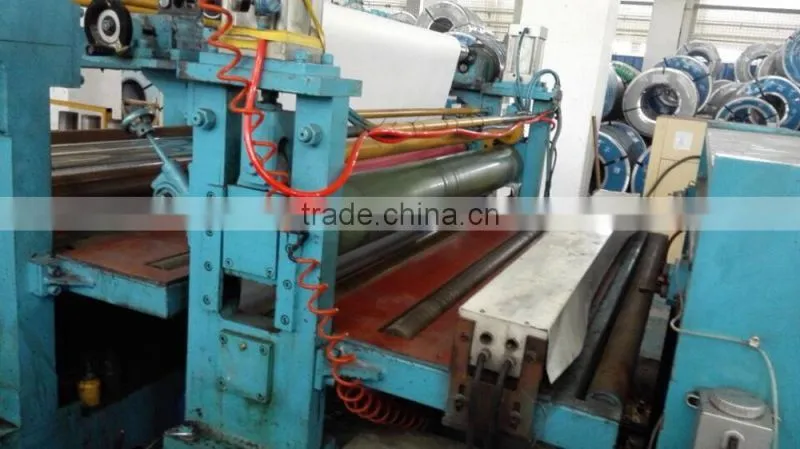

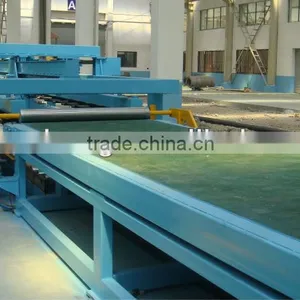

JPB13-6x1600 CUT TO LENGTH MACHINE LINE
1,Plate material:≤235MPa
2,Straighten thickness:1.5~6.0mm
3,Straighten width:800~1600mm
5,Feeding width:1650mm
6,Coil inner diameter:600~800mm
7,Coil outer diameter:1000~2000mm
8,Coil weight:≤ 20000kg
9,Length:≤12000mm(Size forming length adjust at random)
10,Size forming precision:≤±1.5mm/2M
11,Diagonal precision:≤±1.5mm/2M
12,Straighten precision:≤±2mm/m2(Standard)
13,Speed:Vmax≤25m/min(Adjustable)
(Cutting pieces in fact:3~4 pieces/min on the length of 6000mm)
Total power:~110KW
COMBINED PARTS
1, hydraulic charging cart
2, hydraulic uncoil
3, hydraulic leading machine
4, hydraulic feeding machine
5, transition working table I
6, limited working table

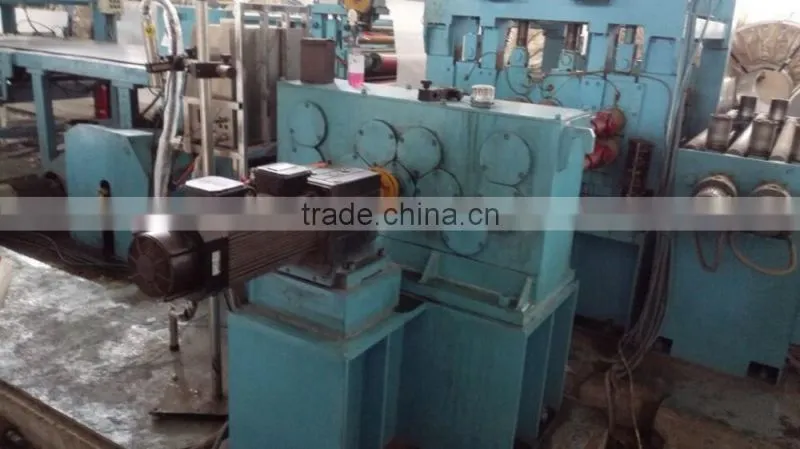

7, straightening main machine

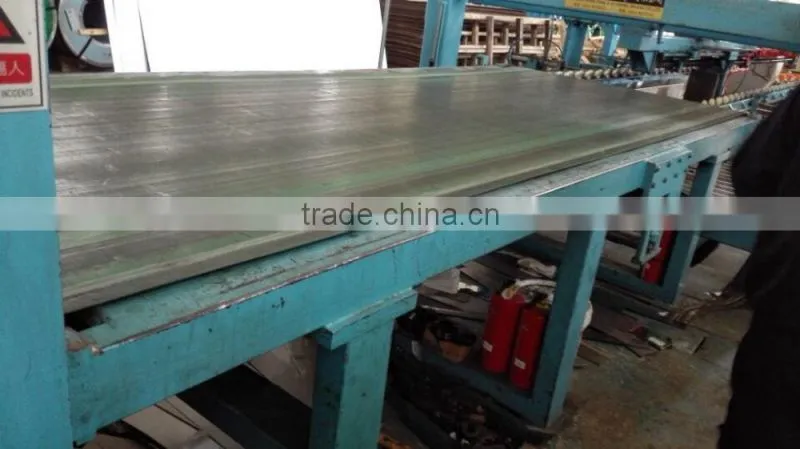

8, length measure working table
9, hydraulic shearing machine
10,transition working table II
11,settling working table
12,collate stuff device
13,hydraulic pneumatic system
14,electric control system
