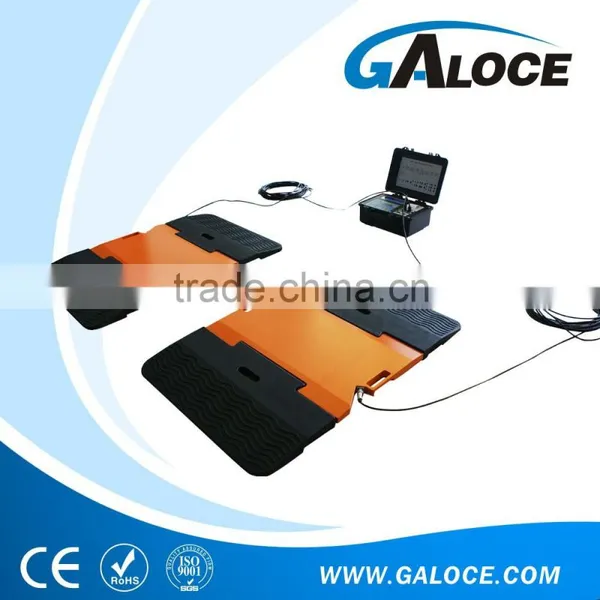

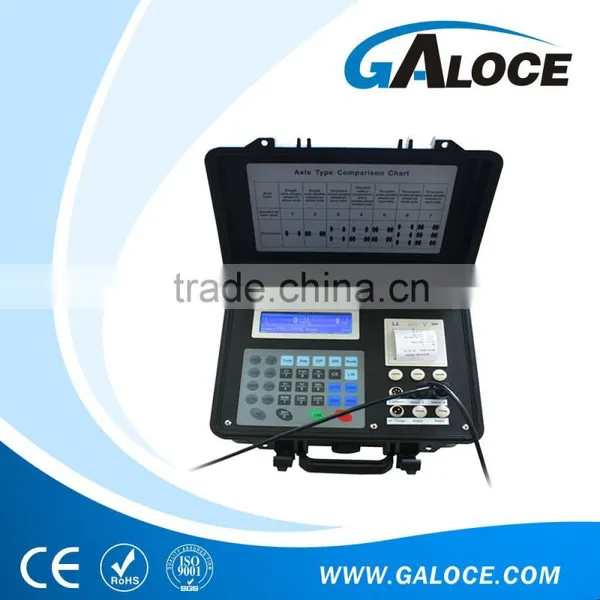

GPWA02 Digital Portable axle vehicle weighing scale

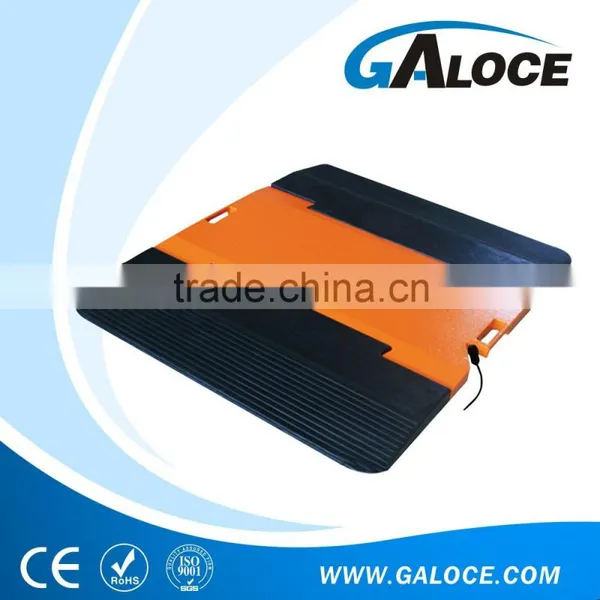

Pad Dimension

Ramp Dimension

Max Axle Capability

2 pads (T)

Details

400x300x40mm

400x250mm

≤10

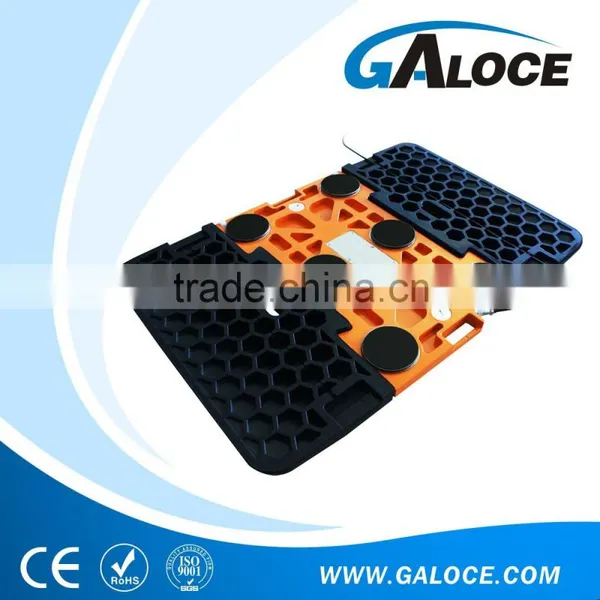

6 load cells

(in 300x400 dimension,

4 load cells installed)

In-Motion Speed:≤8km/h

400x5000x40mm

400x250mm

≤20

700x450x40mm

700x350mm

≤30

900x500x40mm

900x350mm

≤40

Weighing

Capability

Wheel Weight ≤20 T

Temp. Compensation Range

-10~+50℃

Axle Weight ≤40 T

Sensitive Influence by Temp.

0.1%/10℃

Whole Truck Weight ≤ 1000 T

(Maximum 7 axles per truck)

Zero Temperature Influence

0.1%/10℃

Static Accuracy

±0.07%

In-Motion Accuracy

±2%

Excitation Voltage

20V (DC)

Sensitive

1±0.2 MV/V

Non-linearity

≤0.10%

Insulation Resistance

≥5000 MΩ(100VDC)

Repeatability

≤0.01%FS

Zero Output

4~10%

Working Temperature

-40~+80℃

Input Impedance

120±10Ω

Output Impedance

110±10Ω

Overload Protection

120%

* For both Static Weighing & In-Motion Weighing

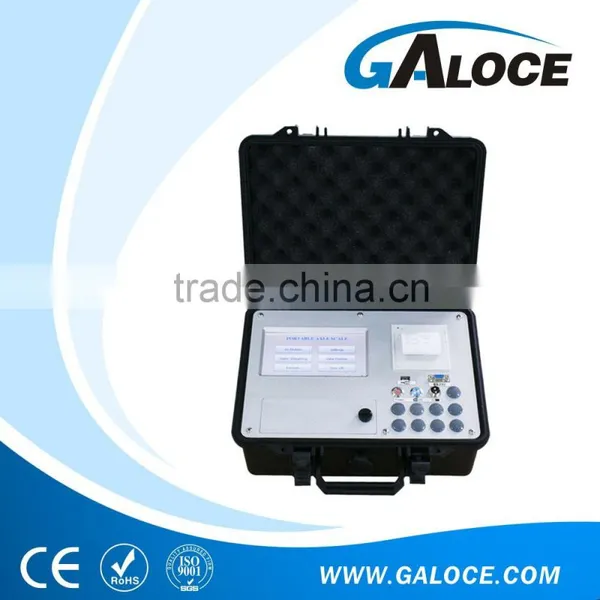

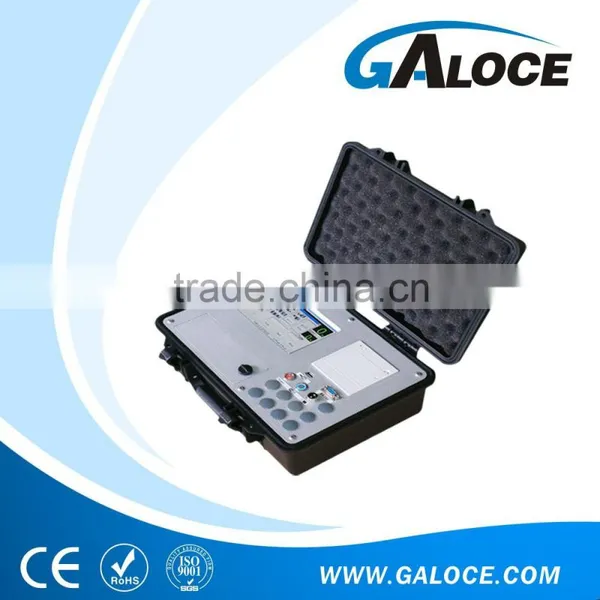

* Highdefinition Touch Screen

* With high speed thermal Printer

* Standby working 40 hours battery with power save function

* Running on Windows CE 6.0 system with good compatibility

* FREE Program upgrade

* 2 Channels system as default

* 4 / 6 / 8 channels system optional

* RS232, USB 2.0 as default

   »on Wireless edition USB 2.0 & WIFI as default

   »Blue tooth & USB 3.0

* Default 8" screen , 10", 13"  option

* Unlimited records storage

* Each Wheel Weight

* Each Axle Weight

* Total truck weight

* Excel, text or database output

* Multiple languages supported

    »Default: English and Chinese

    »Other languages are optional

* Wireless version 30m avaiable

* Starting LOGO customizable

* SMS message, iOS application

»Android application option

Free consult support

          24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

        All staffs of GALOCE are open, honest and communicative to customers with respect.

Customization

         Provide OEM service, most products are customizable (please consult with us for details).

After sale service

         One year warranty since product shipped out. Fully technical support for application.

1. What essential information is needed for product selection?

         Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?

         A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.

         B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?

         T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.

4. When production could be arranged?

         As soon as the payment was received.
