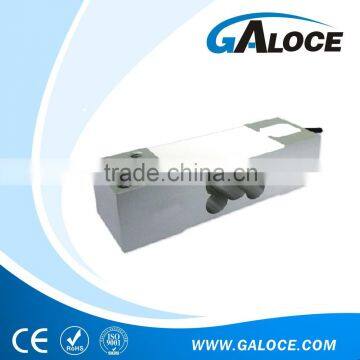

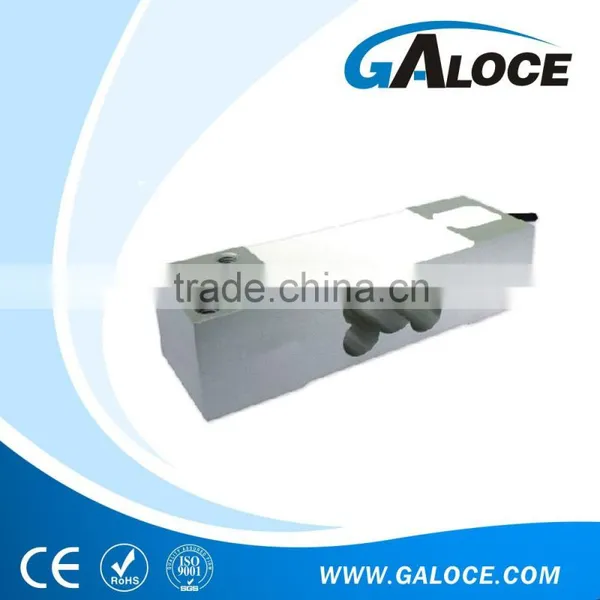

GPB149 Electronic strain gauge load cell 150kg
Features
The product is alloy aluminum construction. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.
Product details
Specifications
Specifications | |
Range: 100, 150, 200, 250, 300, 350, 500 (KG) | |
Accuracy : C2 | Temp. effect on span(%F.S/10℃): ±0.02 |
Comprehensive error(%F.S) : ±0.02 | Temp. effect on zero(%F.S/10℃) : ±0.03 |
Rated output(mv/v) : 2.0±0.1 | Compensated temp. range(℃ ) : -10~+40 |
Creep(%F.S/30min) : ±0.02 | Use temp. range(℃ ) : -20~+60 |
Zero balance(%F.S) : ±1.0 | Excitation voltage(V) : 9~12(DC) |
Input resistance(Ω) : 405±10 | Safe overload (%F.S) : 120 |
Output resistance(Ω) : 350±3 | Ultimate overload (%F.S) : 150 |
Insulation resistance(MΩ) : ≥5000(100VDC) | Defend grade : IP65 |
Dimension
Application
Process flowchart
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from China within 15 working days after payment had been received. Express could be used including DHL, Fedex, EMS, TNT etc. Orders could be tracked with reference we offered.
Free consult support |
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
One year warranty since product shipped out. Fully technical support for application.
|
1. What essential information is needed for product selection? |
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
As soon as the payment was received.
|
