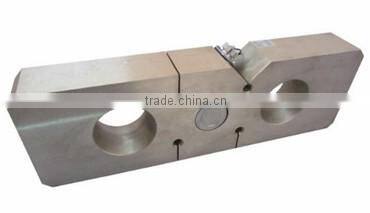

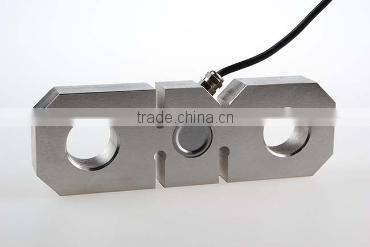

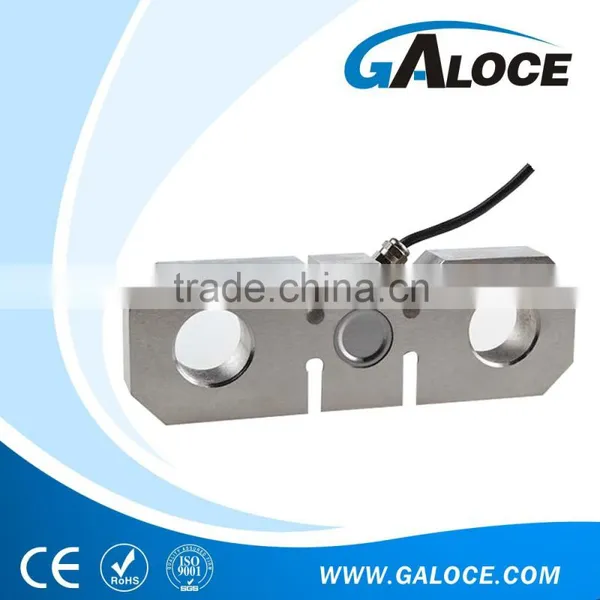

GSL307 10 ton hook hanging scale load cell
Features
1. Good over load resistance
2. Fully sealed construction
3. High accuracy
Application
Crane scales, ports, docks, lifting overload protection equipment

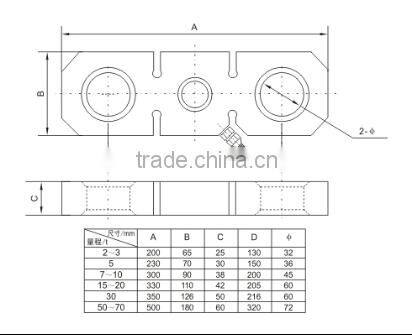

Size (mm)
Range (T) | A | B | C | D | φ |
2-3 | 200 | 65 | 25 | 130 | 32 |
5 | 230 | 70 | 30 | 150 | 36 |
7-10 | 300 | 90 | 38 | 200 | 45 |
15-20 | 330 | 110 | 42 | 205 | 60 |
30 | 350 | 126 | 50 | 216 | 60 |
50-70 | 500 | 180 | 60 | 320 | 72 |
Specification
Range | 2, 3, 5, 7, 10, 20, 30, 50, 100(t) |
Comprehensive precision | 0.03 |
Rated output | 2.0mv/v |
Creep | ±0.02F.S /30min |
Zero output | ±1%F.S |
Temperature effect on zero | ±0.02F.S /10℃ |
Temperature effect on output | ±0.02F.S /10℃ |
Operating temperature range | -20℃~65℃ |
Input resistance | 380±10 |
Output resistance | 380±3 |
Insulation resistance | >5000MΩ |
Safe load limit | 150%F.S |
Bridge voltage | Suggest 10VDC |
Material | Alloy steel |

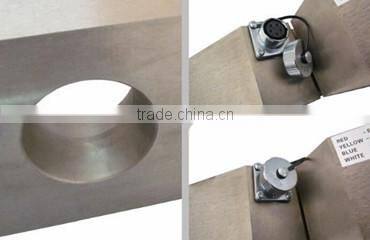

Product details
Free consult support |
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
One year warranty since product shipped out. Fully technical support for application.
|
1. What essential information is needed for product selection? |
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
As soon as the payment was received.
|
