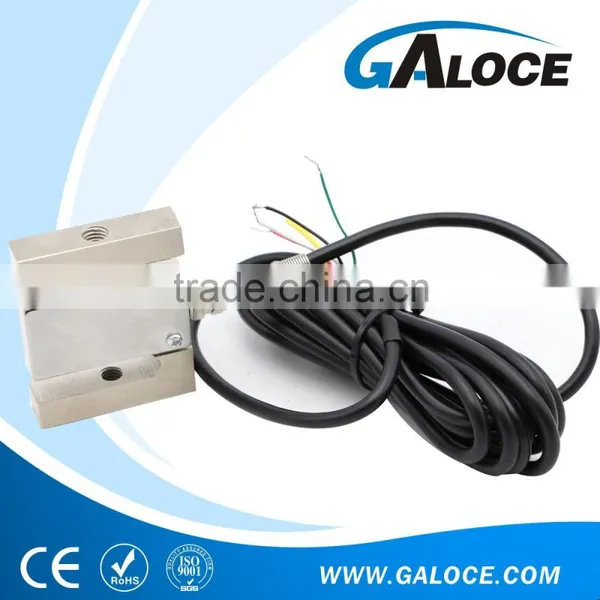

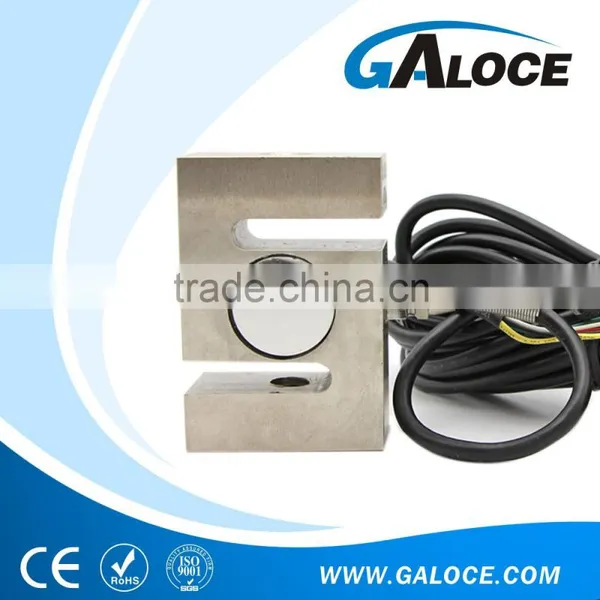

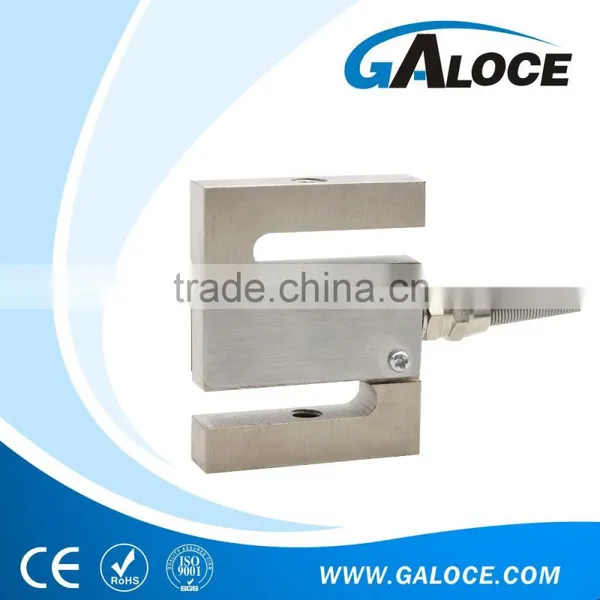

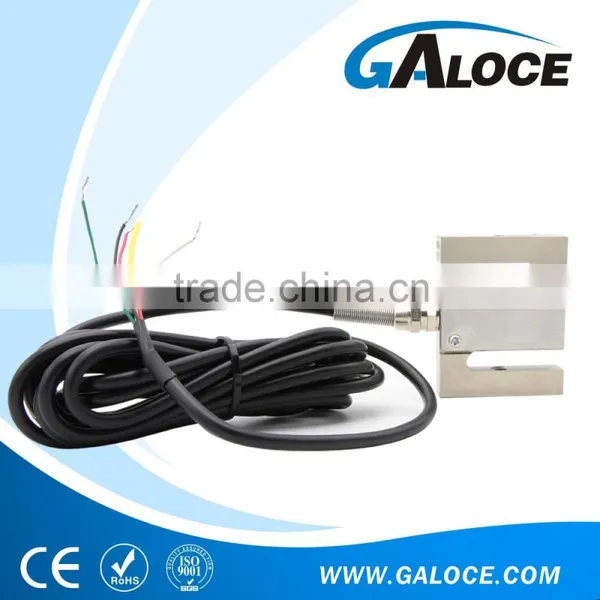

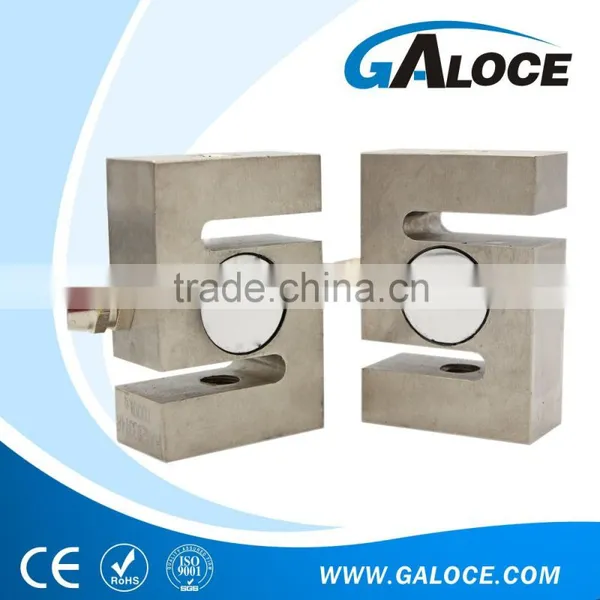

GSL301 S Type Load Cell Sensor 1000kg

Name: GSL301 S Type Load Cell Sensor 1000kg
Brand: GALOCE
SKU: 127697355
Availability: InStock

US$ 35 - 75 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

GALOCE

Model Number:

GSL301

Xi'an Gavin Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name GALOCE

Model Number GSL301

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

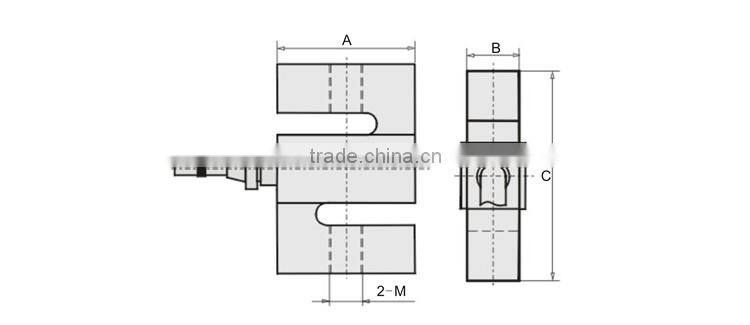

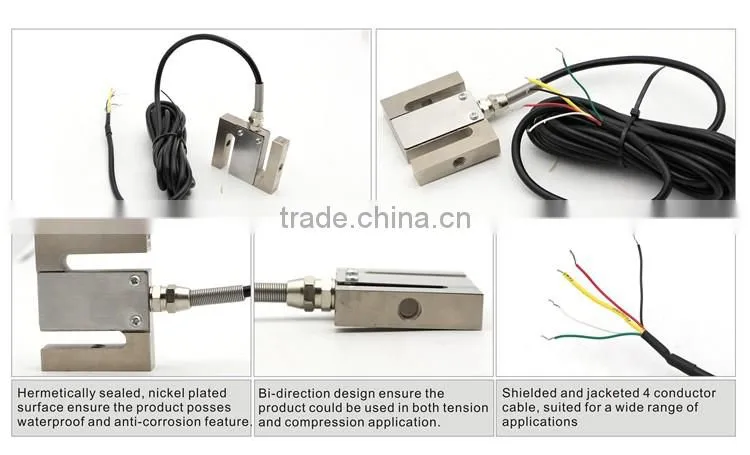

GSL301 S type load cell sensor 1000kg

Related Products

Product Description

Features

1. Made of alloy steel

2. With glue sealing and nickel plated surface, the product is waterproof and anti-corrosion, could work for various applications.

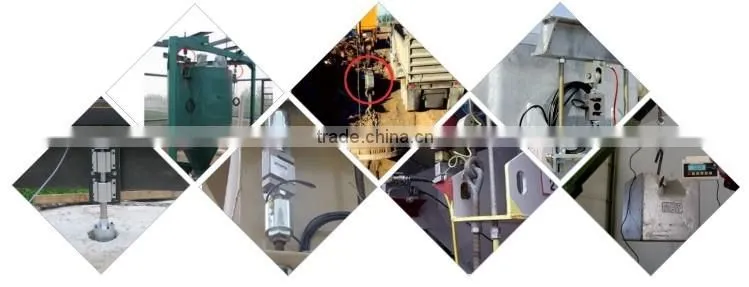

3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices.

Specification

Specification:
Range (KG): 10, 50, 100, 150, 200, 250, 300, 500, 1000, 2000, 5000
Accuracy: C2/ C3	Temp. effect on span (%F.S/10℃): ±0.017 & ±0.011
Comprehensive error (%F.S): ±0.03 & ±0.02	Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015
Rated output (mV/ V): 2.0±0.004	Compensated temp. range (℃): -10~+40
Creep (%F.S/30min): ±0.024 & ±0.016	Operation temp. range (℃): -20~+55
Zero balance (%F.S): ±1.0	Excitation voltage (V): 9-12(DC)
Input resistance (Ω): 350±5	Safe overload (%F.S): 150
Output resistance (Ω): 350±3	Ultimate overload (%F.S): 200
Insulation resistance (MΩ): ≥5000 (100VDC)	Ingress protection: IP66
