Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > NC Hydraulic Press Brake Specification

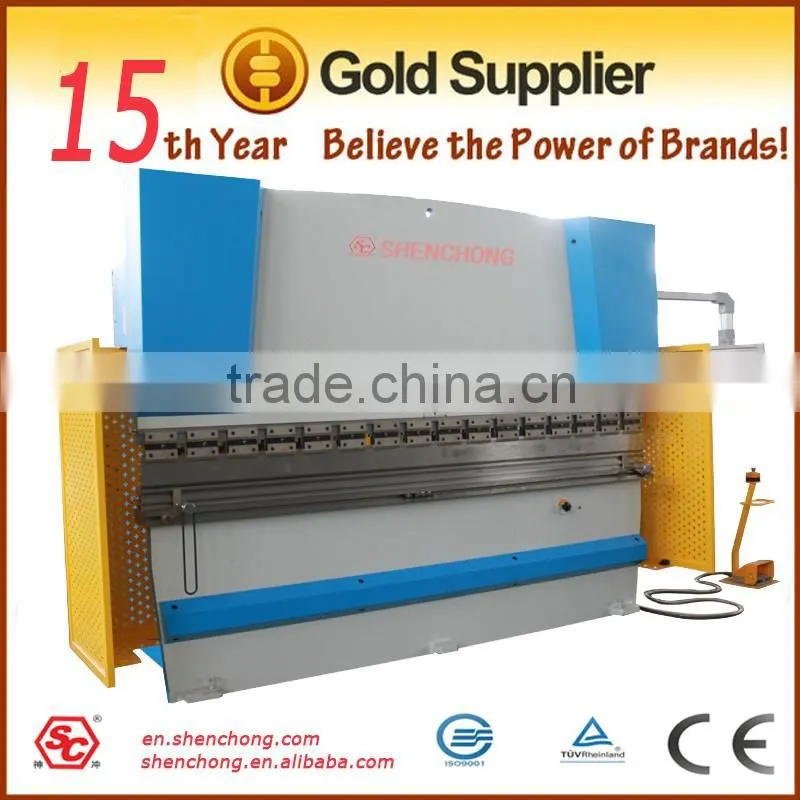

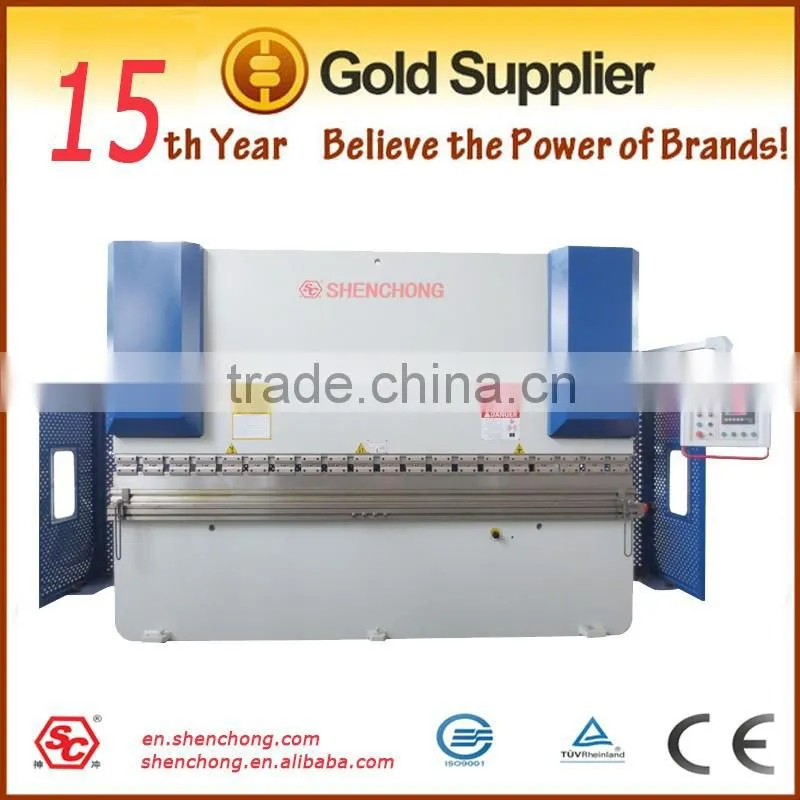

NC Hydraulic Press Brake Specification

Name: NC Hydraulic Press Brake Specification
Brand: shenchong
SKU: 127696345
Availability: InStock

NC Hydraulic Press Brake Specification thumbnail-1

NC Hydraulic Press Brake Specification thumbnail-2

NC Hydraulic Press Brake Specification thumbnail-3

NC Hydraulic Press Brake Specification photo-1

NC Hydraulic Press Brake Specification photo-2

NC Hydraulic Press Brake Specification photo-3

US$ 8,750 - 25,750 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

shenchong

Contact Supplier Request Quote Chat Now

Wuxi Shenchong Forging Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name shenchong

Model Number WC67Y-100T/2500

Machine Type Press Brake

Raw Material Steel Bar

Material / Metal Processed Carbon Steel

Power Hydraulic

Automation Manual

Extra Services Machining

Certification Other, ISO, CE, SGS

After-sales Service Provided Engineers available to service machinery overseas

Details of NC Hydraulic Press Brake

1.HYDRAULIC SYSTEM
It adopts integrated hydraulic control systems which is more reliable and easy for maintenance.The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.This can assure that the cylinder is always full of oil when the slide is moving down at high speed.And can save energy as the oil filling valve can guarantee the slide movement speed.Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
2.SYNCHRO CONTROL SYSTEM
The slide synchro system adopts torsion bar synchro system with very simple structure but very high accuracy.This system is very easy for maintenance.The slides movement is always parallel to the working table.And this will make the movement effect balanced during operation.

Detailed Images:

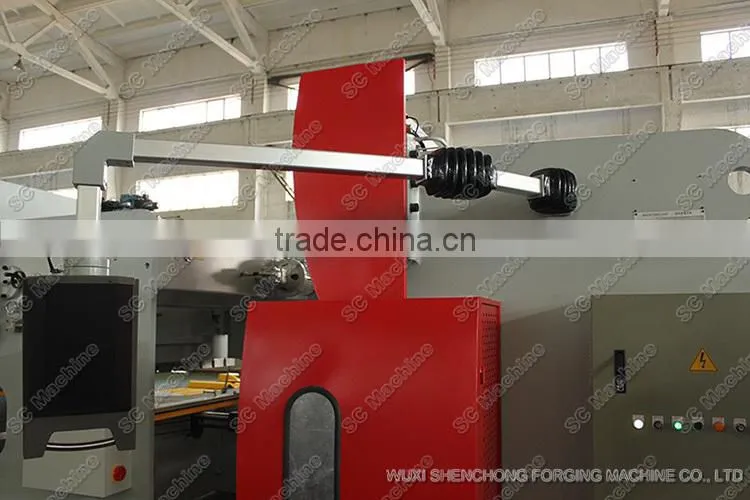

1.Double joint box for convenient operation;

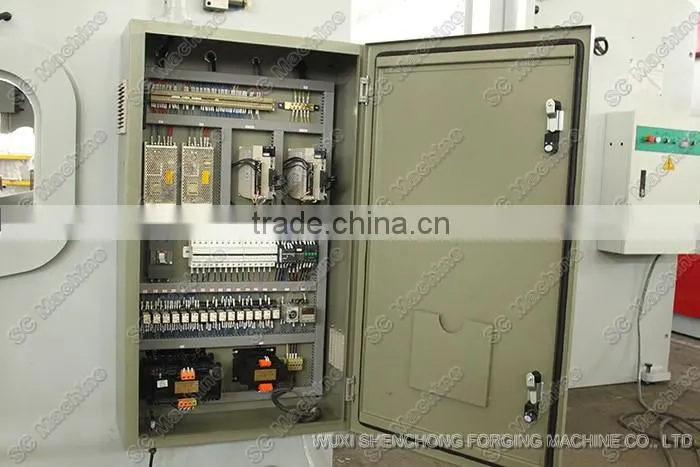

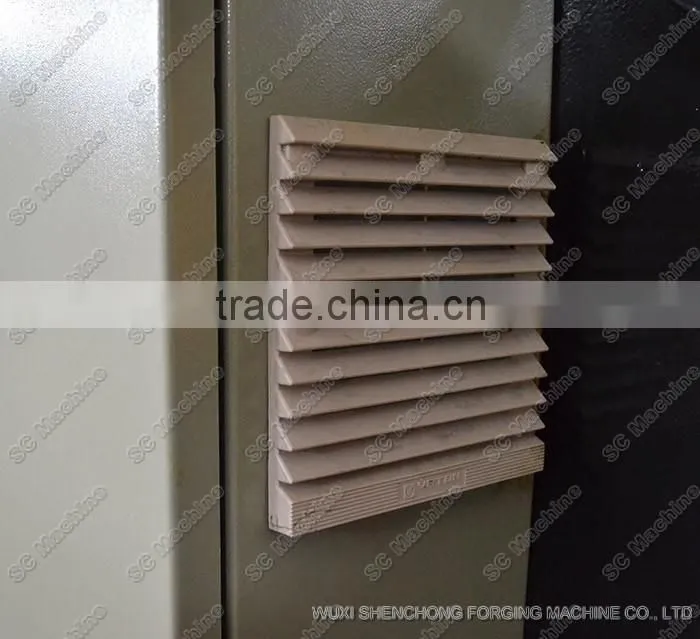

2. Considerate design for theElectricalcabinet: Dust proof, heat radiating;

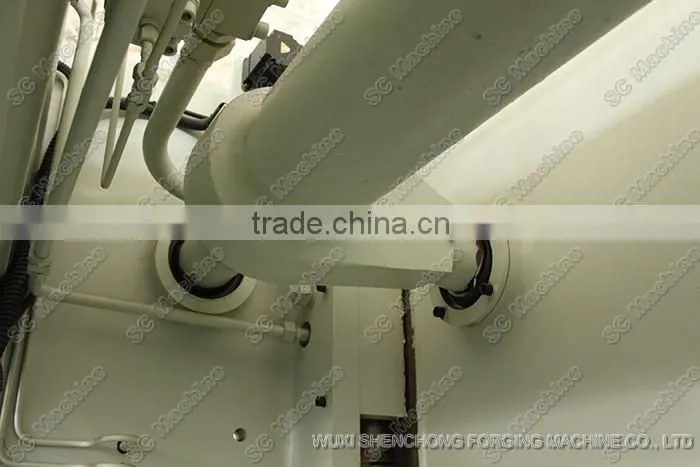

3. Forcing-torsion shaft maintains the synchronization of both cylinders with high precision;

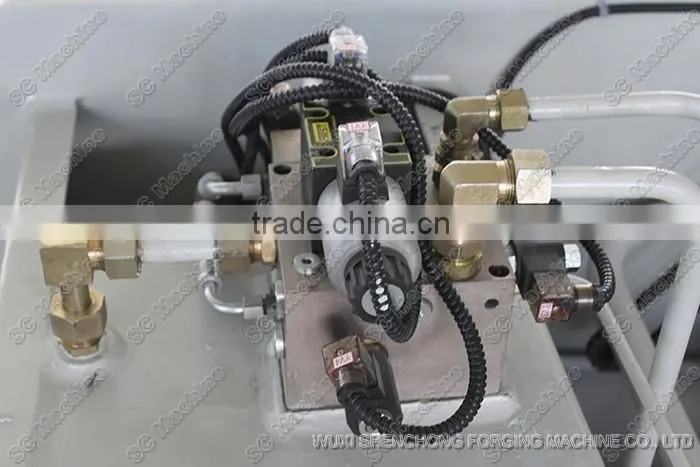

4. Imported FIRST VALVE BLOCK make sure of steady hydraulic system;

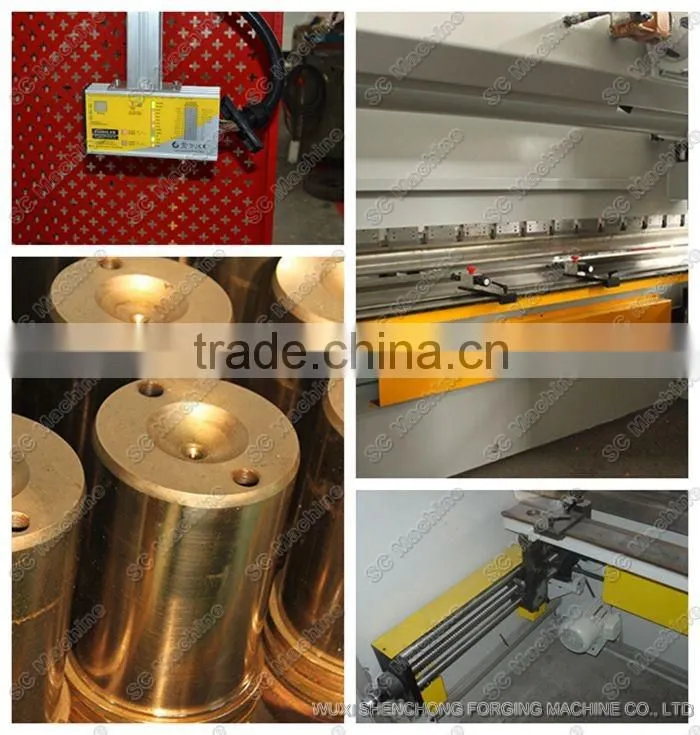

5.Other Details

Technical Parameters:

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kw)	Dimensions (L × W × H) (mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
200/4000	2000	4000	3200	350	240	460	11	4550×1815×2850
200/5000	2000	5000	3800	350	240	460	11	5100×1715×3020
200/6000	2000	6000	4500	350	240	460	11	6100×1715×3120
250/3200	2500	3200	2600	400	240	525	11	3750×2010×2850
250/4000	2500	4000	3200	400	240	525	11	4550×2010×3010
250/5000	2500	5000	3800	400	240	525	11	5100×1890×3190
250/6000	2500	6000	4500	400	240	525	11	6100×1890×3350
300/3200	3000	3200	2600	400	250	545	15	3740×2100×3235
300/4000	3000	4000	3200	400	250	545	15	4340×2100×3300
300/5000	3000	5000	3800	400	250	545	15	5100×2100×3430
300/6000	3000	6000	4500	400	250	545	15	6100×2100×3490
