WE67K-160T/3200 High Precision Cnc Hydraulic Press Brake Machine
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sheet Metal Bending Machine, Hydraulic Press Brake3000mm(3m) Steel Bending MachineUS$ 10,000 - 100,000MOQ: 1 Set -
Bending Sheet MachineUS$ 20,000 - 100,000MOQ: 1 Set
-
V1 New Press Brake & Guillotine!! Sheet Metal Folder & Shear With 12months WarrantyUS$ 10,000 - 100,000MOQ: 1 Set
-
WE67K-200T/4000 Aluminium Brake Press ShenchongUS$ 20,000 - 50,000MOQ: 1 Set
-
Mechanical and Hydraulic Three Roller Rolling Machine,bending Machine,folding MachineUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
shenchong
Model Number
WE67K-160T/3200
Voltage
customize
Power(W)
customize
Certification
CE, SGS, ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas

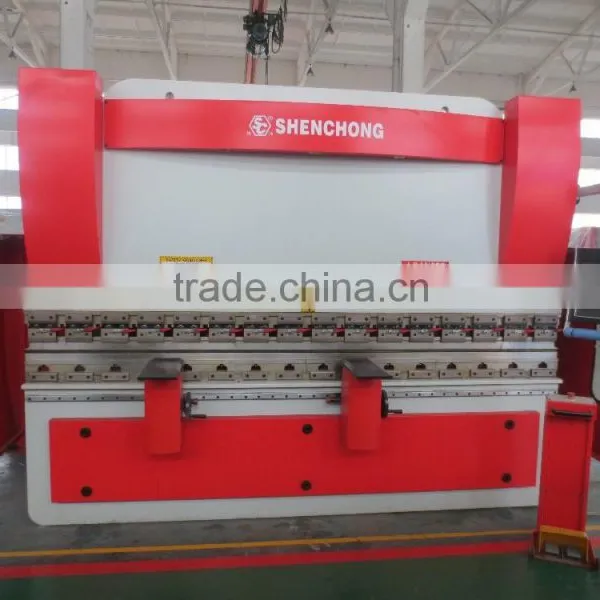

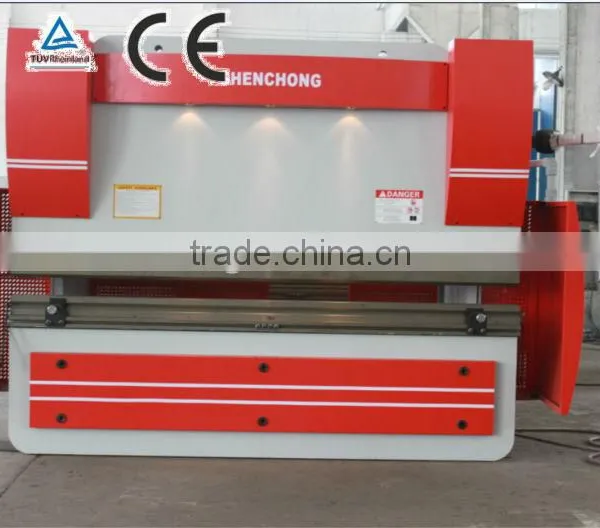

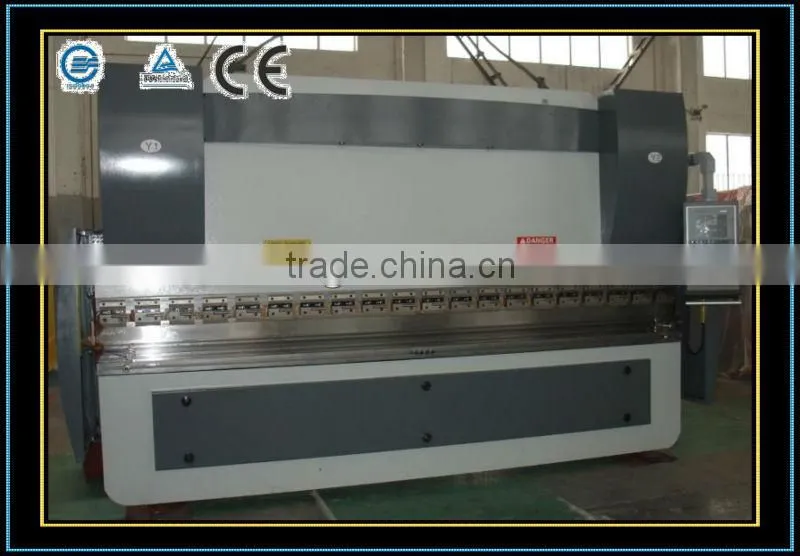

WE67K-160T/3200 high precision cnc hydraulic press brake machine
Advanced configuration, high precision and high efficiency CNC hydraulic press brake.
Equipped with Delem or Cybelec control system, Italian raster displayer, Germany Hoerbiger hydraulic system, Japanese servomotor are all importing products.
Adopting reliable electro-hydraulic electro-hydraulic proportional synchronization servo and its parallelism precision could reach 0.01mm. it can support eccectric load.
Ram stroke (Y1, Y2) and back gauge(X, R, Z)are controlled by controller.
Back gauge is adopted ball screw and rolling guide way, the repeat positioning precision of X is very high and act smartly.
A set of standard tools is provided with each machine.
ABB main motor and Japanese sumitomo pump are optional.
The machine enjoys high accuracy and high strength and good rigidity.
Technical data
| Models | Nominal Pressure (KN) | Length of Table (mm) | Distance Between Housings(mm) | Throat Depth (mm) | Stroke(mm) | Open Height (mm) | Main Motor (KW) | Weight (KG) | Overall Dimensions (L×W×H) (mm) |
| WE67K-63/2500 | 630 | 2500 | 2000 | 320 | 150 | 400 | 5.5 | 5000 | 2825×1650×2350 |
| WE67K-63/3200 | 630 | 3200 | 2700 | 320 | 150 | 400 | 5.5 | 5500 | 3800×1650×2450 |
| WE67K-100/3200 | 1000 | 3200 | 2700 | 400 | 180 | 460 | 7.5 | 7500 | 3810×1750×2480 |
| WE67K-125/3200 | 1250 | 3200 | 2700 | 400 | 180 | 460 | 7.5 | 8200 | 3820×1800×2500 |
| WE67K-125/4000 | 1250 | 4000 | 3200 | 400 | 180 | 460 | 7.5 | 9000 | 4600×1800×2560 |
| WE67K-160/3200 | 1600 | 3200 | 2700 | 400 | 180 | 460 | 11 | 10800 | 3830×2030×2560 |
| WE67K-160/4000 | 1600 | 4000 | 3200 | 400 | 180 | 460 | 11 | 11500 | 4610×2030×2700 |
| WE67K-200/4000 | 2000 | 4000 | 3200 | 400 | 180 | 460 | 11 | 13800 | 4620×2050×2750 |
| WE67K-200/6000 | 2000 | 6000 | 4800 | 400 | 180 | 480 | 11 | 18500 | 6050×2300×3200 |
| WE67K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 480 | 15 | 15000 | 3900×2100×2650 |
| WE67K-250/4000 | 2500 | 4000 | 3200 | 400 | 200 | 480 | 15 | 16000 | 4620×2100×2800 |
| WE67K-250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 560 | 15 | 18500 | 5088×2570×3100 |
| WE67K-250/6000 | 2500 | 6000 | 4800 | 400 | 250 | 560 | 15 | 20000 | 6080×2570×3300 |
| WE67K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 560 | 22 | 19000 | 4080×2300×3200 |
| WE67K-300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 560 | 22 | 23000 | 5100×2400×3200 |
| WE67K-300/6000 | 3000 | 6000 | 4800 | 400 | 250 | 560 | 22 | 27000 | 6150×2500×3600 |
| WE67K-400/4000 | 4000 | 4000 | 3200 | 400 | 320 | 630 | 30 | 27000 | 4100×2750×3600 |
| WE67K-400/5000 | 4000 | 5000 | 4000 | 400 | 320 | 630 | 30 | 32000 | 5100×2750×3800 |
| WE67K-400/6000 | 4000 | 6000 | 4800 | 400 | 320 | 630 | 30 | 38000 | 6150×2750×4000 |
| WE67K-500/4000 | 5000 | 4000 | 3200 | 400 | 320 | 630 | 37 | 40000 | 4150×3500×3980 |
| WE67K-500/5000 | 5000 | 5000 | 4000 | 400 | 320 | 630 | 37 | 45000 | 5150×3600×4700 |
| WE67K-500/6000 | 5000 | 6000 | 4800 | 400 | 320 | 630 | 37 | 50000 | 6150×3617×5200 |
| WE67K-600/5000 | 6000 | 5000 | 4000 | 500 | 320 | 630 | 45 | 62000 | 5150×3800×5200 |
| WE67K-600/6000 | 6000 | 6000 | 4800 | 500 | 320 | 630 | 45 | 68000 | 6150×4435×5500 |
| WE67K-800/5000 | 8000 | 5000 | 4000 | 500 | 350 | 800 | 55 | 75000 | 5160×4500×5300 |
| WE67K-800/6000 | 8000 | 6000 | 4800 | 500 | 350 | 800 | 55 | 85000 | 6200×4915×5800 |
| WE67K-1000/6000 | 10000 | 6000 | 4880 | 500 | 400 | 800 | 55 | 105000 | 6500×4935×6300 |
| Note:1.Your special requirement can be met; | |||||||||
| 2.No notice if any change of the above statistics made. | |||||||||
Certifications:
Workshops:
Working procedures:
Customers in our factory:
Our exhibitions:
Loading photos:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
10,000-30,000 square meters
Total Employees
201 - 300 People
