Bending Sheet Machine
US$ 20,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
V1 New Press Brake & Guillotine!! Sheet Metal Folder & Shear With 12months WarrantyUS$ 10,000 - 100,000MOQ: 1 Set -
WE67K-200T/4000 Aluminium Brake Press ShenchongUS$ 20,000 - 50,000MOQ: 1 Set
-
Mechanical and Hydraulic Three Roller Rolling Machine,bending Machine,folding MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
W12-16X2000 HYDRAULIC Four Roller Rolling Machine,bending Machine,folding Machine,4R HSSUS$ 10,000 - 100,000MOQ: 1 Set
-
Hydraulic Metal Plate Rolling Machine(4R HSS, 3R HSS)US$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
SC
Model Number
WC67Y-160/4000
Machine Type
Press Brake
Raw Material
Other, steel plates
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Automatic
Extra Services
Machining
Certification
Other, ISO, CE , SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
bending sheet machineISO, SGS & CE certification
Professional factory
High precision
Easy operate

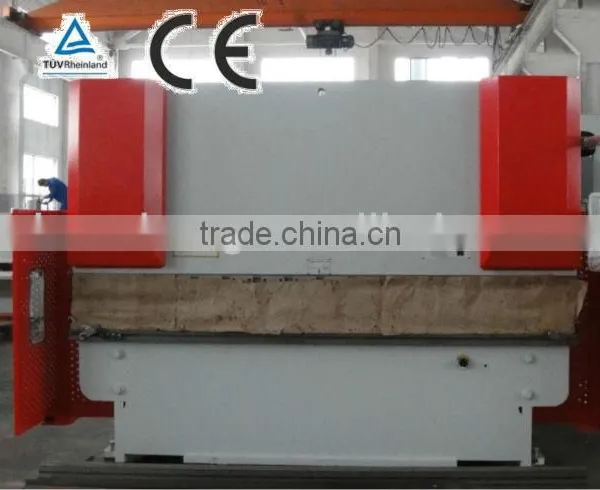

METAL STEEL BENDING MACHINE WC67Y-160T/4000
The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
Mechanical stop nuts ensure stable and reliable positioning accuracy.
Torque shaft is designed of rigidity with high solidness, assuring the synchronized movements of ram.
The ram’s stroke and the back gauge’s position can be speedily adjusted by motor and fine adjusted by handle.
Technical data
| Models | Nominal Pressure (KN) | Length of Table (mm) | Distance Between Housings(mm) | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Main Motor (KW) | Weight (T) | Overall Dimensions (L×W×H) (mm) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 100 | 335 | 4 | 2.8 | 2100×1110×1990 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 100 | 335 | 4 | 3.5 | 2600×1110×1990 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 100 | 335 | 5.5 | 3.8 | 2100×1285×2185 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 100 | 335 | 5.5 | 4.2 | 2600×1285×2185 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 100 | 335 | 7.5 | 5.2 | 3300×1290×2300 |
| 100/2500 | 1000 | 2500 | 2000 | 320 | 100 | 335 | 7.5 | 6.3 | 2600×1470×2510 |
| 100/3200 | 1000 | 3200 | 2600 | 320 | 100 | 335 | 7.5 | 7 | 3300×1470×2520 |
| 100/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 7.5 | 8.8 | 4100×1470×2520 |
| 100/5000 | 1000 | 5000 | 4000 | 320 | 150 | 400 | 7.5 | 11.8 | 5100×1470×2750 |
| 125/2500 | 1250 | 2500 | 2000 | 320 | 150 | 400 | 7.5 | 7.5 | 2600×1470×2510 |
| 125/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 7.5 | 8.2 | 3300×1470×2520 |
| 125/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 7.5 | 9 | 4100×1470×2520 |
| 125/5000 | 1250 | 5000 | 4000 | 320 | 150 | 400 | 7.5 | 12.5 | 5100×1470×2800 |
| 125/6000 | 1250 | 6000 | 4500 | 320 | 150 | 400 | 7.5 | 16 | 6100×1700×2700 |
| 160/2500 | 1600 | 2500 | 2000 | 320 | 200 | 455 | 11 | 8.5 | 2600×1500×2630 |
| 160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 455 | 11 | 10 | 3300×1500×2730 |
| 160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 455 | 11 | 12 | 4100×1500×2830 |
| 160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 455 | 11 | 15.5 | 5100×1500×2960 |
| 160/6000 | 1600 | 6000 | 4500 | 320 | 200 | 455 | 11 | 19 | 6100×1790×2725 |
| 200/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 13 | 3300×1700×2730 |
| 200/4000 | 2000 | 4000 | 3200 | 320 | 200 | 460 | 11 | 14 | 4100×1700×2830 |
| 200/5000 | 2000 | 5000 | 3800 | 320 | 200 | 460 | 11 | 20 | 5300×1930×3000 |
| 200/6000 | 2000 | 6000 | 4500 | 320 | 200 | 460 | 11 | 25 | 6300×2000×3100 |
| 250/3200 | 2500 | 3200 | 2600 | 320 | 250 | 525 | 15 | 17 | 3300×1850×3000 |
| 250/4000 | 2500 | 4000 | 3200 | 320 | 250 | 525 | 15 | 18 | 4100×1850×3100 |
| 250/5000 | 2500 | 5000 | 2800 | 400 | 250 | 525 | 15 | 25 | 5300×1850×3100 |
| 250/6000 | 2500 | 6000 | 4500 | 400 | 250 | 525 | 15 | 32 | 6300×2100×3170 |
| 300/3200 | 3000 | 3200 | 2600 | 400 | 250 | 555 | 22 | 21 | 3300×2050×3200 |
| 300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 555 | 22 | 24 | 4300×2050×3300 |
| 300/5000 | 3000 | 5000 | 3800 | 400 | 250 | 555 | 22 | 29 | 5300×2300×3500 |
| 300/6000 | 3000 | 6000 | 4500 | 400 | 250 | 555 | 22 | 35 | 6300×2300×3865 |
| Note:1.Your special requirement can be met. | |||||||||
| 2.No notice if any change of the above statistics made. | |||||||||
Certifications :
Working procedures:

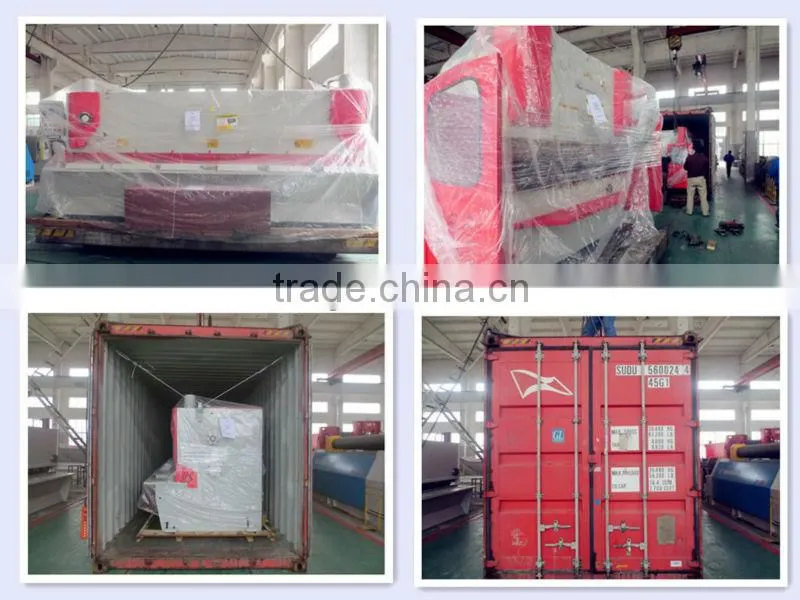

Loading photos:
