Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000

Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 thumbnail-1
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 thumbnail-2
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 thumbnail-3
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 thumbnail-4
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 photo-1
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 photo-2
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 photo-3
Hydraulic Manual Press Brake, Hydraulic Bending Machine WC67K-200/4000 photo-4
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
shenchong
Contact Supplier Request Quote Chat Now
Wuxi Shenchong Forging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name shenchong
Model Number WC67K-200/4000
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Carbon Steel
Power Hydraulic
Automation Manual
Certification Other, CE, ISO, SGS, CE
After-sales Service Provided Engineers available to service machinery overseas

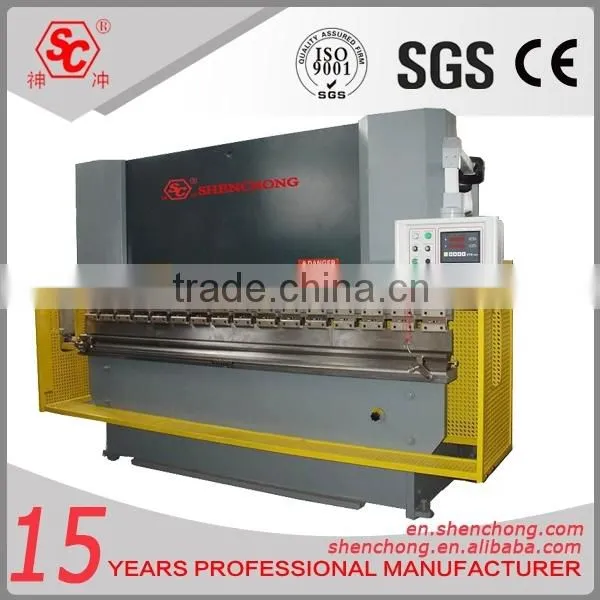

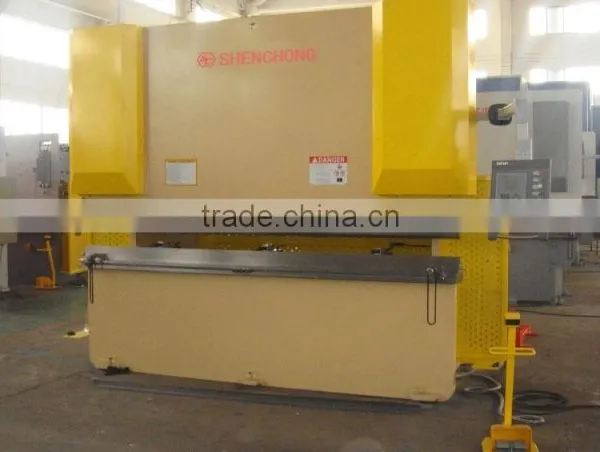

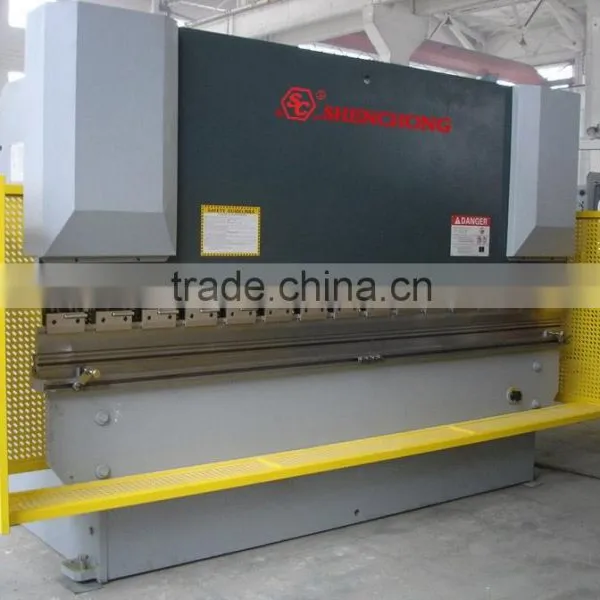

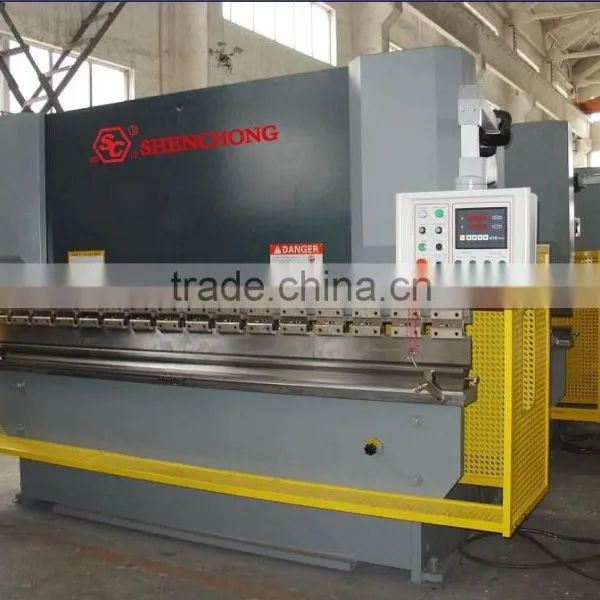

DETAILS OF WE67K-300T/4000 CNC press brake bending machine



Advanced configuration, high precision and high efficiency CNC hydraulic press brake.

Equipped with Delem or Cybelec control system, Italian raster displayer, Germany Hoerbiger hydraulic system, Japanese servomotor are all importing products.

Adopting reliable electro-hydraulic electro-hydraulic proportional synchronization servo and its parallelism precision could reach 0.01mm. it can support eccectric load.

Ram stroke (Y1, Y2) and back gauge(X, R, Z)are controlled by controller.

Back gauge is adopted ball screw and rolling guide way, the repeat positioning precision of X is very high and act smartly.

A set of standard tools is provided with each machine.

ABB main motor and Japanese sumitomo pump are optional.

The machine enjoys high accuracy and high strength and good rigidity.



Why SC(SHENCHONG)?



1)Strict quality management system;



2)Decades of experience stand behind our quality tools;
3)Customer specific consulting and fabrication;
4)High quality with various specifications;



5)Offer solutions for your application needs;



6)Excellent after-sales service;





Technical data

Models Nominal Pressure (KN)      Length of Table (mm) Distance Between Housings(mm) Throat Depth (mm) Stroke(mm)  Open Height (mm) Main Motor (KW) Weight (KG) Overall Dimensions (L×W×H) (mm)
WE67K-63/2500 630 2500 2000 320 150 400 5.5 5000 2825×1650×2350
WE67K-63/3200 630 3200 2700 320 150 400 5.5 5500 3800×1650×2450
WE67K-100/3200 1000 3200 2700 400 180 460 7.5 7500 3810×1750×2480
WE67K-125/3200 1250 3200 2700 400 180 460 7.5 8200 3820×1800×2500
WE67K-125/4000 1250 4000 3200 400 180 460 7.5 9000 4600×1800×2560
WE67K-160/3200 1600 3200 2700 400 180 460 11 10800 3830×2030×2560
WE67K-160/4000 1600 4000 3200 400 180 460 11 11500 4610×2030×2700
WE67K-200/4000 2000 4000 3200 400 180 460 11 13800 4620×2050×2750
WE67K-200/6000 2000 6000 4800 400 180 480 11 18500 6050×2300×3200
WE67K-250/3200 2500 3200 2700 400 480 15 15000 3900×2100×2650
WE67K-250/4000 2500 4000 3200 400 200 480 15 16000 4620×2100×2800
WE67K-250/5000 2500 5000 4000 400 250 560 15 18500 5088×2570×3100
WE67K-250/6000 2500 6000 4800 400 250 560 15 20000 6080×2570×3300
WE67K-300/4000 3000 4000 3200 400 250 560 22 19000 4080×2300×3200
WE67K-300/5000 3000 5000 4000 400 250 560 22 23000 5100×2400×3200
WE67K-300/6000 3000 6000 4800 400 250 560 22 27000 6150×2500×3600
WE67K-400/4000 4000 4000 3200 400 320 630 30 27000 4100×2750×3600
WE67K-400/5000 4000 5000 4000 400 320 630 30 32000 5100×2750×3800
WE67K-400/6000 4000 6000 4800 400 320 630 30 38000 6150×2750×4000
WE67K-500/4000 5000 4000 3200 400 320 630 37 40000 4150×3500×3980
WE67K-500/5000 5000 5000 4000 400 320 630 37 45000 5150×3600&times4700
WE67K-500/6000 5000 6000 4800 400 320 630 37 50000 6150×3617×5200
WE67K-600/5000 6000 5000 4000 500 320 630 45 62000 5150×3800×5200
WE67K-600/6000 6000 6000 4800 500 320 630 45 68000 6150×4435×5500
WE67K-800/5000 8000 5000 4000 500 350 800 55 75000 5160×4500×5300
WE67K-800/6000 8000 6000 4800 500 350 800 55 85000 6200×4915×5800
WE67K-1000/6000 10000 6000 4880 500 400 800 55 105000 6500×4935×6300
Note:1.Your special requirement can be met;
     2.No notice if any change of the above statistics made.

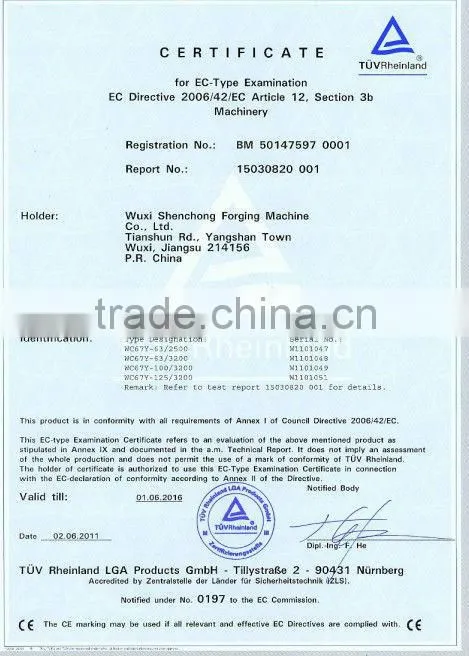

Shenchong Certifications:

 hydraulic manual press brake, hydraulic bending machine WC67K-200/4000

Machines Procedures:

hydraulic manual press brake, hydraulic bending machine WC67K-200/4000

Shenchong Workshops:

hydraulic manual press brake, hydraulic bending machine WC67K-200/4000



Customers in Shenchong:

hydraulic manual press brake, hydraulic bending machine WC67K-200/4000
