KR Series Cam Follower Curve Needle Roller Bearing
US$ 0.5 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHG
Bore Size:
6, 30
Outside Diameter:
12, 90
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KZK Radial Needle Roller and Cage Assembly Needle BearingUS$ 0.5 - 10MOQ: 100 Pieces -
RNAV Entity Bushed Needle Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
RNAV Entity Bushed Needle Roller Without Inner BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
HK Series Drawn Cup Needle Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
HK Series Drawn Cup Needle BearingUS$ 0.5 - 10MOQ: 100 Pieces
Brand Name
SHG
Bore Size
6, 30
Outside Diameter
12, 90
Model Number
KR series
Precision Rating
P0,P4,P5,P6
Seals Type
Open,sealed
Number of Row
Single Row
Place of Origin
Shanghai, China
Product Description

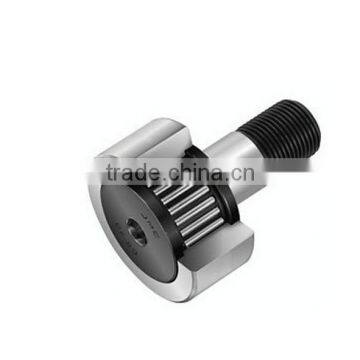

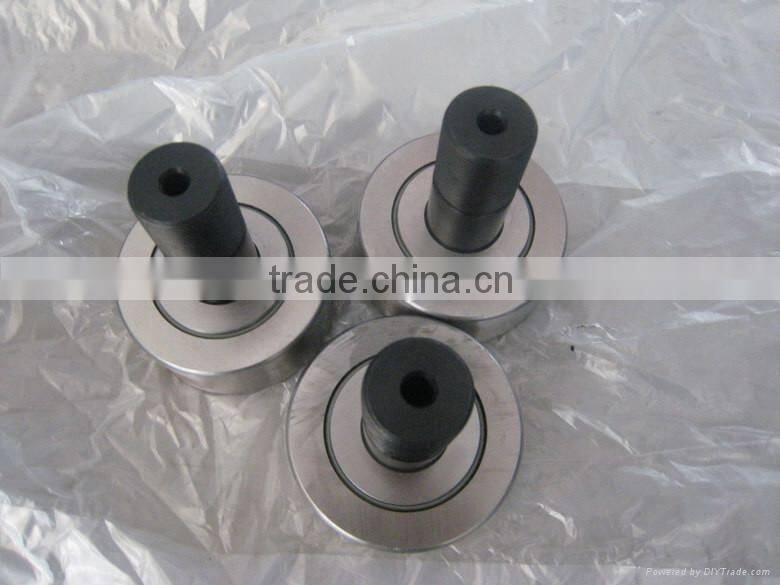

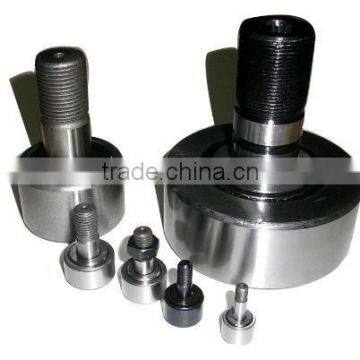

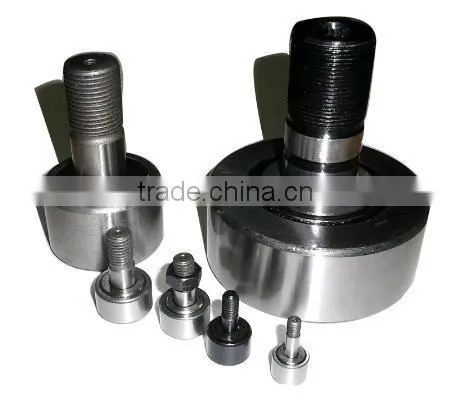

KR Series Cam Follower Curve Needle Roller Bearing.
| Shaft Diameter |
Bearing Designation |
BoundaryDimensions |
M Nm |
BasicLoadRating |
|
|||||||||||||||||||
|
With eccentric |
D | d | C | ra | B | B1 | B2 | G | G1 | M | Mn | C1 | d2 | d1 | B3 | e | Dynamic |
Static |
As yoke type track rollers |
|||||
| Cw | Cow | |||||||||||||||||||||||
| mm | mm | min | mm | N | rpm | |||||||||||||||||||
| 16 | KR16 | KRE16 | 16 | 6 | 11 | 0.15 | 28 | 16 | M6 | 8 | 45) | 0.6 | 12 | 9 | 7 | 0.5 | 3 | 3800 | 3750 | 3150 | 3300 | 22000 | ||
| KR16PP | KRE16PP | 16 | 6 | 11 | 0.15 | 28 | 16 | M6 | 8 | 45) | 0.6 | 12 | 9 | 7 | 0.5 | 3 | 3800 | 3750 | 3150 | 3300 | 16000 | |||
| KRV16 | KRVE16 | 16 | 6 | 11 | 0.15 | 28 | 16 | M6 | 8 | 45) | 0.6 | 12 | 9 | 7 | 0.5 | 3 | 6400 | 8500 | 4850 | 6500 | 8500 | |||
| KRV16PP | KRVE16PP | 16 | 6 | 11 | 0.15 | 28 | 16 | M6 | 8 | 45) | 0.6 | 12 | 9 | 7 | 0.5 | 3 | 6400 | 8500 | 4850 | 6500 | 8500 | |||
| 19 | KR19 | KRE19 | 19 | 8 | 11 | 0.15 | 32 | 20 | M8 | 10 | 45) | 0.6 | 14 | 11 | 9 | 0.5 | 8 | 4250 | 4600 | 3500 | 3900 | 20000 | ||
| KR19PP | KRE19PP | 19 | 8 | 11 | 0.15 | 32 | 20 | M8 | 10 | 45) | 0.6 | 14 | 11 | 9 | 0.5 | 8 | 4250 | 4600 | 3500 | 3900 | 14000 | |||
| KRV19 | KRVE19 | 19 | 8 | 11 | 0.15 | 32 | 20 | M8 | 10 | 45) | 0.6 | 14 | 11 | 9 | 0.5 | 8 | 7300 | 10800 | 5500 | 7900 | 7000 | |||
| KRV19PP | KRVE19PP | 19 | 8 | 11 | 0.15 | 32 | 20 | M8 | 10 | 45) | 0.6 | 14 | 11 | 9 | 0.5 | 8 | 7300 | 10800 | 5500 | 7900 | 7000 | |||
| 22 | KR22 | KRE22 | 22 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 5700 | 6500 | 4450 | 5200 | 16000 | ||
| KR22PP | KRE22PP | 22 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 5700 | 6500 | 4450 | 5200 | 11000 | |||
| KRV22 | KRVE22 | 22 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 8600 | 12900 | 6300 | 9100 | 6000 | |||
| KRV22PP | KRVE22PP | 22 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 8600 | 12900 | 6300 | 9100 | 6000 | |||
| 26 | KR26 | KRE26 | 26 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 5700 | 6500 | 5100 | 6200 | 16000 | ||
| KR26PP | KRE26PP | 26 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 5700 | 6500 | 5100 | 6200 | 11000 | |||
| KRV26 | KRVE26 | 26 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 8600 | 12900 | 7300 | 11300 | 6000 | |||
| KRV26PP | KRVE26PP | 26 | 10 | 12 | 0.3 | 36 | 23 | M10x1 | 12 | 4 | 0.6 | 17 | 13 | 10 | 0.5 | 15 | 8600 | 12900 | 7300 | 11300 | 6000 | |||
| 30 | KR30 | KRE30 | 30 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 8100 | 9700 | 6800 | 8400 | 11000 |
| KR30PP | KRE30PP | 30 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 8100 | 9700 | 6800 | 8400 | 8300 | |
| KRV30 | KRVE30 | 30 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 12200 | 19000 | 9500 | 14600 | 4500 | |
| KRV30PP | KRVE30PP | 30 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 12200 | 19000 | 9500 | 14600 | 4500 | |
| 32 | KR32 | KRE32 | 32 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 8100 | 9700 | 7100 | 9000 | 11000 |
| KR32PP | KRE32PP | 32 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 8100 | 9700 | 7100 | 9000 | 8300 | |
| KRV32 | KRVE32 | 32 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 12200 | 19000 | 10000 | 15800 | 4500 | |
| KRV32PP | KRVE32PP | 32 | 12 | 14 | 0.6 | 40 | 25 | 6 | M12x1.5 | 13 | 3 | 6 | 0.6 | 23 | 15 | 11 | 0.5 | 22 | 12200 | 19000 | 10000 | 15800 | 4500 | |
| 35 | KR35 | KRE35 | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16x1.5 | 17 | 3 | 6 | 0.8 | 27 | 20 | 14 | 1 | 58 | 12900 | 19000 | 9700 | 14100 | 7000 |
| KR35PP | KRE35PP | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16x1.5 | 17 | 3 | 6 | 0.8 | 27 | 20 | 14 | 1 | 58 | 12900 | 19000 | 9700 | 14100 | 7000 | |
| KRV35 | KRVE35 | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16x1.5 | 17 | 3 | 6 | 0.8 | 27 | 20 | 14 | 1 | 58 | 18300 | 35000 | 12800 | 23000 | 3400 | |
| KRV35PP | KRVE35PP | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16x1.5 | 17 | 3 | 6 | 0.8 | 27 | 20 | 14 | 1 | 58 | 18300 | 35000 | 12800 | 23000 | 3400 | |
| NUKR35 | NUKRE35 | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16x1.5 | 17 | 3 | 6 | 0.8 | 21 | 20 | 14 | 1 | 58 | 23000 | 27000 | 16000 | 18300 | 6500 | |
| 40 | KR40 | KRE40 | 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18x1.5 | 19 | 3 | 6 | 0.8 | 32 | 22 | 16 | 1 | 87 | 14200 | 20400 | 10900 | 15500 | 6000 |
| KR40PP | KRE40PP | 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18x1.5 | 19 | 3 | 6 | 0.8 | 32 | 22 | 16 | 1 | 87 | 14200 | 20400 | 10900 | 15500 | 6000 | |
| KRV40 | KRVE40 | 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18x1.5 | 19 | 3 | 6 | 0.8 | 32 | 22 | 16 | 1 | 87 | 21000 | 39500 | 14800 | 26500 | 2900 | |
| KRV40PP | KRVE40PP | 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18x1.5 | 19 | 3 | 6 | 0.8 | 32 | 22 | 16 | 1 | 87 | 21000 | 39500 | 14800 | 26500 | 2900 | |
| NUKR40 | NUKRE40 | 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18x1.5 | 19 | 3 | 6 | 0.8 | 23 | 22 | 16 | 1 | 87 | 24800 | 31000 | 18500 | 22800 | 5500 | |

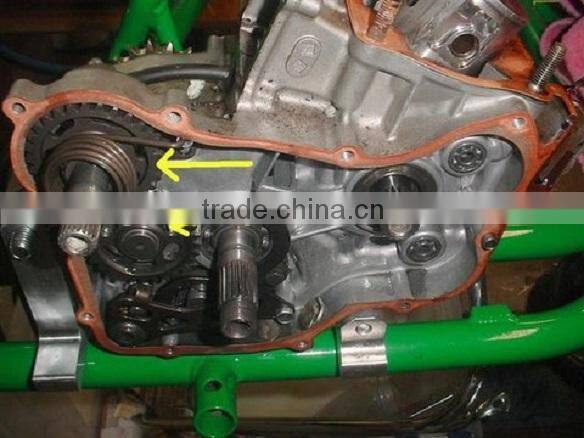

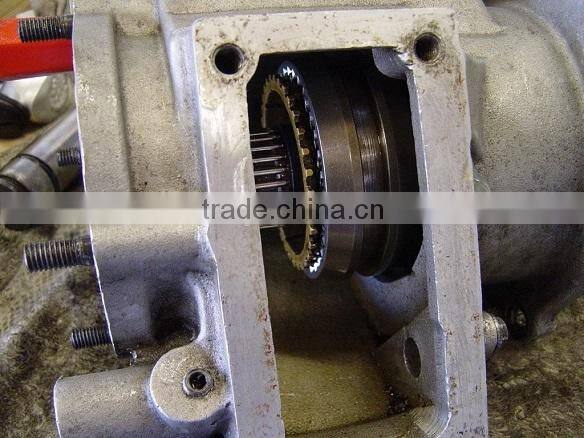

Used for:
Packaging & Shipping
1.Neutral packing (plastic bag/carton/pallet)
2.We can pack according to customer's request.
Our Services
Free samples for customers if available in our stock,freight collect by customers.
For formal bulk order,lead time:within 25-30 days.
Company Information
FAQ
Q:What's the warranty for the products?
A:For the products,we have 2 years warranty.If any quality problems on our side occur in this period,we will compensate for the goods or make a replacement.
Q:Can you give me discounts?
A:Yes,if your order quantity nice ok,we can negotiate.
Q:Will you send me free samples?
A:Yeah,we would love to.
Q:Do you like to serve the client only with big orders?
A:We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us,I believe it for sure.
