HK Series Drawn Cup Needle Bearing
US$ 0.5 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHG
Bore Size:
12, 1620
Outside Diameter:
26, 1860
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HK BK Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces -
RNAV Entity Bushed Needle Roller Bearing With or Without Inner RingUS$ 0.5 - 10MOQ: 100 Pieces
-
KZK Needle BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
KR Series Cam Follower Curve Needle Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
KZK Radial Needle Roller and Cage Assembly Needle BearingUS$ 0.5 - 10MOQ: 100 Pieces
Brand Name
SHG
Bore Size
12, 1620
Outside Diameter
26, 1860
Model Number
HK...RS,2RS,BK...RS
Precision Rating
P0,P2,P4,P5,P6
Seals Type
Open,RS,2RS,R2,Z,2Z,2RZ
Number of Row
Single Row
Place of Origin
Shanghai, China
Product Description

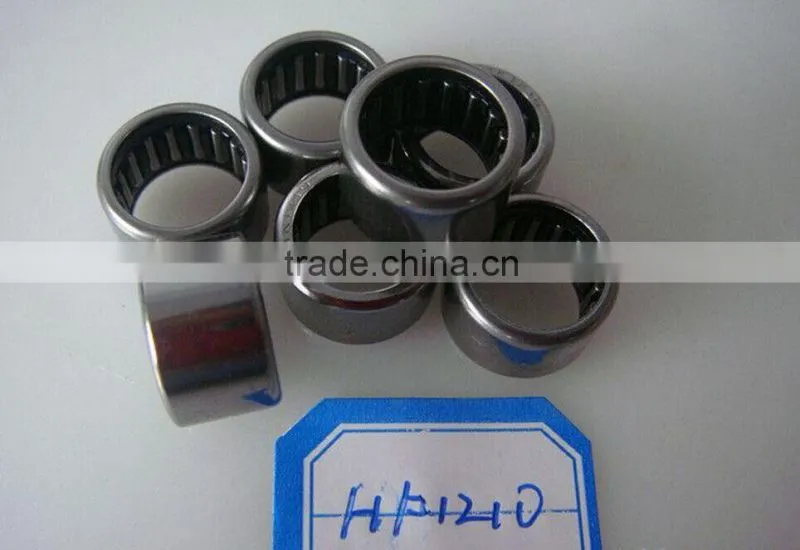

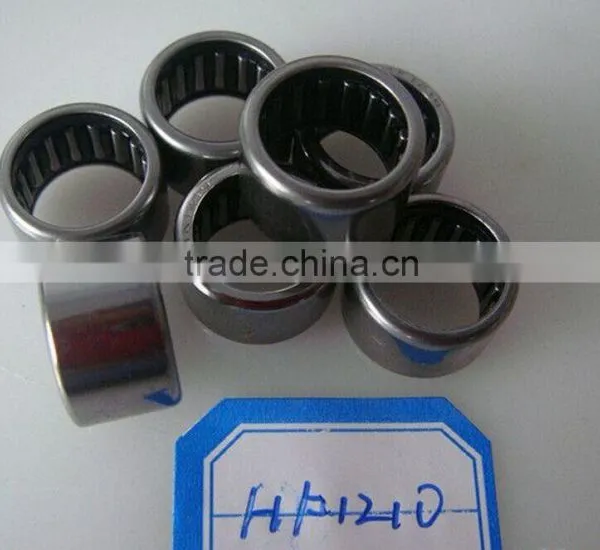

HK Series Drawn Cup Needle Bearing.
| Shaft Diameter |
Bearing Designation |
Mass Approx |
BoundaryDimensions |
BasicLoadRating |
Limiting Speed |
|||
|
CurrentCode |
Fw | D | C |
Dynamic |
Static |
Oil | ||
| mm | g | mm | N | rpm | ||||
| 8 | HK0810 RS | 2.9 | 8 | 12 | 10 | 2250 | 2100 | 19000 |
| HK0812 2RS | 3.5 | 8 | 12 | 12 | 2250 | 2100 | 19000 | |
| 9 | HK09X13X12 RS | 4 | 9 | 13 | 12 | 3800 | 4300 | 19000 |
| 10 | HKl012 RS | 4.2 | 10 | 14 | 12 | 4100 | 5000 | 19000 |
| HKl014 2RS | 5.2 | 10 | 14 | 14 | 4100 | 5000 | 15000 | |
| 12 | HKl214 RS | 10.7 | 12 | 18 | 14 | 6100 | 7000 | 15000 |
| HKl216 2RS | 11.5 | 12 | 18 | 16 | 6100 | 7000 | 12000 | |
| 13 | HKl3X19X12 RS | 8.9 | 13 | 19 | 12 | 6800 | 7580 | 12000 |
| 14 | HKl414 RS | 12 | 14 | 20 | 14 | 6100 | 7500 | 13000 |
| HKl416 2RS | 14 | 14 | 20 | 16 | 6100 | 7500 | 11000 | |
| BKl414 RS | 14.1 | 14 | 20 | 14 | 6100 | 7500 | 11000 | |
| 15 | HKl514 RS | 12.6 | 15 | 21 | 14 | 6800 | 8800 | 11000 |
| HKl516 2RS | 14.3 | 15 | 21 | 16 | 6800 | 8800 | 10000 | |
| BKl514 RS | 14.4 | 15 | 21 | 14 | 6800 | 8800 | 10000 | |
| HKl518 RS | 16 | 15 | 21 | 18 | 9500 | 11400 | 10000 | |
| HKl520 2RS | 18 | 15 | 21 | 20 | 9500 | 11400 | 10000 | |
| 16 | HKl614 RS | 15.1 | 16 | 22 | 14 | 7200 | 9200 | 10000 |
| HKl616 2RS | 15.1 | 16 | 22 | 16 | 7200 | 9200 | 10000 | |
| BKl614 RS | 15.3 | 16 | 22 | 14 | 7200 | 9200 | 10000 | |
| HKl620 2RS | 16.8 | 16 | 22 | 20 | 9900 | 12300 | 10000 | |
| HKl625 2RS | 16 | 22 | 25 | 9900 | 12300 | 10000 | ||
| 17 | HKl7X25X14 RS | 17.7 | 17 | 25 | 14 | 8000 | 9800 | 10000 |
| HKl7X25X15.5 RS | 20 | 17 | 25 | 15.5 | 9320 | 10400 | 13000 | |
| HKl7X25X18 RS | 23.5 | 17 | 25 | 18 | 10500 | 12600 | 13000 | |
| HKl7X25X20 RS | 26.2 | 17 | 25 | 20 | 11600 | 13200 | 13000 | |
| 18 | HKl814 RS | 15.1 | 18 | 24 | 14 | 7800 | 9900 | 13000 |
| HKl816 2RS | 17 | 18 | 24 | 16 | 7800 | 9900 | 9200 | |
| 20 | HK201 2RS | 11.7 | 20 | 26 | 12 | 9500 | 11900 | 9200 |
| HK2016 2RS | 18.8 | 20 | 26 | 16 | 8000 | 10100 | 9000 | |
| HK2018 RS | 21.4 | 20 | 26 | 18 | 12700 | 20100 | 8200 | |
| HK2020 2RS | 23.5 | 20 | 26 | 20 | 12700 | 20100 | 7800 | |
| BK2018 RS | 24.4 | 20 | 26 | 18 | 12700 | 20100 | 7800 | |
| HK20X29X18 RS | 28.8 | 20 | 29 | 18 | 8700 | 9980 | 7800 | |
| 22 | HK2212 RS | 14 | 22 | 28 | 12 | 8310 | 10000 | 9000 |
| HK2214 RS | 18.3 | 22 | 28 | 14 | 9000 | 12400 | 7800 | |
| HK2216 2RS | 20.3 | 22 | 218 | 16 | 9000 | 12400 | 7800 | |
| HK2218 RS | 23.5 | 22 | 28 | 18 | 10400 | 20100 | 7800 | |
| HK2220 2RS | 25.5 | 22 | 28 | 20 | 10400 | 20100 | 7800 | |
| 25 | HK2516 2RS | 27.3 | 25 | 32 | 16 | 9800 | 13200 | 6900 |
| HK2518 RS | 31 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
| HK2520 2RS | 33.1 | 25 | 32 | 20 | 13600 | 20000 | 6900 | |
| BK2518 RS | 35.3 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
| HK2524 2RS | 39.7 | 25 | 32 | 24 | 17900 | 30000 | 6900 | |
| HK2530 2RS | 47.3 | 25 | 32 | 30 | 24500 | 43000 | 6900 | |
| 28 | HK2820 2RS | 36.9 | 28 | 35 | 20 | 11400 | 22500 | 5300 |
| 30 | HK3016 2RS | 28.5 | 30 | 37 | 16 | 10100 | 16200 | 5300 |
| HK3018 RS | 36.6 | 30 | 37 | 18 | 16200 | 26000 | 5300 | |
| HK3020 2RS | 39.1 | 30 | 37 | 20 | 16200 | 26000 | 5300 | |
| HK3024 2RS | 49.7 | 30 | 37 | 24 | 21000 | 38500 | 5300 | |
| 35 | HK3516 2RS | 36.4 | 35 | 42 | 16 | 10100 | 20300 | 4900 |
| HK3518 RS | 37.4 | 35 | 42 | 18 | 16700 | 30500 | 4900 | |
| HK3520 2RS | 41.1 | 35 | 42 | 20 | 16700 | 30500 | 4900 | |
| 40 | HK4016 2RS | 41.2 | 40 | 47 | 16 | 11000 | 21300 | 4200 |
| HK4018 RS | 47.3 | 40 | 47 | 18 | 19000 | 30500 | 4200 | |
| HK4020 2RS | 50.2 | 40 | 47 | 20 | 19000 | 30500 | 4200 | |
| 45 | HK4518 RS | 54.2 | 45 | 52 | 18 | 20300 | 41000 | 3800 |
| HK4520 2RS | 57.4 | 45 | 52 | 20 | 20300 | 41000 | 3800 | |
| 50 | HK5022 RS | 77.2 | 50 | 58 | 24 | 30000 | 61000 | 3200 |
| HK5024 2RS | 84 | 50 | 58 | 24 | 30000 | 61000 | 3200 |

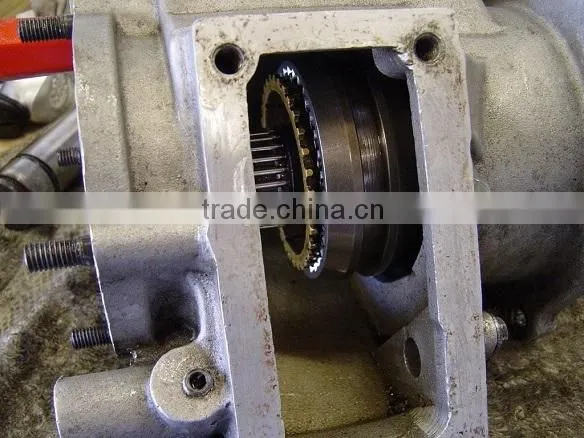

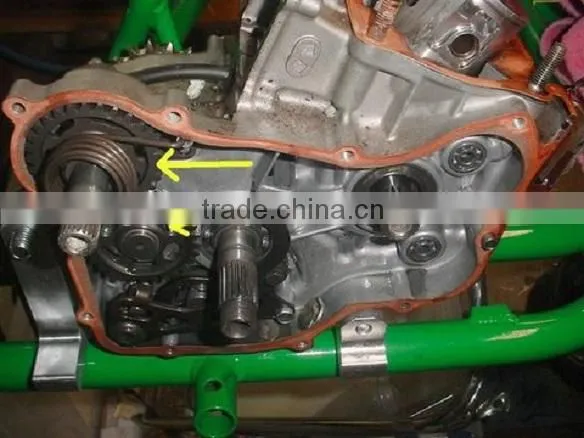

Used for:

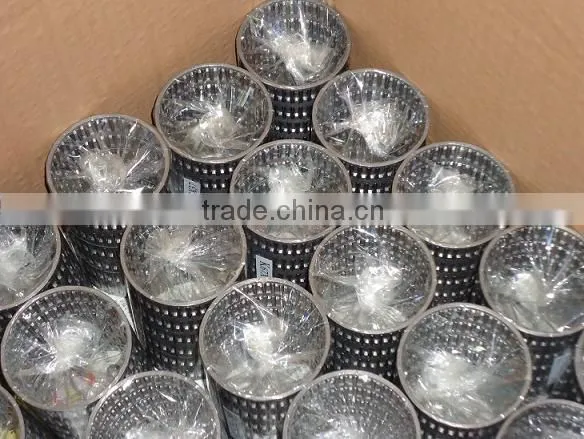

Packaging & Shipping
1.Neutral packing (plastic bag/carton/pallet)
2.We can pack according to customer's request.
Our Services
Free samples for customers if available in our stock,freight collect by customers.
For formal bulk order,lead time:within 25-30 days.

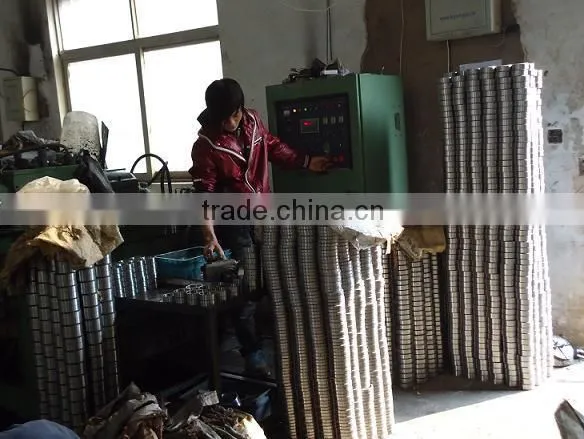

Company Information
FAQ
Q:What's the warranty for the products?
A:For the products,we have 2 years warranty.If any quality problems on our side occur in this period,we will compensate for the goods or make a replacement.
Q:Can you give me discounts?
A:Yes,if your order quantity nice ok,we can negotiate.
Q:Will you send me free samples?
A:Yeah,we would love to.
Q:Do you like to serve the client only with big orders?
A:We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us,I believe it for sure.
