Home > Industrial Equipment & Components > Bearing > Needle Bearing > RNAV Entity Bushed Needle Roller Bearing
RNAV Entity Bushed Needle Roller Bearing
US$ 0.5 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHG
Bore Size:
20, 115
Outside Diameter:
28, 140
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RNAV Entity Bushed Needle Roller Without Inner BearingUS$ 0.5 - 10MOQ: 100 Pieces -
HK Series Drawn Cup Needle Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
HK Series Drawn Cup Needle BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
HK BK Roller BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
RNAV Entity Bushed Needle Roller Bearing With or Without Inner RingUS$ 0.5 - 10MOQ: 100 Pieces
Brand Name
SHG
Bore Size
20, 115
Outside Diameter
28, 140
Model Number
RNAV
Precision Rating
P4,P5
Seals Type
Open,Sealed
Number of Row
Single Row
Place of Origin
Shanghai, China
Product Description

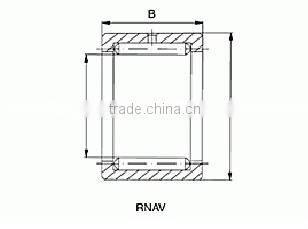

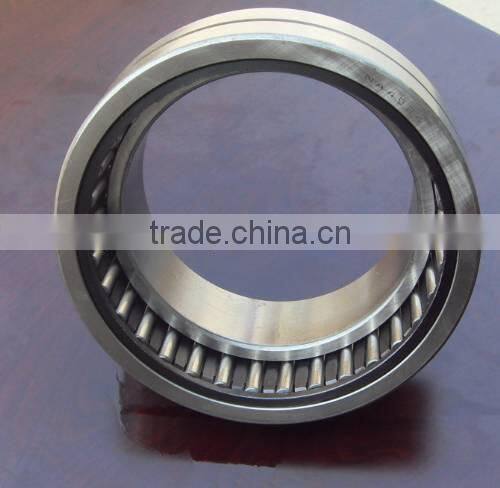

RNAV Entity bushed Needle Roller Bearing.
| Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions |
Basic Load Rating |
Limiting Speed |
||||
| CurrentCode |
OriginalCode |
Fw | D | C |
Dynamic |
Static |
Oil | ||
| mm | g | mm | N | rpm | |||||
| 20 | RNAV4902 | 4084902E | 20 | 28 | 13 | 10800 | 29800 | 4500 | |
| 21.87 | RNAV4002 | 4084102 | 45 | 21.87 | 32 | 17 | |||
| 22 | RNAV4903 | 4084903E | 22 | 30 | 13 | ||||
| 24.3 | RNAV4003 | 4084103 | 62 | 24.3 | 35 | 18 | 17900 | 37900 | 4300 |
| 25 | RNAV4904 | 4084904E | 25 | 37 | 17 | ||||
| 28.7 | RNAV4004 | 4084104 | 114 | 28.7 | 42 | 22 | 28150 | 60900 | 3900 |
| 30 | RNAV4905 | 4084905E | 30 | 42 | 17 | ||||
| 33.5 | RNAV4005 | 4084105 | 129 | 33.5 | 47 | 22 | 33800 | 70800 | 3700 |
| 35 | RNAV4906 | 4084906E | 35 | 47 | 17 | ||||
| 40.1 | RNAV4006 | 4084106 | 193 | 40.1 | 55 | 25 | 49900 | 96500 | 3500 |
| 42 | RNAV4907 | 4084907E | 42 | 55 | 20 | ||||
| 45.9 | RNAV4007 | 4084107 | 259 | 45.9 | 62 | 27 | 47600 | 122800 | 3100 |
| 48 | RNAV4908 | 4084908E | 48 | 62 | 22 | ||||
| 51.6 | RNAV4008 | 4084108 | 304 | 51.6 | 68 | 28 | 49900 | 137900 | 2700 |
| 52 | RNAV4909 | 4084909E | 52 | 68 | 22 | ||||
| 57.4 | RNAV4009 | 4084109 | 390 | 57.4 | 75 | 30 | 52500 | 153500 | 2600 |
| 58 | RNAV4910 | 4084910E | 58 | 72 | 22 | ||||
| 62.1 | RNAV4010 | 4084110 | 426 | 62.1 | 80 | 30 | 55700 | 166000 | 2500 |
| 69.8 | RNAV4011 | 4084111 | 645 | 69.8 | 90 | 35 | 68500 | 225800 | 2300 |
| 68 | RNAV4912 | 4084912E | 68 | 85 | 25 | ||||
| 74.6 | RNAV4012 | 4084112 | 677 | 74.6 | 95 | 35 | 75400 | 239000 | 2100 |
| 80.3 | RNAV4013 | 4084113 | 692 | 80.3 | 100 | 35 | 79500 | 256900 | 1900 |
| 80 | RNAV4914 | 4084914E | 80 | 100 | 30 | ||||
| 88 | RNAV4014 | 4084114 | 950 | 88 | 110 | 40 | 98800 | 354900 | 1700 |
| 93.7 | RNAV4015 | 4084115 | 1000 | 92.7 | 115 | 45 | 101800 | 372900 | 1600 |
| 90 | RNAV4916 | 4084916E | 90 | 110 | 30 | ||||
| 100.3 | RNAV4016 | 4084116 | 1400 | 100.3 | 125 | 45 | 102900 | 373500 | 1500 |
| 104.8 | RNAV4017 | 4084117 | 1540 | 104.8 | 130 | 45 | 103800 | 374800 | 1400 |
| 105 | RNAV4918 | 4084918E | 105 | 125 | 35 | ||||
| 110 | RNAV4919 | 4084919E | 110 | 130 | 35 | ||||
| 115 | RNAV4920 | 4084920E | 115 | 140 | 40 |
Used for:
Packaging & Shipping
1.Neutral packing (plastic bag/carton/pallet)
2.We can pack according to customer's request.
Our Services
Free samples for customers if available in our stock,freight collect by customers.
For formal bulk order,lead time:within 25-30 days.
Company Information
FAQ
Q:What's the warranty for the products?
A:For the products,we have 2 years warranty.If any quality problems on our side occur in this period,we will compensate for the goods or make a replacement.
Q:Can you give me discounts?
A:Yes,if your order quantity nice ok,we can negotiate.
Q:Will you send me free samples?
A:Yeah,we would love to.
Q:Do you like to serve the client only with big orders?
A:We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us,I believe it for sure.
