2 Pole Toggle Switch On-off Quick Connection,12v Waterproof Toggle Switch

• Toggle Switch



   Various types of Toggle ( Rocker switch, electrical switch, mini rocker switch,) are supplied in different sizes and terminals for electronic and electrical products



  SPECIES:



  1	Temperature	-55'C ~ +85'C
  2	Withstand voltage	≥1500VAC/min
  3	Contact resistance	≤30mΩ
  4	Life	10,000 times
  5	Insulation resistance	≥100mΩ
  6	Relative hunmindity	45% - 95%
  7	Rating	10A 125V  6A 250V AC

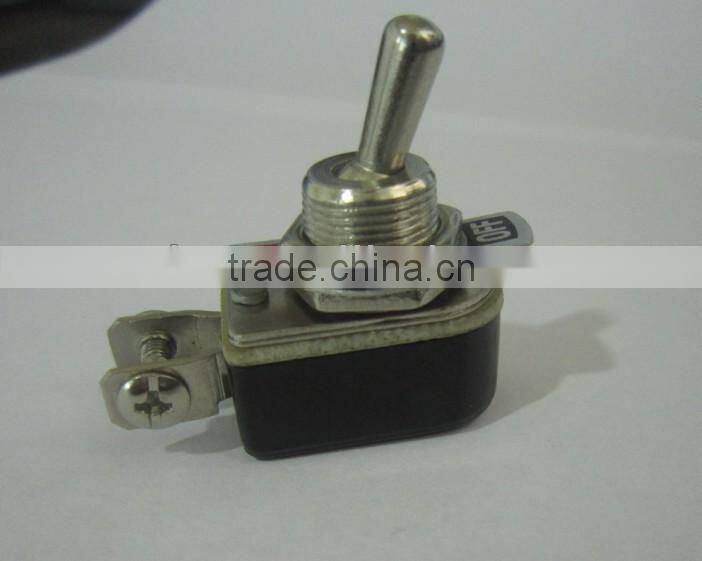

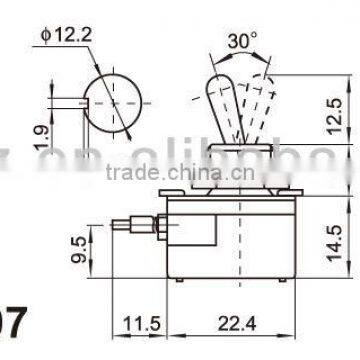

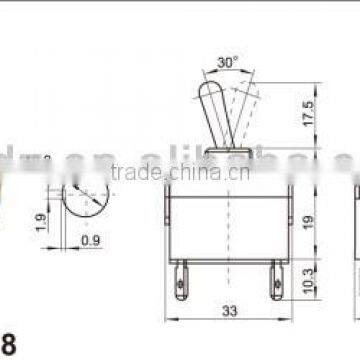

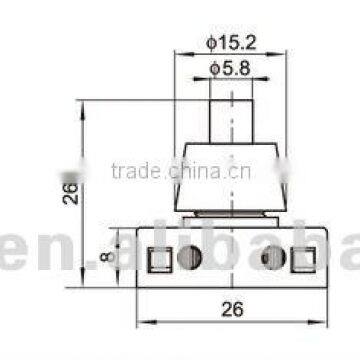

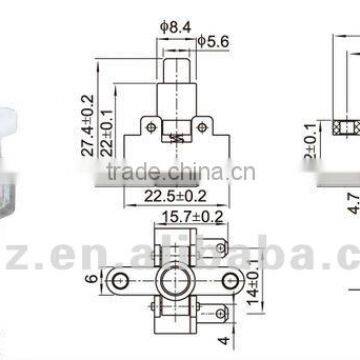

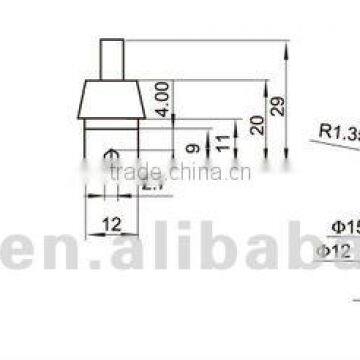

 Drawing of this toggle switch :

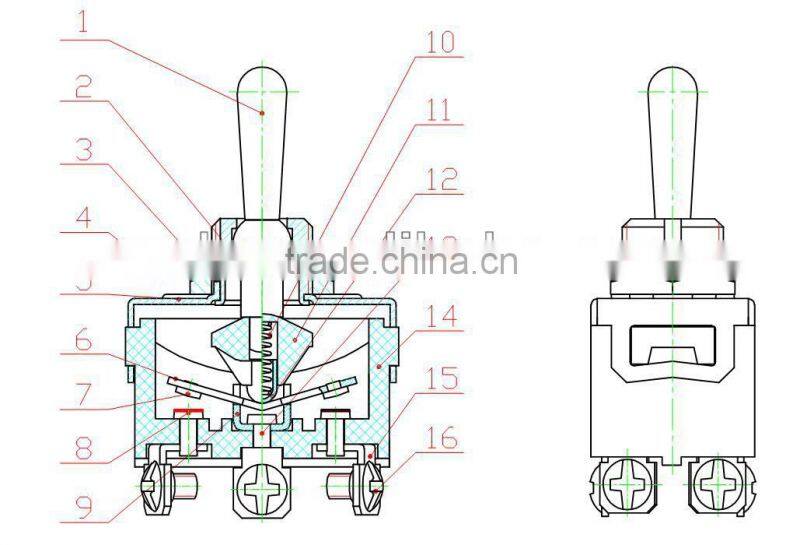

• Toggle switch structure drawings

           .

  16	Screws	6	Steel	LQ235
  15	Terminal	6	Brass	H62
  14	Case	1	Bakelite	PF2C3-431J
  13	Rivet	2	Copper	T3
  12	Plunger	2	PC	L-1250
  11	Plunger Holder	1	PC	L-1250
  10	Spring	2	Steel	T9A
  9	Bracket	2	Brass	H62
  8	Rivet	4	Copper	2#
  7	Contactor	4	AgSnO2	2#
  6	Movable Terminal	2	Brass	H62
  5	Housing	1	Steel plate	08F
  4	Nameplate	1	Aluminium	A1-1
  3	Nut	2	Steel plate	08F
  2	Bushing	1	Steel	LQ235
  1	Handle	1	Steel	LQ235
  No	Name	Number	Material	Remark



• Application

         They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

• Others

             1.Heavy duty type,panel mounting.
          2.Can used with waterproof cover or safety guard.
          3.Free sample is available !

          4.If you need any parts, please kindly send us your drawings or sample for quotation
