Toggle Switch:
Various types of Toggle (Toggle switch, electrical switch, mini toggle switch,) are supplied in different sizes and terminals for electronic and electrical products
Details of the toggle switch:
| 1 | Temperature | -55'C ~ +85'C |
| 2 | Withstand voltage | ≥1500VAC/min |
| 3 | Contact resistance | ≤30mΩ |
| 4 | Life | 10,000 times |
| 5 | Insulation resistance | ≥100mΩ |
| 6 | Relative hunmindity | 45% - 95% |
| 7 | Rating | 15A 125V 10A 250V AC |

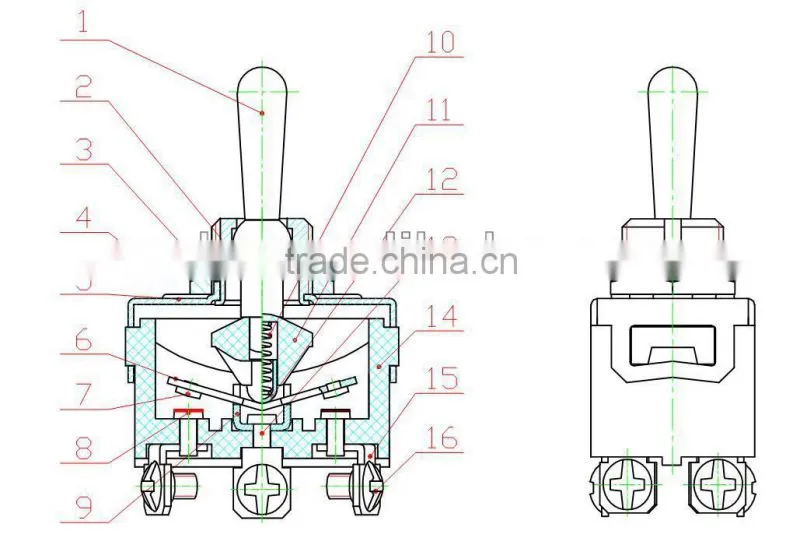

Drawing picture of the toggle switch :
-
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
